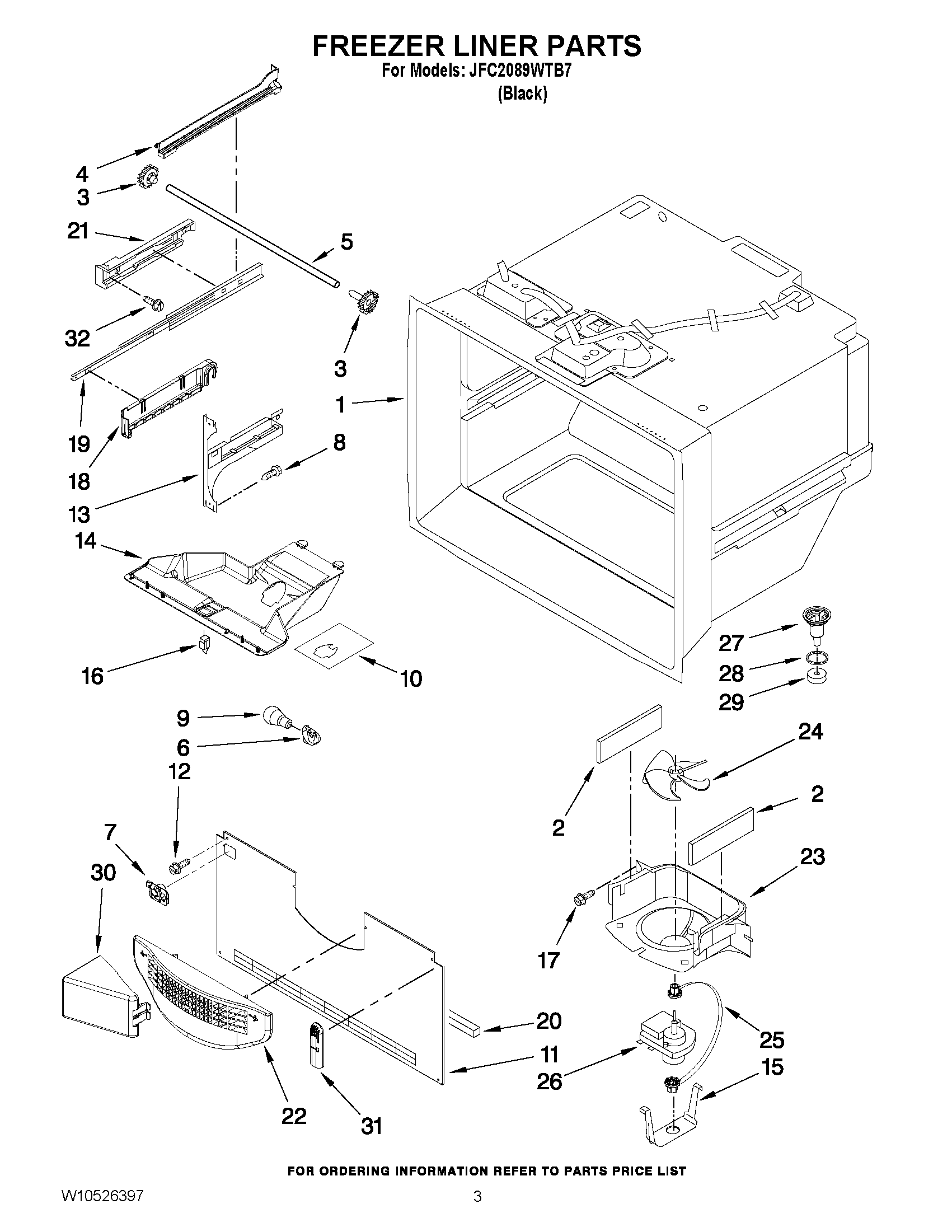

JFC2089WTB7 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY W10284696
4	MAY W10284697
5	SHAFT
6	W11447232 Whirlpool Refrigerator Socket
7	MAY 12932103
8	Screw (8)
9	MAY W10311505
10	FOIL-FZ LIGHT
11	MAY W10308416
12	SCREW (10)
13	MAY W10330993
13	MAY W10330991
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12990504
18	CRADLE, BASKET (LEFT)
18	CRADLE, BASKET (RIGHT)
19	MAY W10488001N
20	GASKET, BOTTOM
21	BRACKET, SLIDE (LEFT)
21	BRACKET, SLIDE (RIGHT)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	MAY W10157765
31	MAY 12815301
32	Screw (6)
