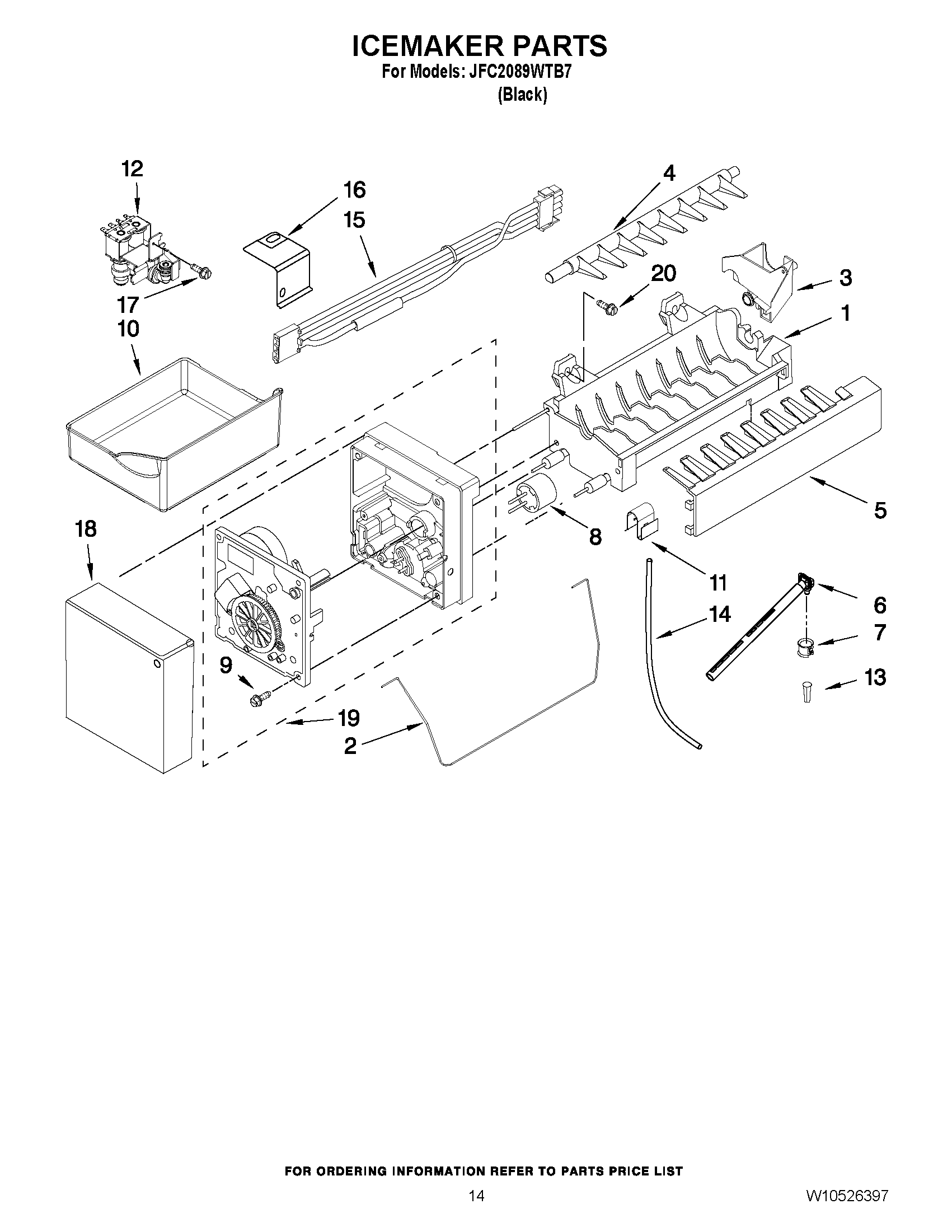

JFC2089WTB7 08 – ICEMAKER PARTS

JFC2089WTB7 08 – ICEMAKER PARTS

Written by

in

JFC2089WTB7 08 – ICEMAKER PARTS

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	ARM, SHUT OFF
3	MAY W10410073
4	MAY W10318914
5	ICE STRIPPER
6	MAY 10463203
7	Clip
8	MAY W10290336
9	Screw (3)
10	MAY W10171529N
11	Clip
12	VALVE, WATER INLET
13	MAY A3223101
14	MAY B5705333
15	MAY W10458985
16	MAY 2256086
17	MAY 12991604
18	MAY W10377174
19	ASSEMBLY, MODULE AND MOTOR
20	Screw (3)
100	ASSEMBLY, ICEMAKER (COMPLETE)
