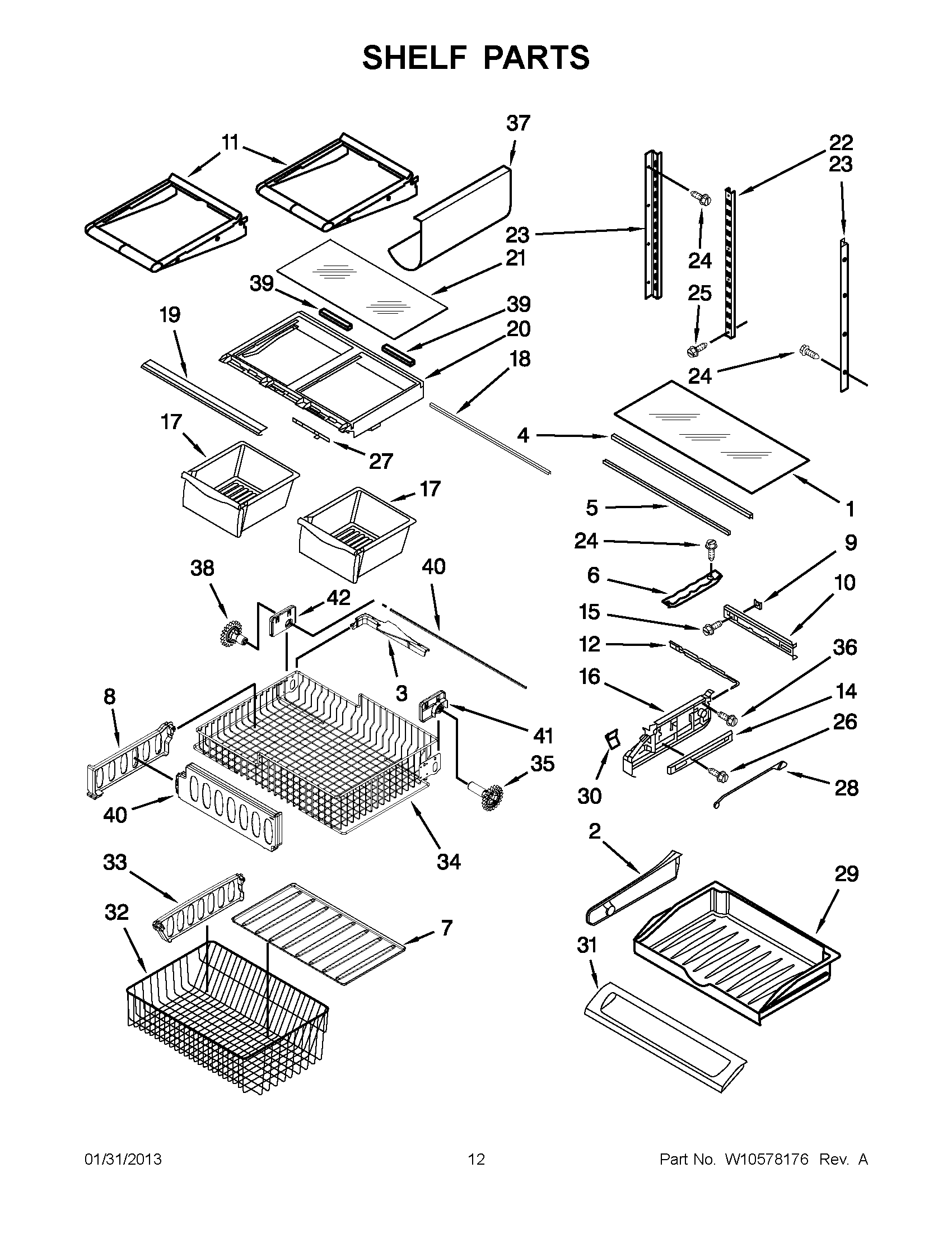

JFC2089WTB9 06 – SHELF PARTS
Written by
in
JFC2089WTB9 06 – SHELF PARTS
Products
Position
Product
1
MAY 12204829
2
MAY 12709301N
3
MAY W10149389N
4
MAY 12655902SP
5
MAY 12227305WH
6
TRACK, PANTRY
7
TRAY-LOWER BSKT.
8
Divider, Upper Basket
9
MAY 12656901
10
MAY 12656202
11
SHELF, GLIDE (4)
12
SLIDE, TEMPERATURE
14
MAY W10235370
16
Endcap, Pantry (Left)
16
ENDCAP, PANTRY (RIGHT)
17
Pan, Crisper (2)
18
Brace, Crisper
19
MAY W10231478N
20
MAY 12531202SP
21
MAY 12204821N
22
MAY W10273463
23
MAY W10251971
24
MAY 12990513
25
MAY W10215666
26
MAY 12990504
27
MAY 12530805SP
28
ROD, TEMPERATURE CONTROL
29
MAY 12655702N
30
KNOB, TEMP CONTROL
31
DOOR, PANTRY DRAWER
32
MAY W10503185
33
DIVIDER, LOWER BASKET
34
MAY W10348245
35
MAY W10474715
36
SCREW (2)
37
RACK, BOTTLE
38
MAY W10474716
39
MAY 10685512
40
MAY 12812904WD
41
MOUNT-GEAR (RIGHT HAND)
42
MOUNT-GEAR (LEFT HAND)
←
