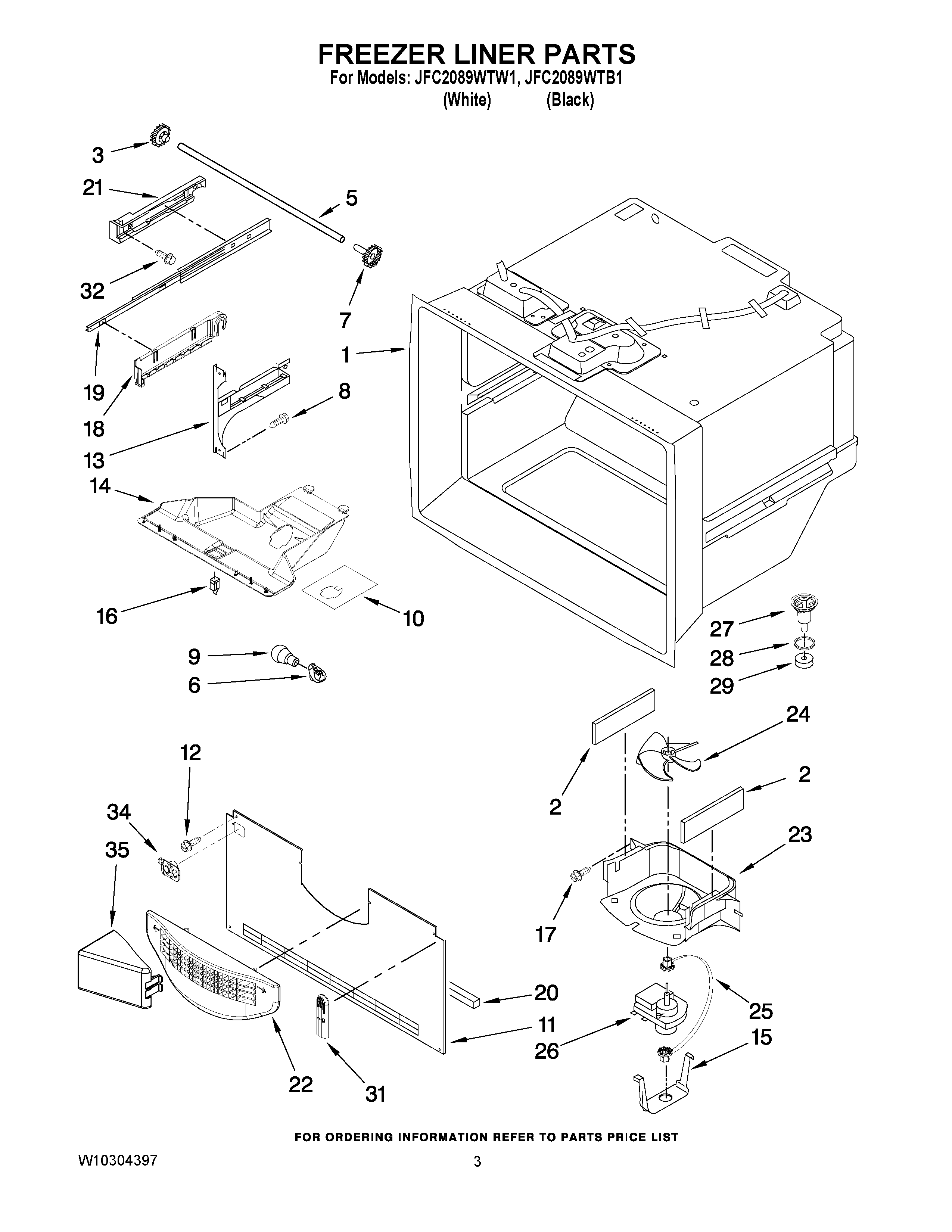

JFC2089WTW1 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
5	SHAFT
6	Socket, Light
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	Bulb, Light (2)
10	FOIL-FZ LIGHT
11	MAY 12226112
12	SCREW (10)
13	MAY W10119295
13	MAY W10119064
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12990504
18	CRADLE, BASKET (RIGHT)
18	CRADLE, BASKET (LEFT)
19	Slide, Drawer (2)
20	GASKET, BOTTOM
21	MAY W10261191
21	MAY W10261193
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	MAY 13062901
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
34	MAY 12932103
35	MAY W10157765
