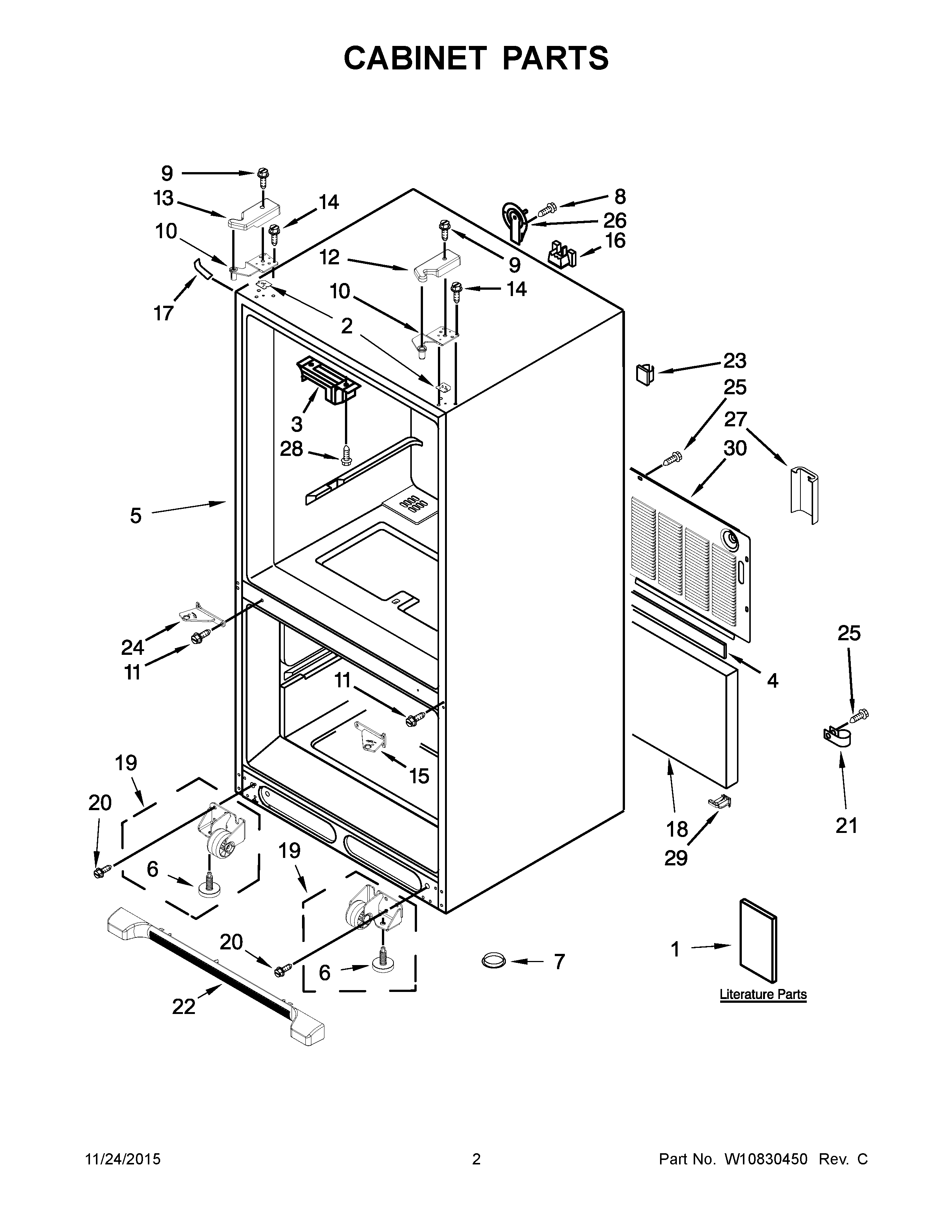

JFC2290REM00 02 – CABINET PARTS

Products

PositionProduct
1BMAY W10802019
1AMAY W10802052
1MAY W10543539
2AMAY 12999502
2MAY 12999501
3MAY W10120087
4MAY B5759655
5LINER (NOT A SERVICEABLE PART)
6Brake, Foot
7A3076901 Whirlpool Refrigerator Plug
8MAY 12990504
9MAY 12992603
10AHINGE, TOP (LEFT HAND)
10TOP HINGE (RIGHT HAND)
11MAY W10339086
12MAY W10120103
13MAY W10120102
14SCREW (6)
15MAY W10135097
16MAY W10658542
17COVER, CORNER (GREY)
18Insulation, Sound
19AROLLER ASSEMBLY (RIGHT HAND)
19ROLLER ASSEMBLY (LEFT HAND)
20Screw (8)
21CLAMP, TUBE
22MAY W10534155
23WPM0104106 Whirlpool Refrigerator Clip
24MAY W10135096
25SCREW (10)
26MAY 12726003
27GUARD-WATER VALVE
28Screw (4)
29MAY W10528513
30MAY W10211855
