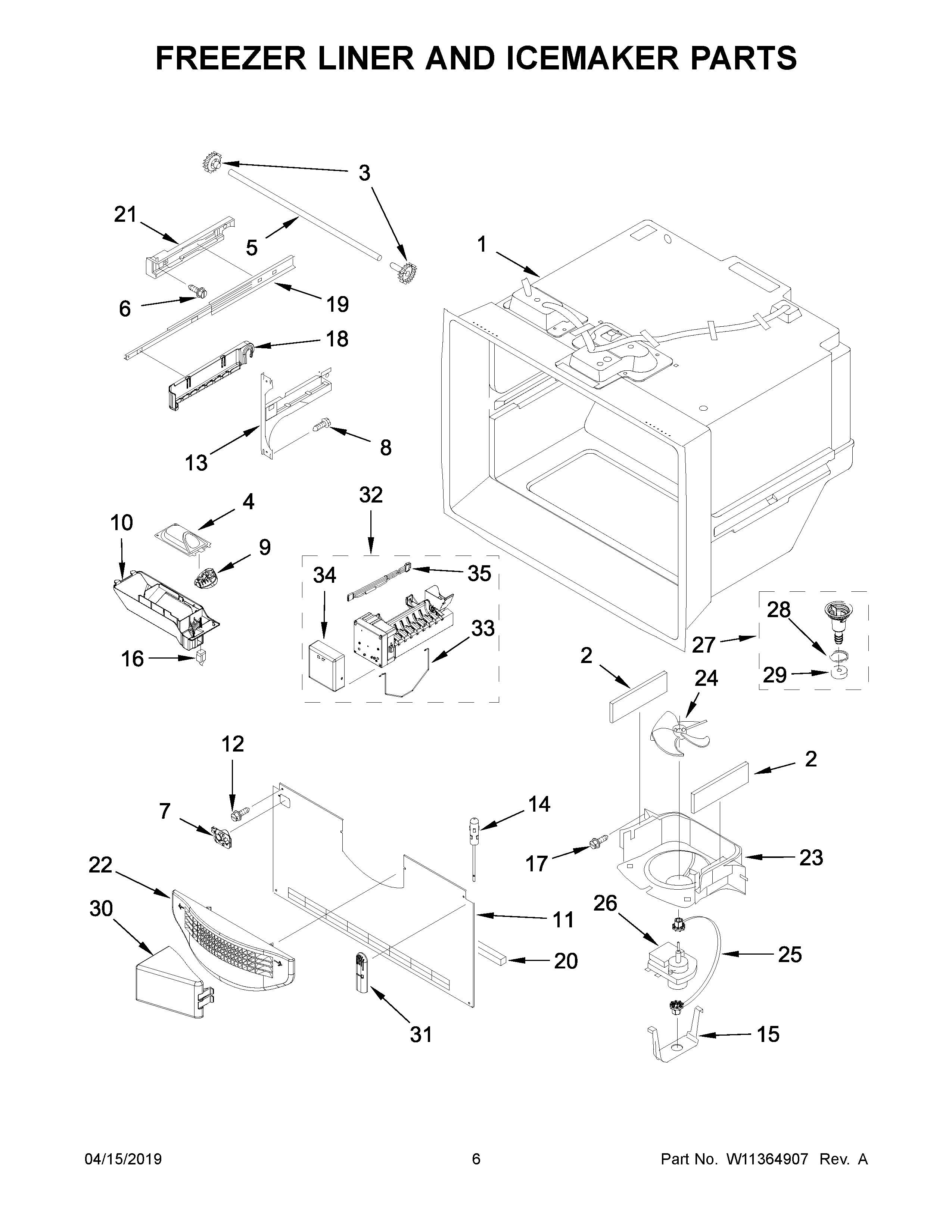

JFC2290REM02 04 – FREEZER LINER AND ICEMAKER PARTS

JFC2290REM02 04 – FREEZER LINER AND ICEMAKER PARTS

Written by

in

JFC2290REM02 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10196195
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY 12476401V
5MAY W10802332
6Screw (6)
7MAY W11261606
8Screw (8)
9MAY W11251749
10MODULE, FREEZER LIGHT
11MAY W10308420
12SCREW (10)
13ABRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14THERMISTOR
15CLIP, EVAP. MOTOR
16SWITCH, LIGHT
17MAY 12990504
18CRADLE, BASKET (LEFT HAND)
18ACRADLE, BASKET (RIGHT HAND)
19Slide, Drawer (2)
20GASKET, BOTTOM
21AADAPTER, SIDE (RIGHT HAND)
21ADAPTER, SIDE (LEFT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY W10662407
28MAY M0500703
29Gasket
30MAY W10157765
31MAY 12815301
32MAY W10795988
33ARM-SHUT OFF
34MAY W10153710
35MAY W10793621
