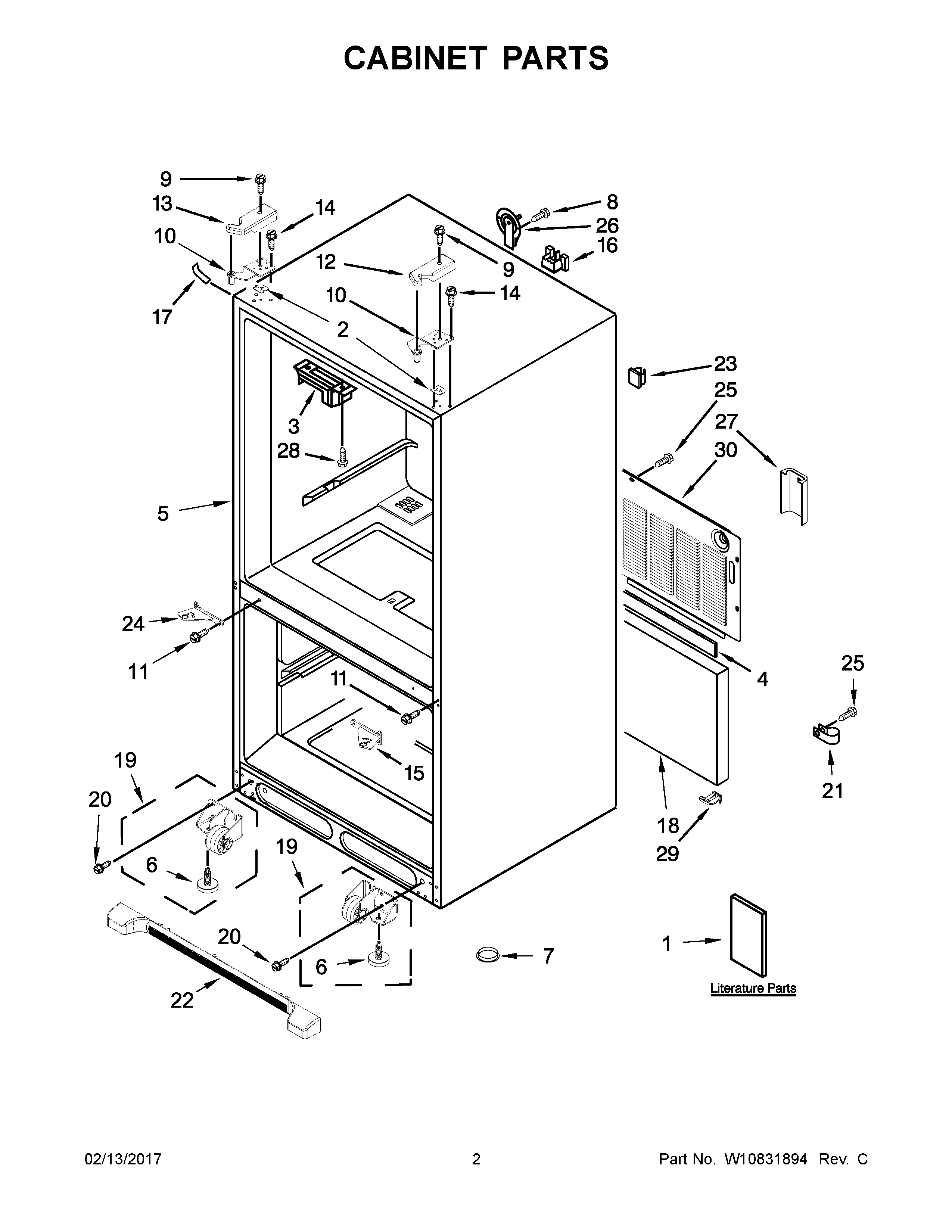

JFC2290REP00 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10802019
1A	MAY W10802052
1	MAY W10543539
2A	MAY 12999502
2	MAY 12999501
3	MAY W10120087
4	MAY B5759655
5	LINER (NOT A SERVICEABLE PART)
6	Brake, Foot
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10	HINGE, TOP (LEFT HAND)
10A	TOP HINGE (RIGHT HAND)
11	MAY W10673840
12	MAY W10120103
13	MAY W10120102
14	SCREW (6)
15	MAY W10135097
16	MAY W10658542
17	COVER, CORNER (GREY)
18	Insulation, Sound
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	MAY W10709365
21	CLAMP, TUBE
22	MAY W10534155
23	WPM0104106 Whirlpool Refrigerator Clip
24	MAY W10135096
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY W10528513
30	MAY W10211855
