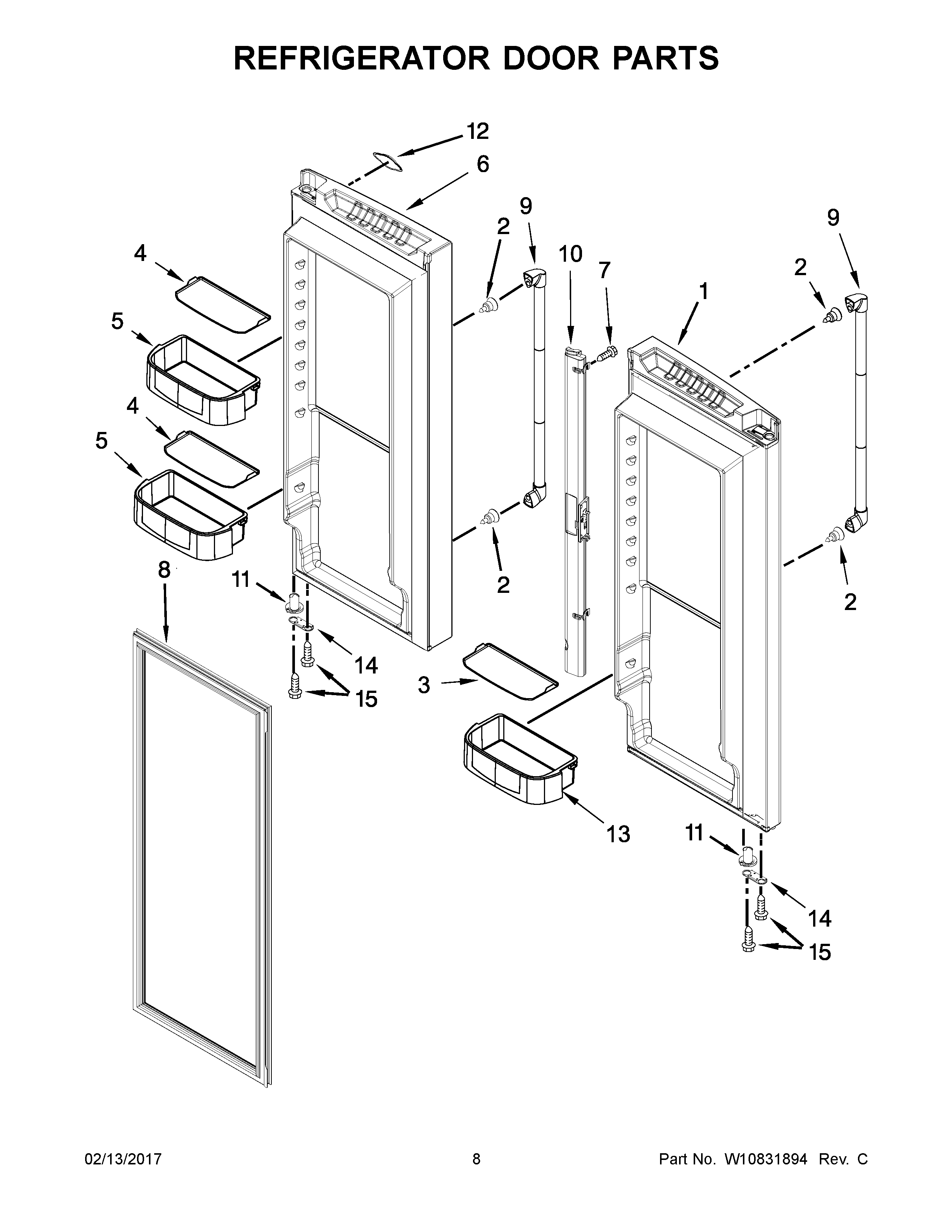

JFC2290REP00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 13094747S
2MAY W10460893
3GRIPPER, GALLON
4GRIPPER, MEDIUM
5BUCKET, MEDIUM
6MAY 13094739S
7MAY 12990204
8GASKET, DOOR (GREY)
9HANDLE, DOOR (PRO STYLE)
10MAY 12732508AP
11MAY 12028505AP
12W11636815 Whirlpool Nameplate
13BUCKET, GALLON
14MAY W10120097
15MAY 12990504
