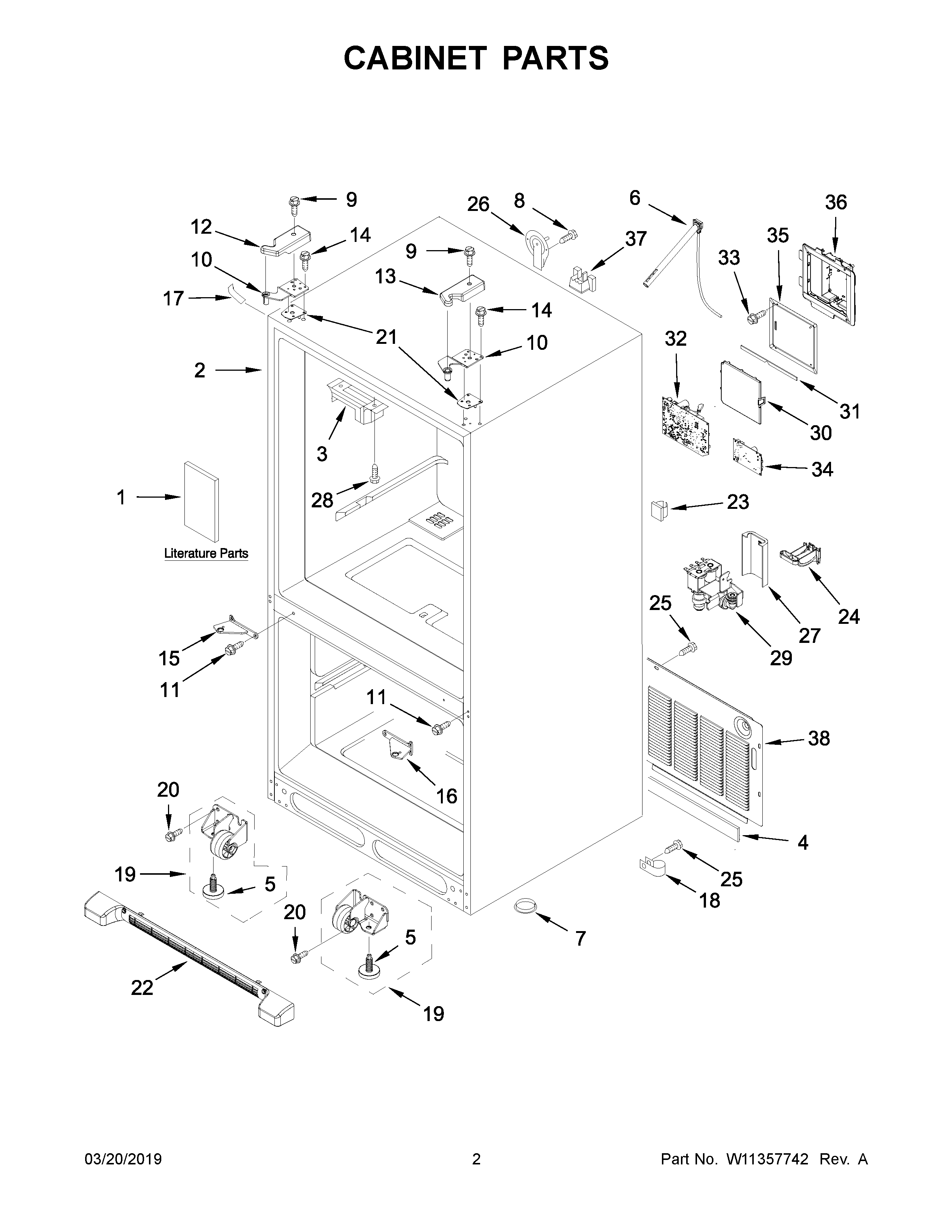

JFC2290REP02 02 – CABINET PARTS

Products

Position	Product
1B	MAY W11308940
1	MAY W10543539
1A	MAY W11298865
2	LINER (NOT A SERVICEABLE PART)
3	MAY W10120087
4	MAY B5759655
5	Brake, Foot
6	ASSEMBLY, FILL TUBE (INCLUDES TUBING, FILL TUBE ELBOW, TUBE INSERT AND CLAMP)
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10	MAY W10892768
10A	TOP HINGE (RIGHT HAND)
11	MAY W10673840
12	COVER, HINGE LEFT HAND (GREY)
13	MAY W10120103
14	SCREW (6)
15	MAY W10135096
16	MAY W10135097
17	COVER, CORNER (GREY)
18	CLAMP, TUBE
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	MAY W10709365
21A	MAY 12999502
21	MAY 12999501
22	MAY W10534155
23	WPM0104106 Whirlpool Refrigerator Clip
24	MAY W10528513
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	SCREW
29	VALVE, WATER INLET
30	MAY W10296541
31	GASKET-HV BOX
32	CONTROL, ELECTRONIC
33	SCREW
34	CONTROL, POWER SUPPLY ELECTRONIC
35	MAY 12961602
36	MAY W10119790
37	MAY W10658542
38	MAY W10211855
