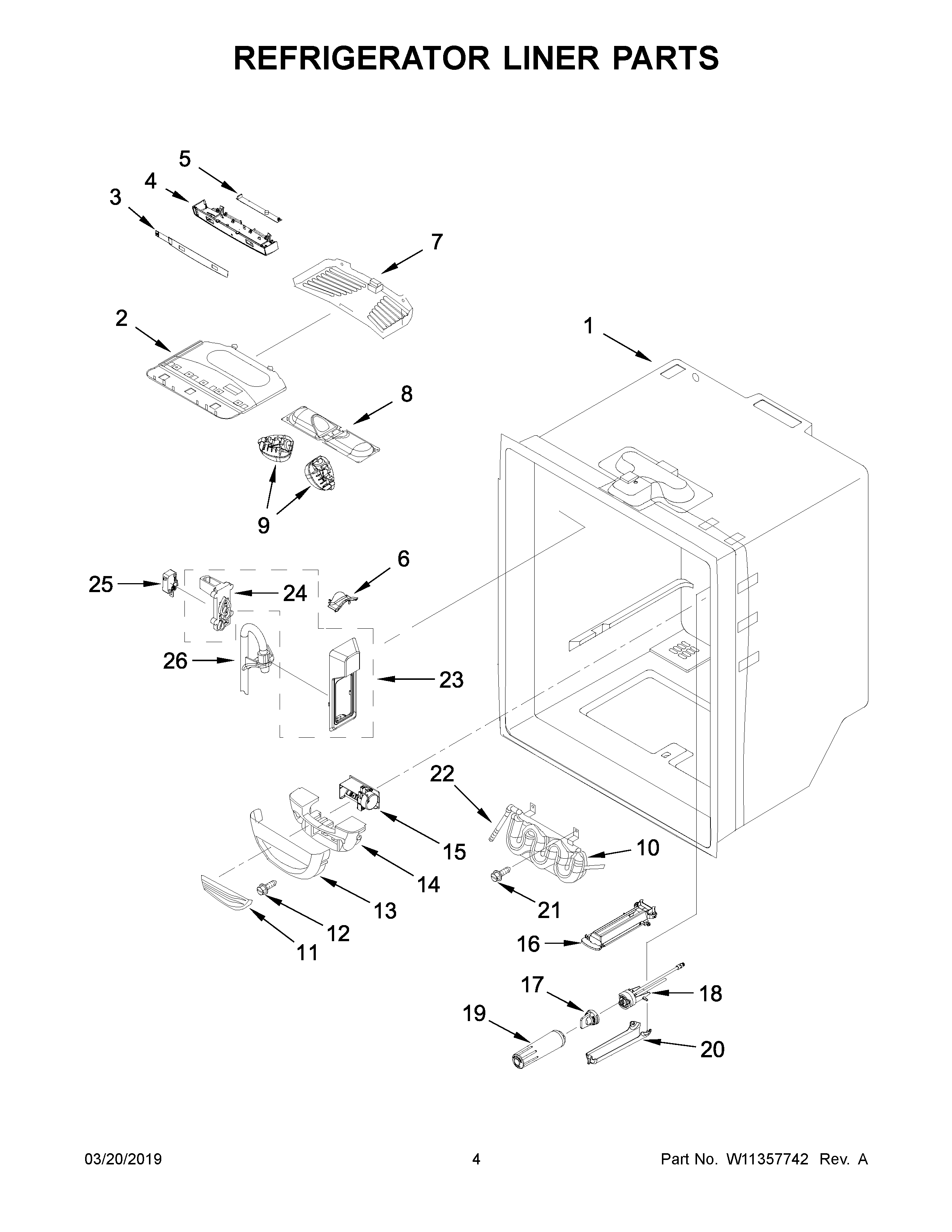

JFC2290REP02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	MAY W10391289
NI	LINER (NOT A SERVICEABLE PART)
2	MAY W10464766
3	MAY W10808269
4	MAY W10464767
5	BOARD, CONTROL
6	MAY W10116529
7	COVER, LIGHT
8	MAY W10443023
9	MAY W11251749
10	MAY W11117106
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	MAY W10594329
16	MAY 12955901
17	MAY 12664501SP
18	MAY W11308018
19	MAY W11256384
20	Lid, Water Filter
21	MAY 12990504
22	WP2300868 Whirlpool Refrigerator Fitting
23	MAY W10204292
24	PLUNGER SWITCH
25	MAY 12575502
26	MAY W10117324
