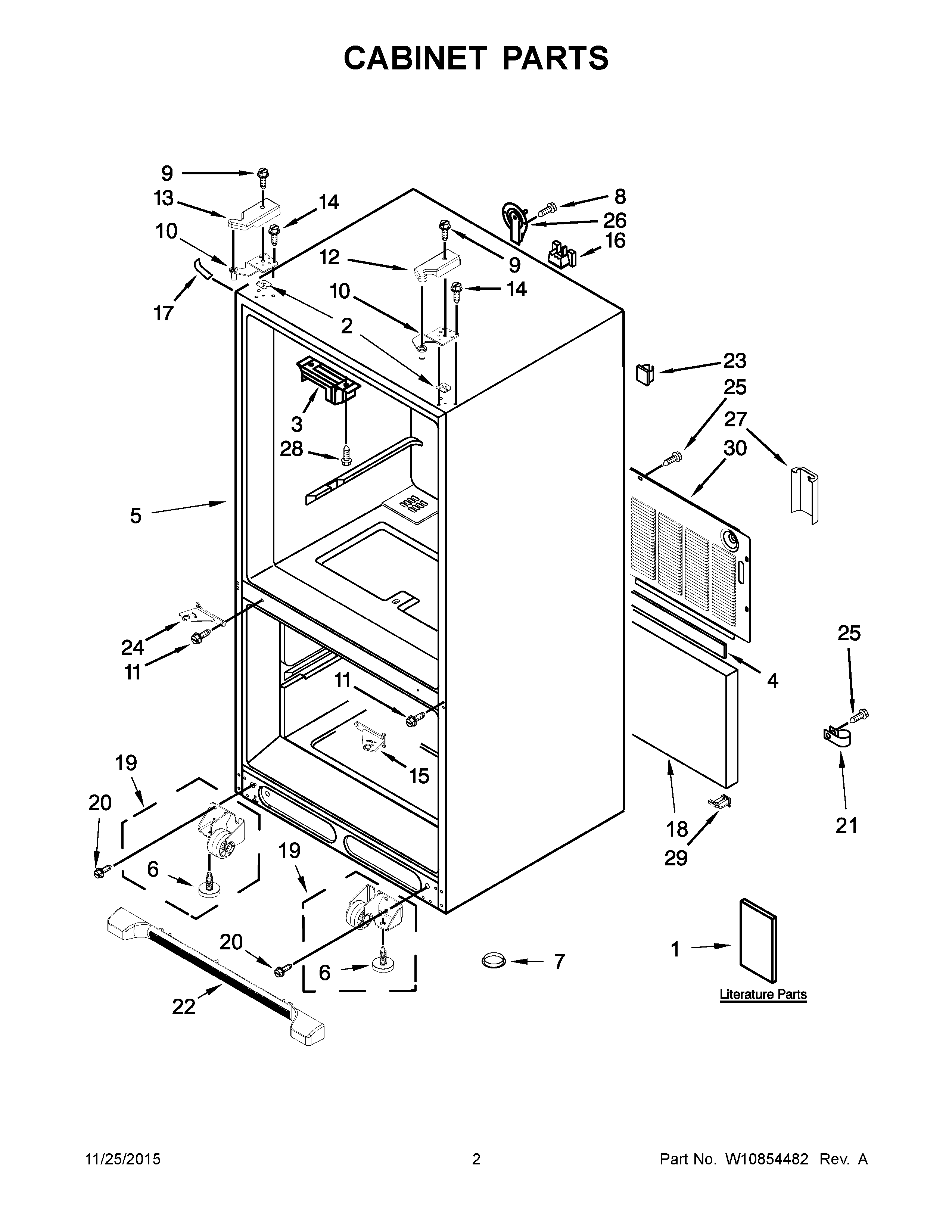

JFC2290REY00 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10802019
1A	MAY W10802052
1	MAY W10543539
2A	MAY 12999502
2	MAY 12999501
3	MAY W10120087
4	MAY B5759655
5	LINER (NOT A SERVICEABLE PART)
6	Brake, Foot
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10	HINGE, TOP (LEFT HAND)
10A	TOP HINGE (RIGHT HAND)
11	MAY W10339086
12	COVER, RIGHT HINGE (BLACK)
13	COVER, LEFT HINGE (BLACK)
14	SCREW (6)
15	MAY W10210883
16	MAY W10658542
17	COVER, CORNER (BLACK)
18	Insulation, Sound
19	ROLLER ASSEMBLY (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	CLAMP, TUBE
22	GRILLE, TOE (BLACK)
23	WPM0104106 Whirlpool Refrigerator Clip
24	HINGE, CENTER (LT) (BLACK)
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY W10528513
30	MAY W10211855
