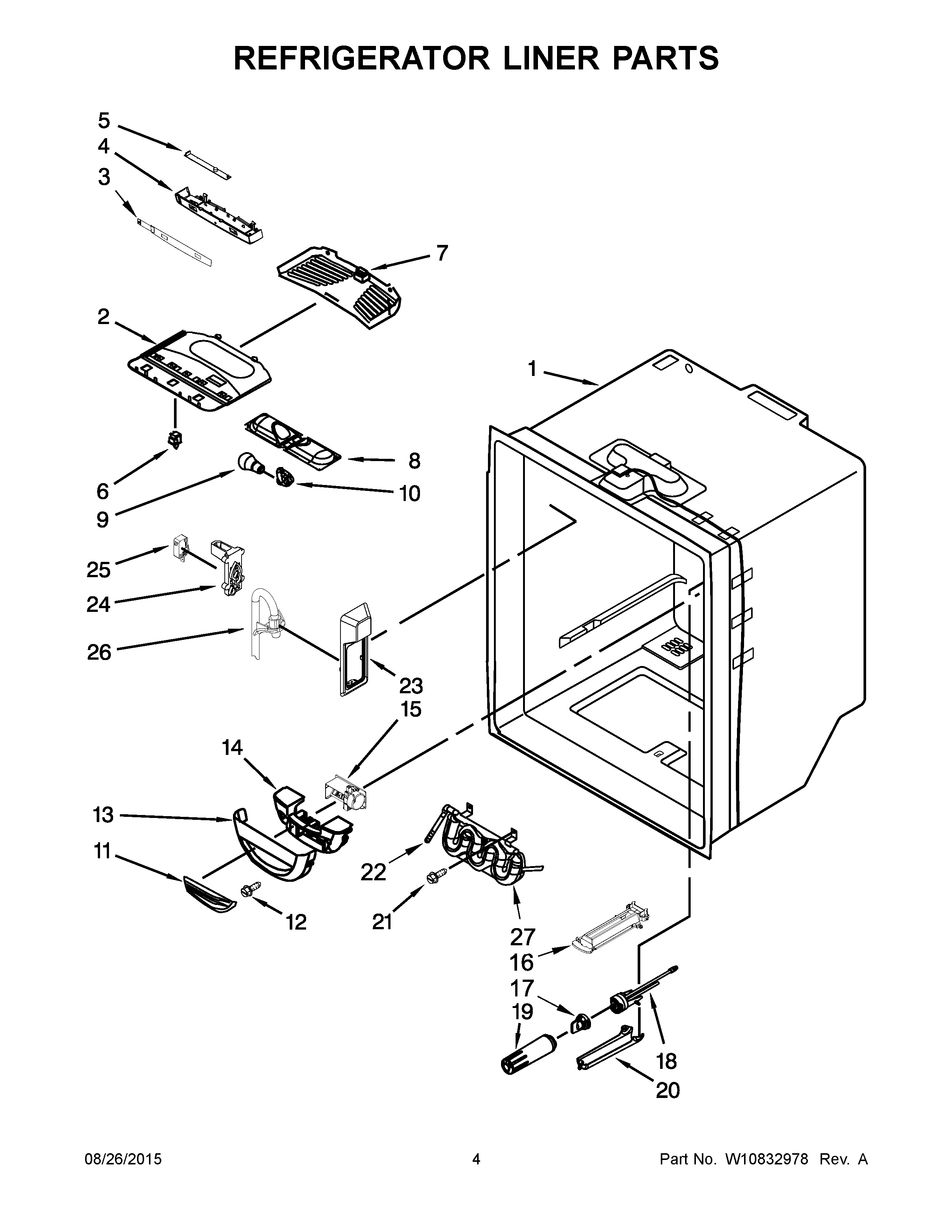

JFC2290RTB00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10391289
2	MAY W10464766
3	MAY W10808269
4	MAY W10464767
5	MAY W10116216
6	W11291138 Whirlpool Refrigerator Door Switch
7	MAY 12806501
8	MAY W10443023
9	MAY W10745744
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	MAY W10594329
16	MAY 12955901
17	MAY 12664501SP
18	MAY W10609243
19	MAY W10735404
20	MAY 12960301N
21	MAY 12990504
22	WP2300868 Whirlpool Refrigerator Fitting
23	MAY W10204292
24	PLUNGER SWITCH
25	MAY 12575502
26	MAY W10117324
27	MAY 12706109
