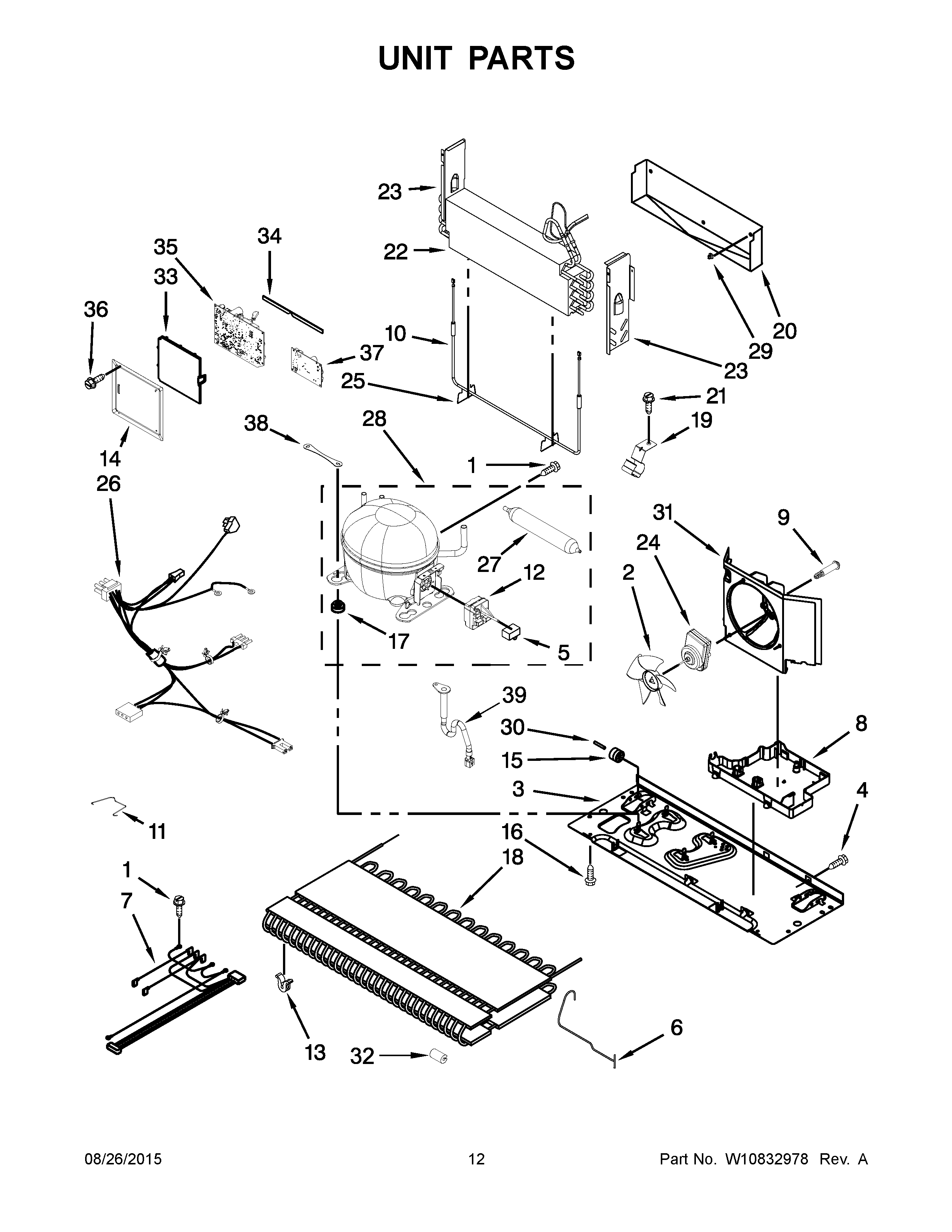

JFC2290RTB00 07 – UNIT PARTSadmin2025-04-26T09:28:01+00:00JFC2290RTB00 07 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | MAY 876764 |
| NI | Valve, Access (3/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY 12992301 |
| 2 | MAY 12825803 |
| 3 | MAY W10480111 |
| 4 | SCREW (10) |
| 5 | MAY W10350564 |
| 6 | MAY W10233569 |
| 7 | HARNESS, EVAPORATOR HEATER |
| 8 | MAY W10655368 |
| 9 | MAY W10622701 |
| 10 | MAY 12729123 |
| 11 | MAY W10216075 |
| 12 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION) |
| 13 | GROMMET, COND (4) |
| 14 | MAY 12961602 |
| 15 | Roller (2) |
| 16 | MAY 12992101 |
| 17 | GROMMET |
| 18 | MAY W10346415 |
| 19 | MAY W10281329 |
| 20 | MAY W10292803 |
| 21 | MAY 12990701 |
| 22 | MAY W10317014 |
| 23A | Dam (Right Side) |
| 23 | DAM (LEFT SIDE) |
| 24 | MAY W10609117 |
| 25 | W11673433 Whirlpool Clip |
| 26 | MAY W10679221 |
| 27 | Drier |
| 28 | MAY W10485433 |
| 29 | MAY 10623002 |
| 30 | Axle, Roller (2) |
| 31 | SHROUD |
| 32 | GROMMET, CONDENSER |
| 33 | MAY W10296541 |
| 34 | GASKET-HV BOX |
| 35 | CONTROL, ELECTRONIC |
| 36 | SCREW |
| 37 | CONTROL, POWER SUPPLY ELECTRONIC |
| 38 | MAY W10236396 |
| 39 | EXTENSION, DRAIN TUBE |
