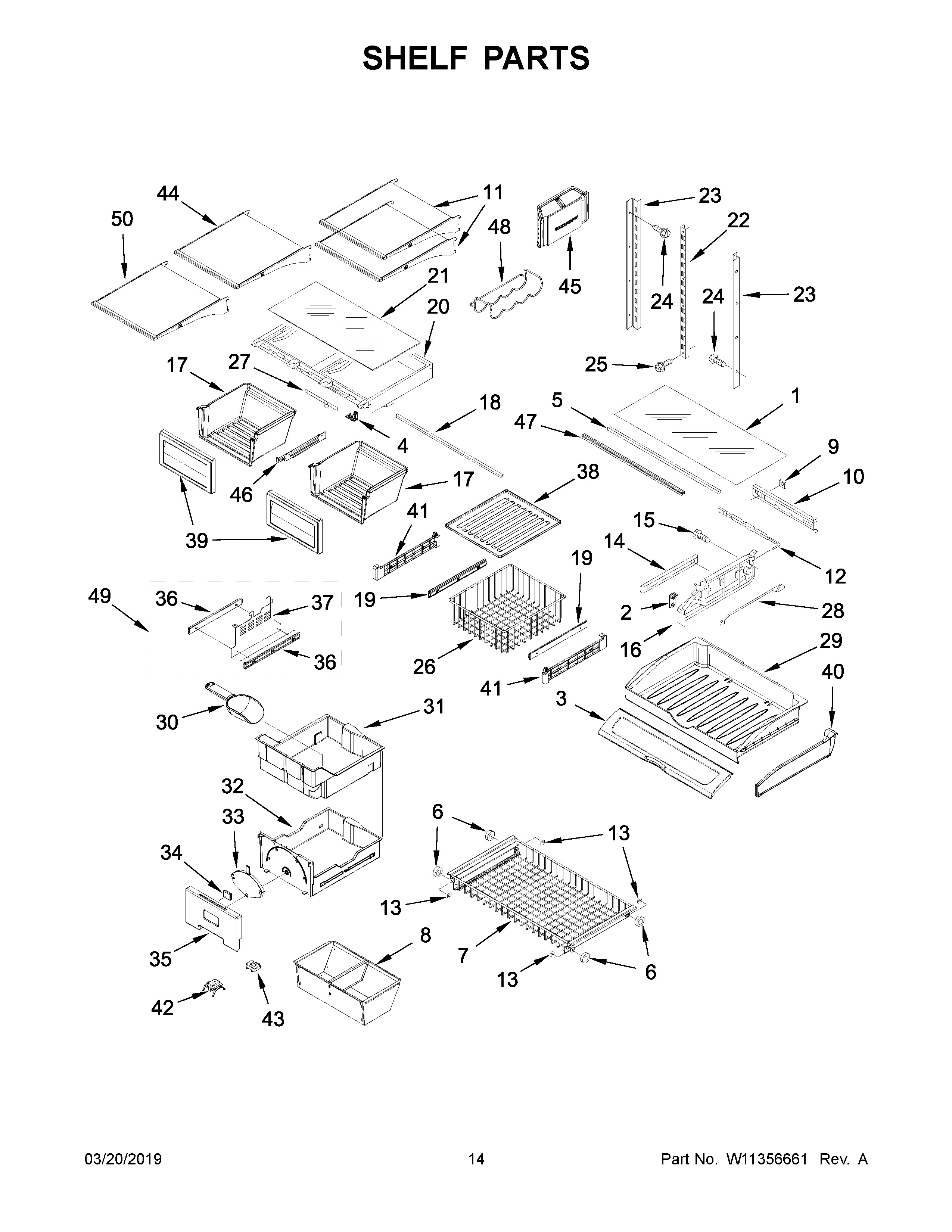

JFC2290RTB02 08 – SHELF PARTSadmin2025-04-26T09:02:33+00:00JFC2290RTB02 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12204815 |
| 2 | KNOB, TEMP CONTROL |
| 3 | MAY 12656822 |
| 4 | KNOB, HUMIDITY CONTROL |
| 5 | MAY 12227305WH |
| 6 | Roller, Basket |
| 7 | MAY W10119854 |
| 8 | MAY W10144706 |
| 9 | MAY 12656901 |
| 10 | MAY 12656202 |
| 11 | ASSEMBLY, SHELF |
| 12 | SLIDE, TEMPERATURE |
| 13 | NUT, HEX |
| 14A | GLIDE, DRAWER (RIGHT HAND) |
| 14 | GLIDE, DRAWER (LEFT HAND) |
| 15 | MAY 12990504 |
| 16 | ENDCAP, PANTRY (LEFT HAND) |
| 16A | ENDCAP, PANTRY (RIGHT HAND) |
| 17 | MAY W10119219 |
| 18 | MAY W10490807 |
| 19 | MAY W10170836 |
| 20 | MAY W10119215 |
| 21 | MAY 12204827 |
| 22 | MAY W10273463 |
| 23 | MAY W10569182 |
| 24 | MAY W10215666 |
| 25 | MAY 12990513 |
| 26 | MAY W10120003 |
| 27 | MAY W10119217 |
| 28 | ROD, TEMPERATURE CONTROL |
| 29 | MAY 12655703 |
| 30 | MAY W10182881 |
| 31 | MAY W10120005 |
| 32 | MAY W10120008 |
| 33 | MAY W10184030 |
| 34 | MAY W10720771 |
| 35 | MAY W10174720 |
| 36 | MAY W10170835 |
| 37 | MAY W10120014 |
| 38 | MAY W10451455 |
| 39 | MAY W10212414 |
| 40 | DIVIDER, PANTRY DRAWER |
| 41A | ADAPTER (RIGHT HAND) |
| 41 | ADAPTER (LEFT HAND) |
| 42 | MAY W10121004 |
| 43 | MAY W10121002 |
| 44 | ASSEMBLY, SHELF |
| 45 | ASSEMBLY, PRODUCE PRESERVER |
| 46A | Slide, Crisper (Right Vent) |
| 46 | Slide, Crisper (Left) |
| 47 | SUPPORT, GLASS |
| 48 | RACK, WINE |
| 49 | MAY W10170987 |
| 50 | ASSEMBLY, SHELF |
