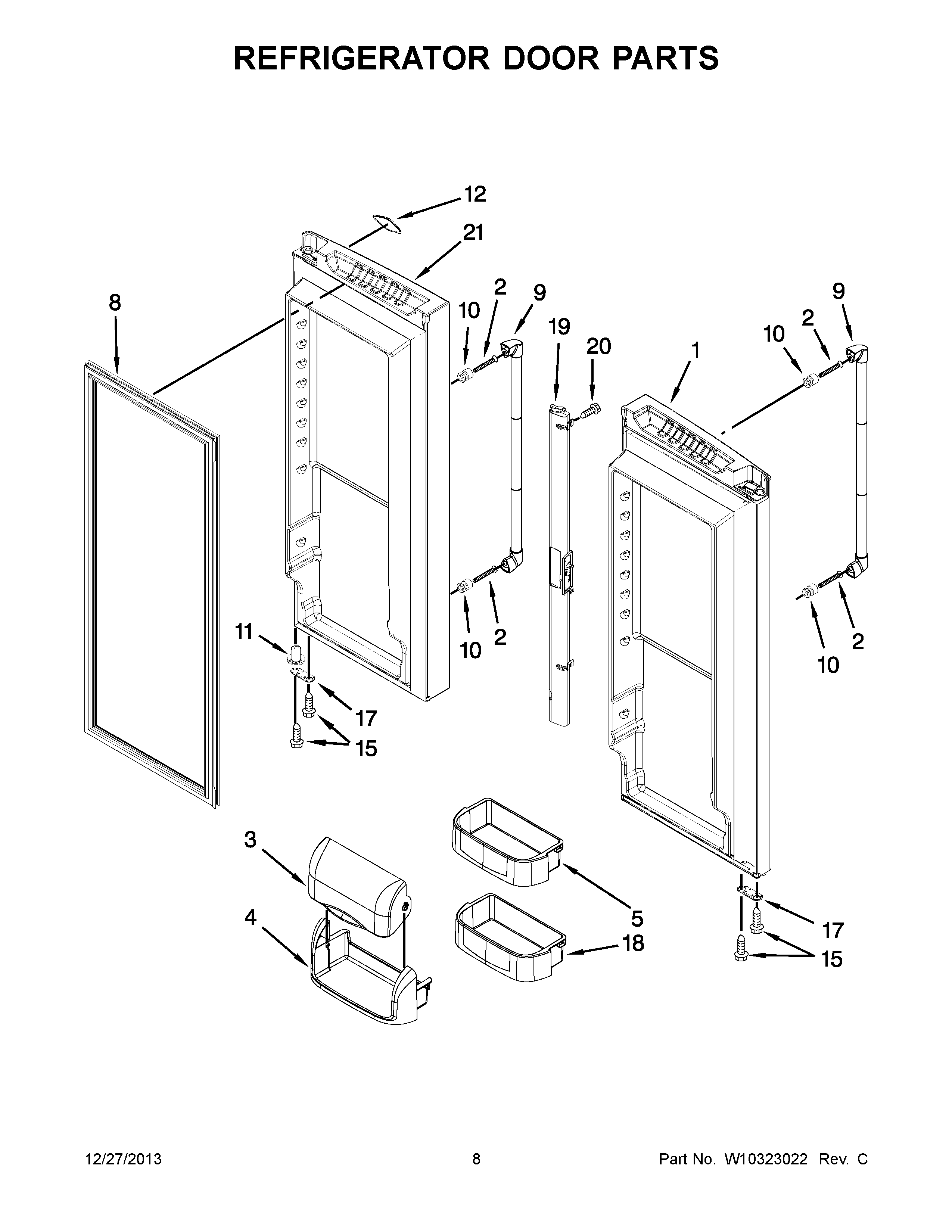

JFC2290VEM3 05 – REFRIGERATOR DOOR PARTS

Written by

Products

Position	Product
1	DOOR, REFRIGERATOR (STAINLESS, LH)
2	SCREW
3	MAY 12804701SP
4	MAY 12369502SP
5	BUCKET, MEDIUM
8	MAY W10163997
9	MAY W10298244N
10	MAY 13001201
11	MAY 12028505AP
12	ASSEMBLY, BADGE (STAINLESS)
15	MAY 12990504
17	MAY W10120097
18	BUCKET, GALLON
19	MAY 12732508AP
20	MAY 12990204
21	MAY 13094726SQ
