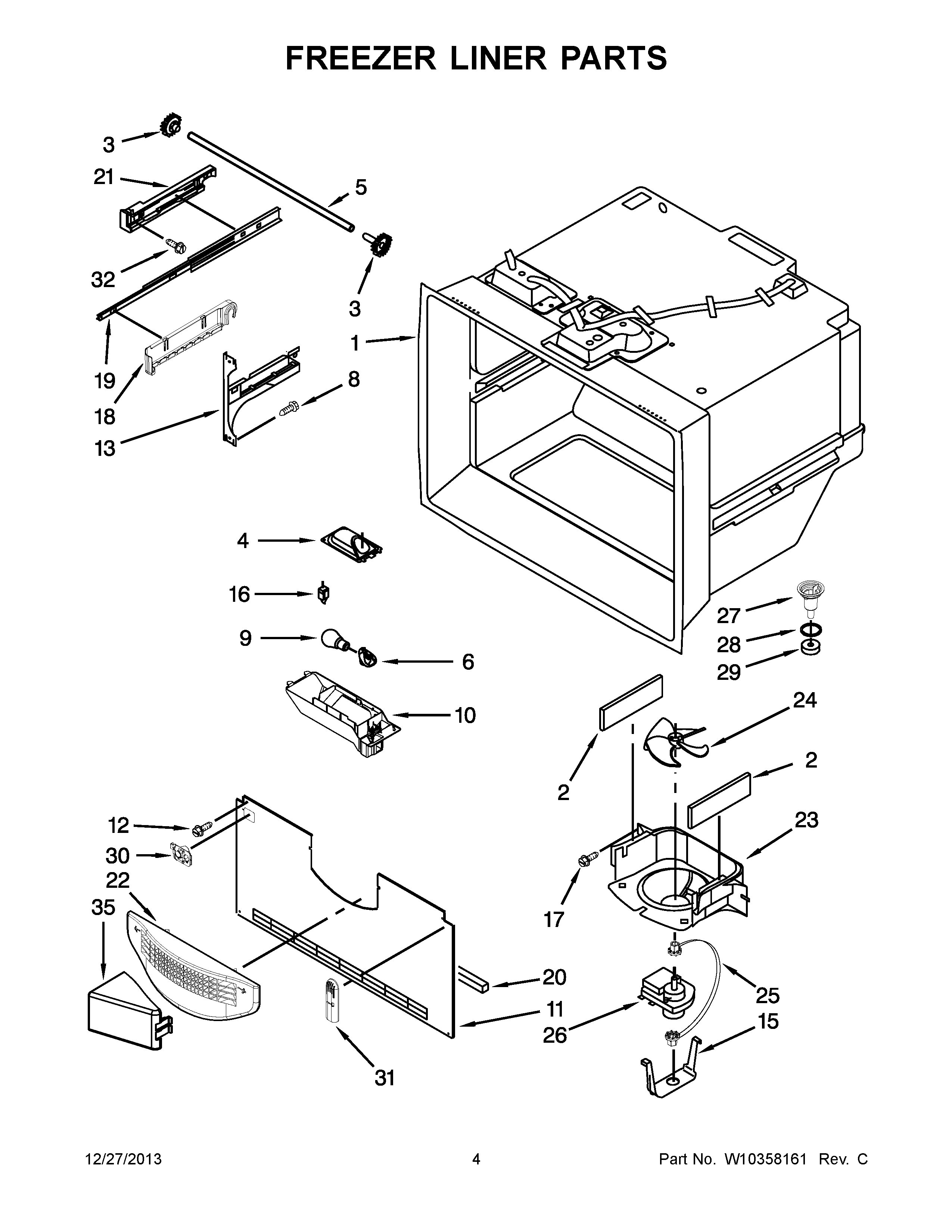

JFC2290VEM4 03 – FREEZER LINER PARTS

Products

PositionProduct
NIMAY W10196195
NILINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY 12476401SP
5SHAFT
6MAY 12570701SP
8Screw (8)
9BULB, LIGHT (2)
10MODULE, FREEZER LIGHT
11MAY W10308420
12SCREW (10)
13MAY W10119064
13MAY W10119295
15CLIP, EVAP. MOTOR
16MAY 12466105SP
17MAY 12990504
18CRADLE, BASKET (RIGHT HAND)
18CRADLE, BASKET (LEFT HAND)
19Slide, Drawer (2)
20Gasket, Bottom
21ADAPTER, SLIDE (LEFT HAND)
21ADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
30Guide, Fill Tube
31MAY 12815301
32Screw (6)
35MAY W10157765
