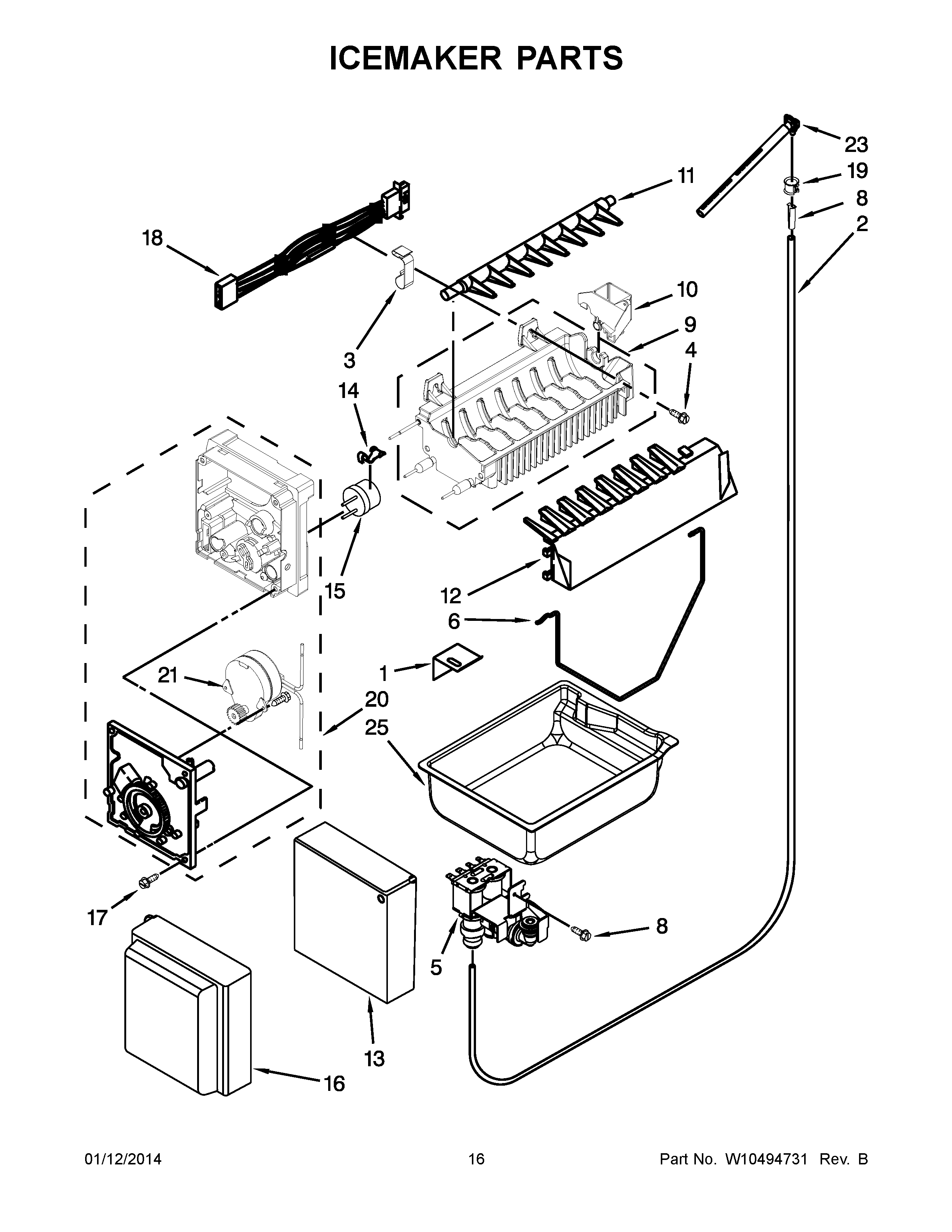

JFC2290VEM6 09 – ICEMAKER PARTS

JFC2290VEM6 09 – ICEMAKER PARTS

Written by

in

JFC2290VEM6 09 – ICEMAKER PARTS

Products

Position	Product
1	MAY 2256086
2	TUBING, PLASTIC
3	CLAMP, WIRE
4	MAY 489276
5	VALVE, WATER INLET
6	ARM-SHUT OFF
8	MAY A3223101SP
9	ASSEMBLY, MOLD AND HEATER
10	MAY W10410073
11	MAY W10318914
12	ICE STRIPPER
13	MAY W10377174
14	Clip
15	MAY W10290336
16	COVER, FRONT
17	Screw (3)
18	MAY W10404661
19	CLIP
20	ASSEMBLY, MODULE AND MOTOR
21	LINER (NOT A SERVICEABLE PART)
23	MAY 10463203SP
25	MAY W10120005
100	ICEMAKER ASSEMBLY (COMPLETE)
