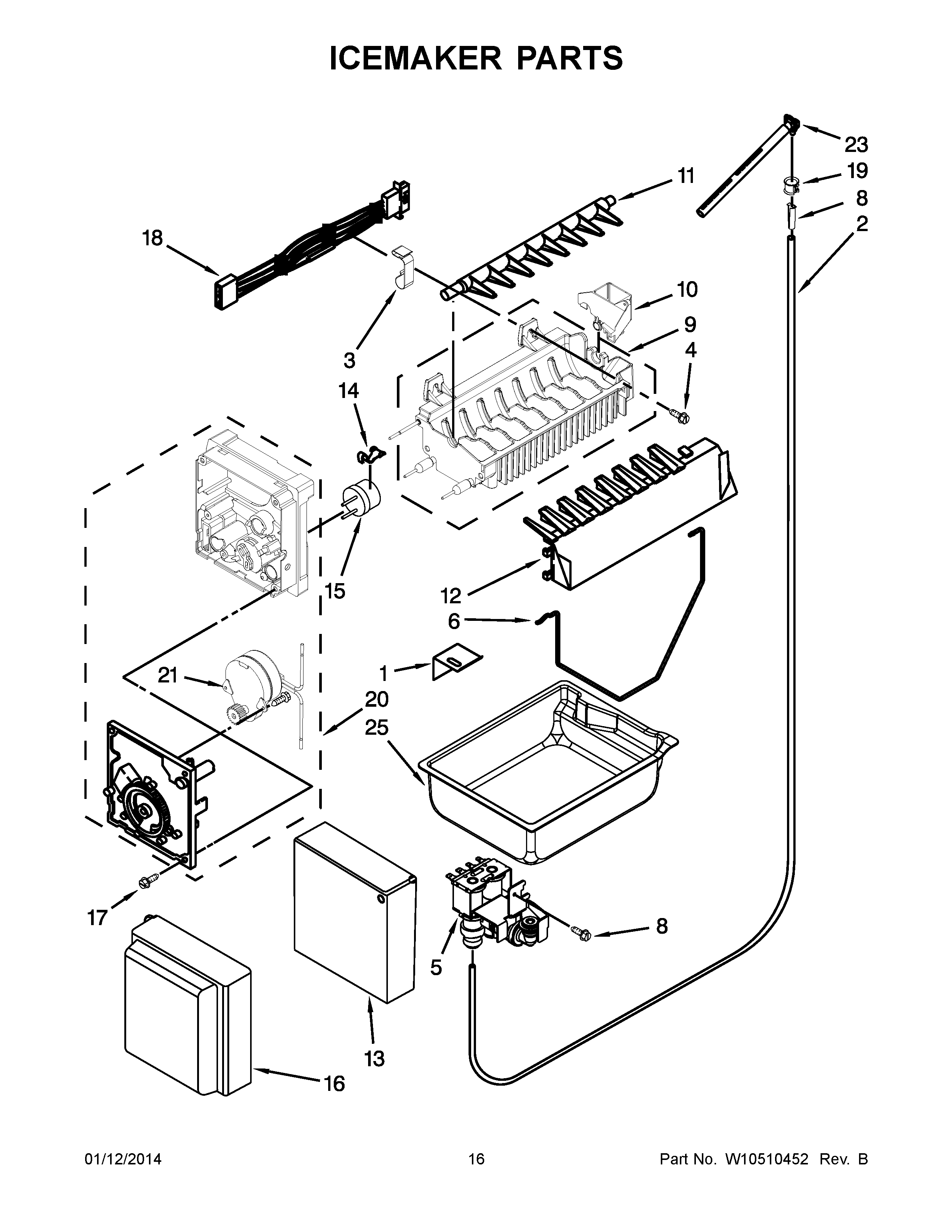

JFC2290VEM7 09 – ICEMAKER PARTS

Products

PositionProduct
1MAY 2256086
2MAY B5705333
3CLAMP, WIRE
4MAY 489276
5VALVE, WATER INLET
6ARM-SHUT OFF
8MAY A3223101
9ASSEMBLY, MOLD AND HEATER
10MAY W10410073
11MAY W10318914
12ICE STRIPPER
13MAY W10377174
14Clip
15MAY W10290336
16COVER, FRONT
17Screw (3)
18MAY W10458985
19Clip
20ASSEMBLY, MODULE AND MOTOR
21LINER (NOT A SERVICEABLE PART)
23MAY 10463203
25MAY W10120005
100ICEMAKER ASSEMBLY (COMPLETE)
