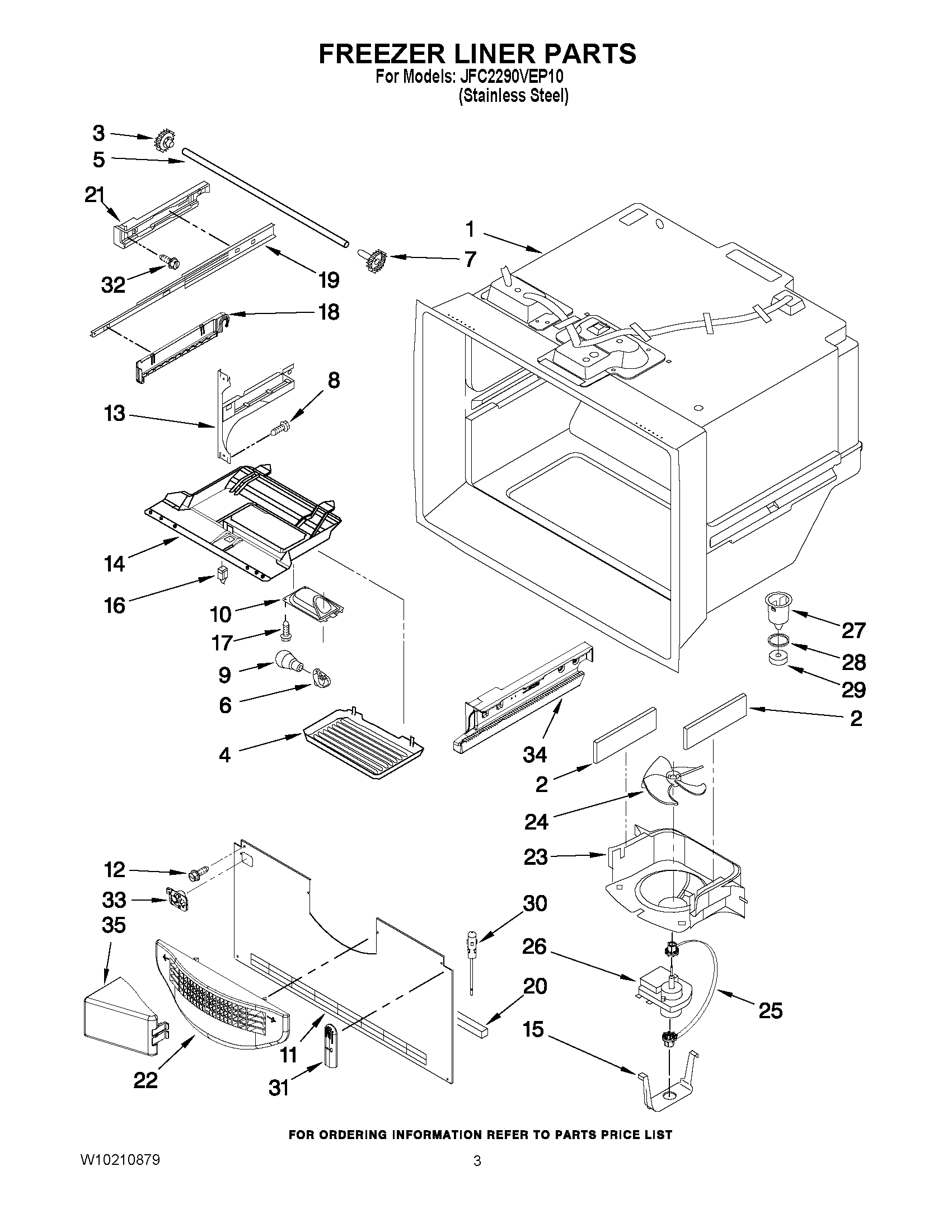

JFC2290VEP10 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY W10196195
1	LINER (NOT A SERVICEABLE PART)
2	W10856123 Whirlpool Refrigerator Gasket
4	MAY 67003905
5	W11028221 Whirlpool Refrigerator Shaft
6	Socket, Light (2)
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	RANGE ONLY 40W 120V APPL BULB
10	MAY 67001035
11	MAY W10203139
12	Screw (10)
13	MAY W10119295
13	MAY W10119064
14	MODULE, FREEZER LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 67005653
17	MAY 67006662
18	CRADLE, BASKET (RIGHT HAND)
18	CRADLE, BASKET (LEFT HAND)
19	MAY W10165841
20	MAY 67001776
21	ADAPTER (LEFT HAND)
21	ADAPTER (RIGHT HAND)
22	MAY W10175909
23	SHROUD, EVAP FAN
24	Blade, Fan (Evaporator)
25	MAY W10150583
26	Motor, Evaporator
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	MAY W10203133
31	WP67003924 Whirlpool Refrigerator Cover
32	Screw (6)
33	Guide, Fill Tube
34	MAY W10203148
34	MAY W10203149
35	MAY W10157765
