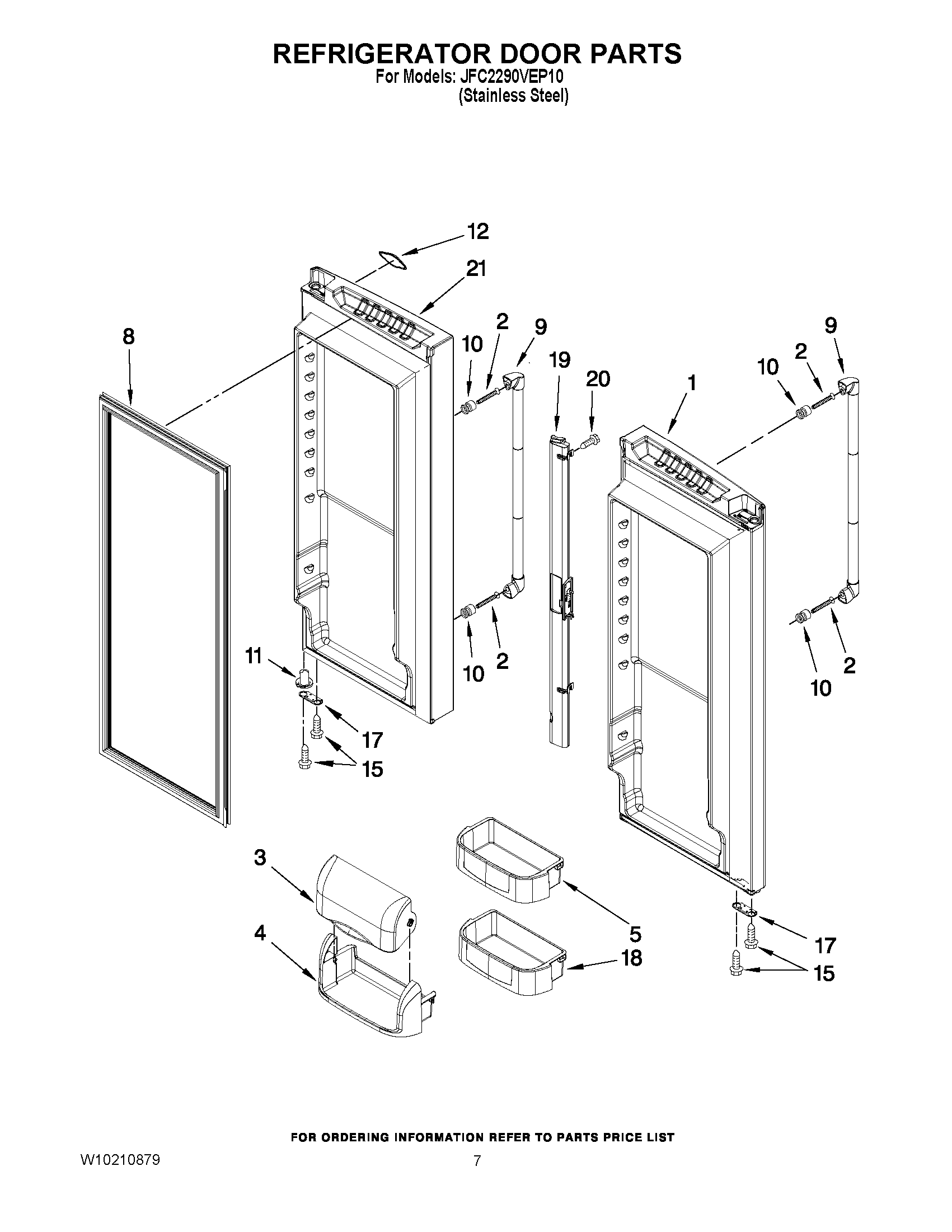

JFC2290VEP10 04 – REFRIGERATOR DOOR PARTS

JFC2290VEP10 04 – REFRIGERATOR DOOR PARTS

Written by

in

JFC2290VEP10 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Stainless, LH)
2SCREW
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5BUCKET, MEDIUM
8MAY W10163997
9Handle, Door (Stainless)
10WP67006113 Whirlpool Stud Bolt
11MAY W10191100
12W11636815 Whirlpool Nameplate
15WP98165 Whirlpool Screw
17MAY W10120097
18BUCKET, GALLON
19MAY 12732508AP
20MAY 67006786
21MAY 13094707SQ
