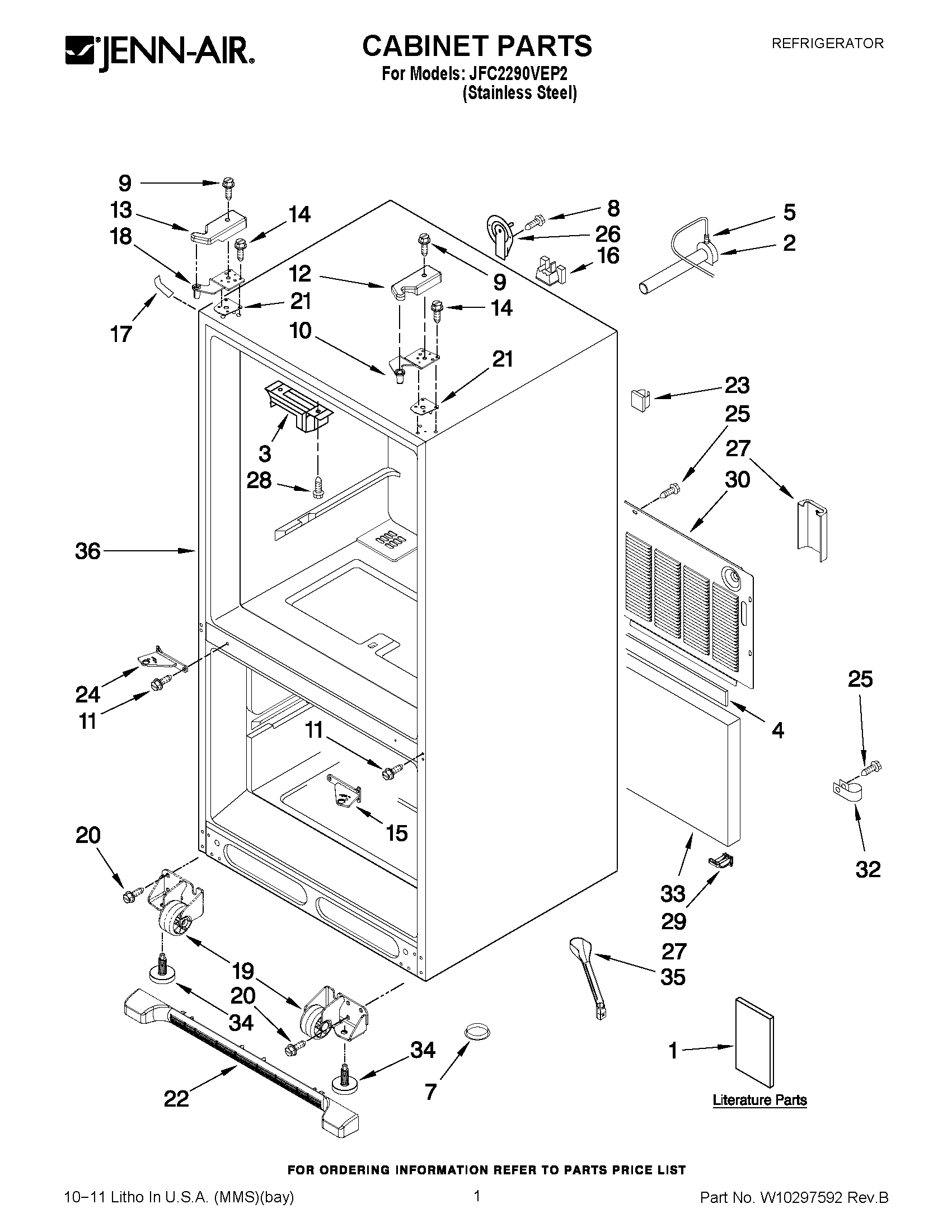

JFC2290VEP2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10276070
1	MAY W10214832
1	MAY W10238853
2	MAY 10463203SP
3	MAY W10120087
4	MAY B5759655
5	CLIP
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10	TOP HINGE (RIGHT HAND)
11	SCREW (6)
12	MAY W10120103
13	MAY W10120102
14	SCREW (6)
15	MAY W10135097
16	MAY 12777701
17	COVER, CORNER (GREY)
18	HINGE, TOP (LEFT HAND)
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	GRILLE, TOE (GREY)
23	WPM0104106 Whirlpool Refrigerator Clip
24	MAY W10135096
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY 12831101
30	MAY W10211855
32	W10833902 Whirlpool Refrigerator Clamp
33	Insulation, Sound
34	Brake, Foot
35	MAY W10210988
36	LINER (NOT A SERVICEABLE PART)
