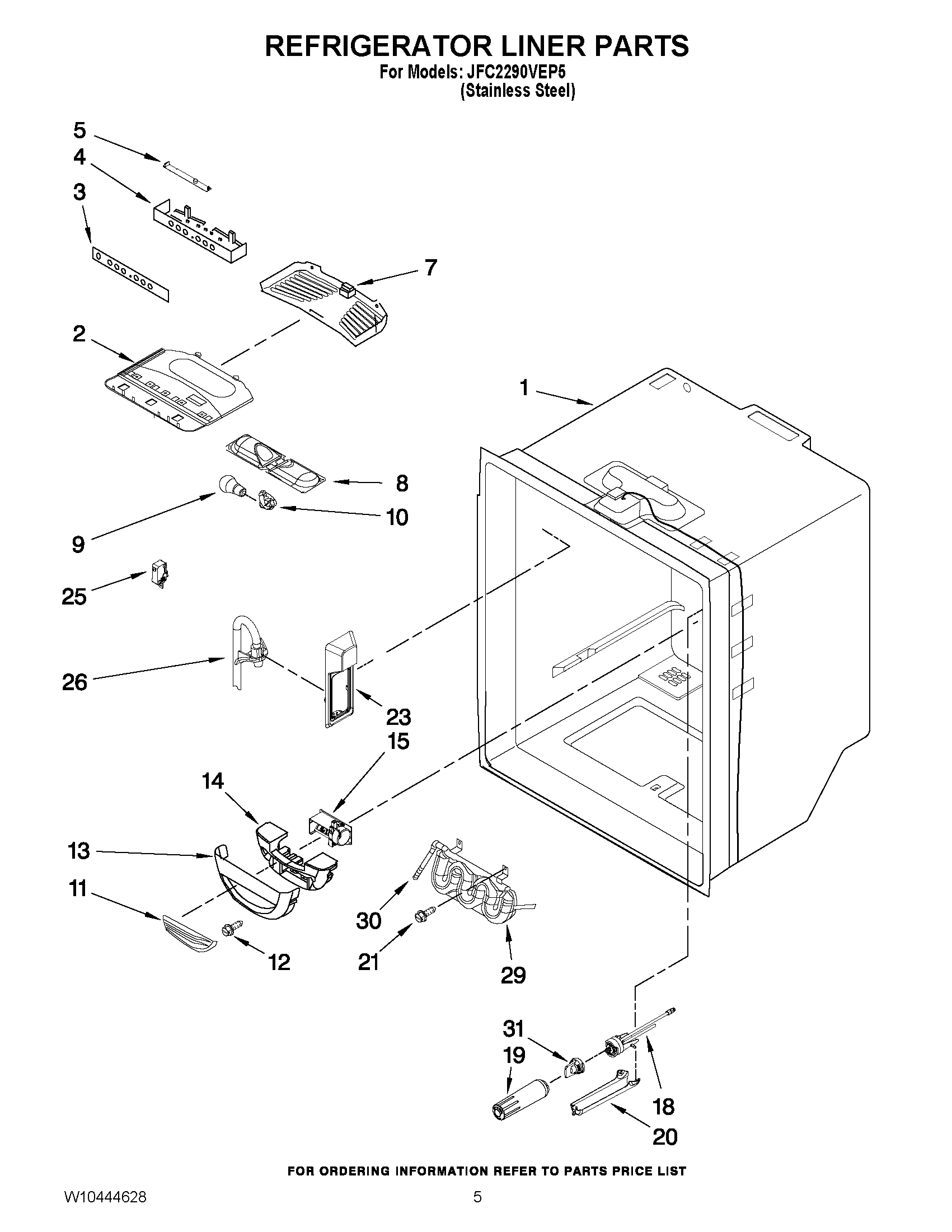

JFC2290VEP5 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	MAY W10119821
1	LINER (NOT A SERVICEABLE PART)
2	MAY 12806303
3	MAY W10316413
4	MODULE, CONTROL
5	MAY W10116216
7	MAY 12806501N
8	MAY 12806601V
9	BULB, LIGHT (2)
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	MAY W10207517
18	MAY 12590621
19	MAY UKF8001
20	WP12568001 Whirlpool Filter Cover
21	MAY 12990504
23	MAY W10204292
25	MAY 12575502
26	MAY W10117324
29	MAY 12706109
30	WP2300868 Whirlpool Refrigerator Fitting
31	MAY 12664501SP
