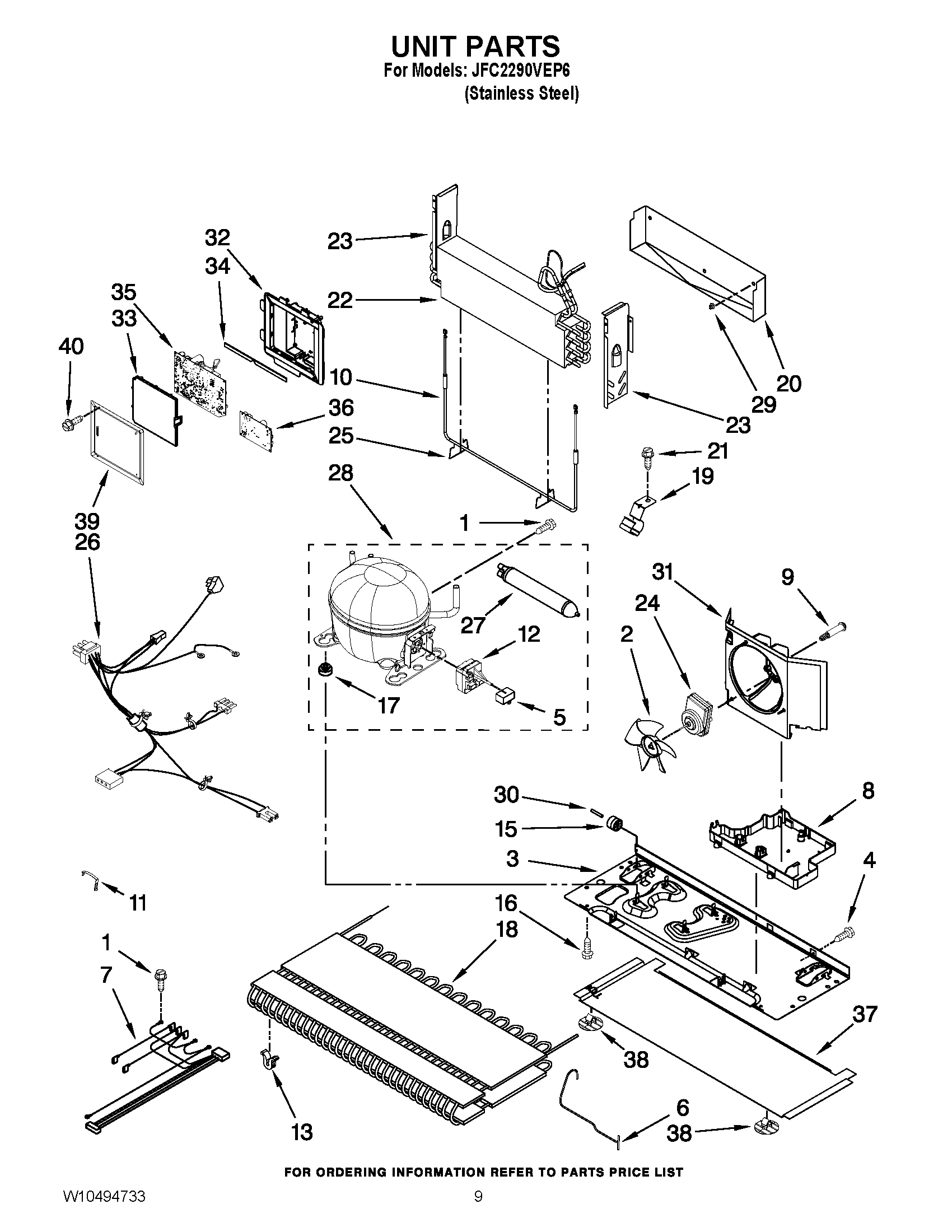

JFC2290VEP6 05 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10233569
7	HARNESS, EVAPORATOR HEATER
8	MAY W10296785
9	MAY W10216919
10	EVAPORATOR HEATER
11	MAY W10216075
12	START DEVICE
13	GROMMET, COND (4)
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346415
19	MAY W10281329
20	MAY W10292803
21	MAY 12990701
22	MAY W10317014
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10256742
27	Drier
28	MAY W10187125
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	MAY W10119790
33	MAY W10296541
34	GASKET-HV BOX
35	CONTROL, ELECTRONIC
36	CONTROL, POWER SUPPLY ELECTRONIC
37	MAY W10367416
38	MAY W10206339
39	MAY 12961602
40	SCREW
