JFC2290VEP6 06 – SHELF PARTS – Aparts

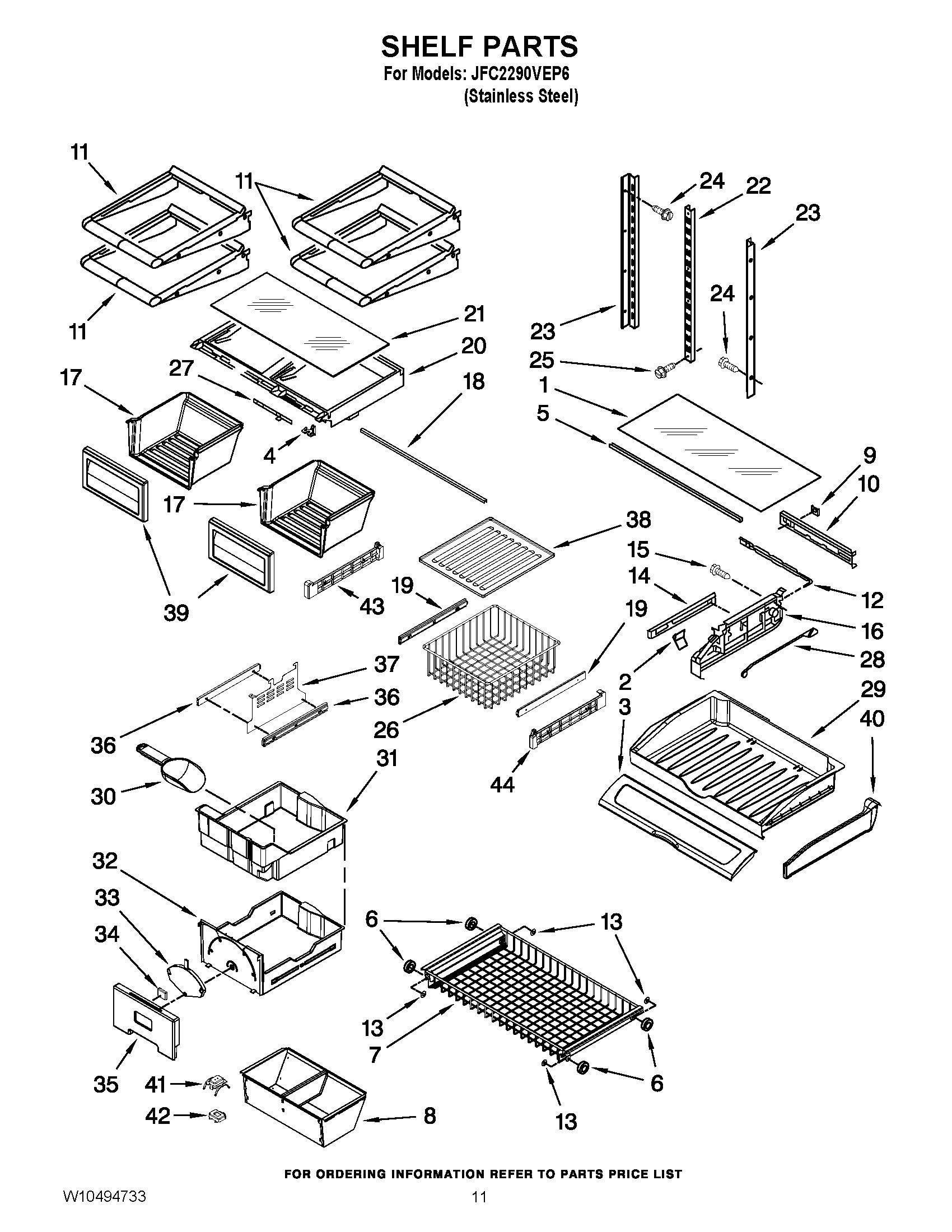

JFC2290VEP6 06 – SHELF PARTS

Products

Position	Product
1	MAY 12204815
2	MAY 12655204V
3	MAY 12656822
4	KNOB, HUMIDITY CONTROL
5	MAY 12227305WH
6	Roller, Basket
7	MAY W10119854
8	MAY W10144706
9	MAY 12656901
10	MAY 12656202
11	MAY W10156631
12	SLIDE, TEMPERATURE
13	NUT, HEX
14	GLIDE, DRAWER (LEFT HAND)
14	GLIDE, DRAWER (RIGHT HAND)
15	MAY 12990504
16	ENDCAP, PANTRY (RIGHT HAND)
16	ENDCAP, PANTRY (LEFT HAND)
17	MAY W10119219
18	MAY W10119258
19	MAY W10170836
20	MAY W10119215
21	MAY 12204827
22	MAY W10273463
23	MAY W10251971
24	MAY 12990513
25	MAY 12990515
26	MAY W10120003
27	MAY W10119217
28	ROD, TEMPERATURE CONTROL
29	MAY 12655703
30	MAY W10182881
31	MAY W10120005
32	MAY W10120008
33	MAY W10184030
34	MAY W10131252
35	MAY W10174720
36	MAY W10170835
37	MAY W10120014
38	MAY W10451455
39	MAY W10212414
40	MAY 12709301N
41	MAY W10121002
42	MAY W10121004
43	ADAPTER (RIGHT HAND)
44	ADAPTER (LEFT HAND)
