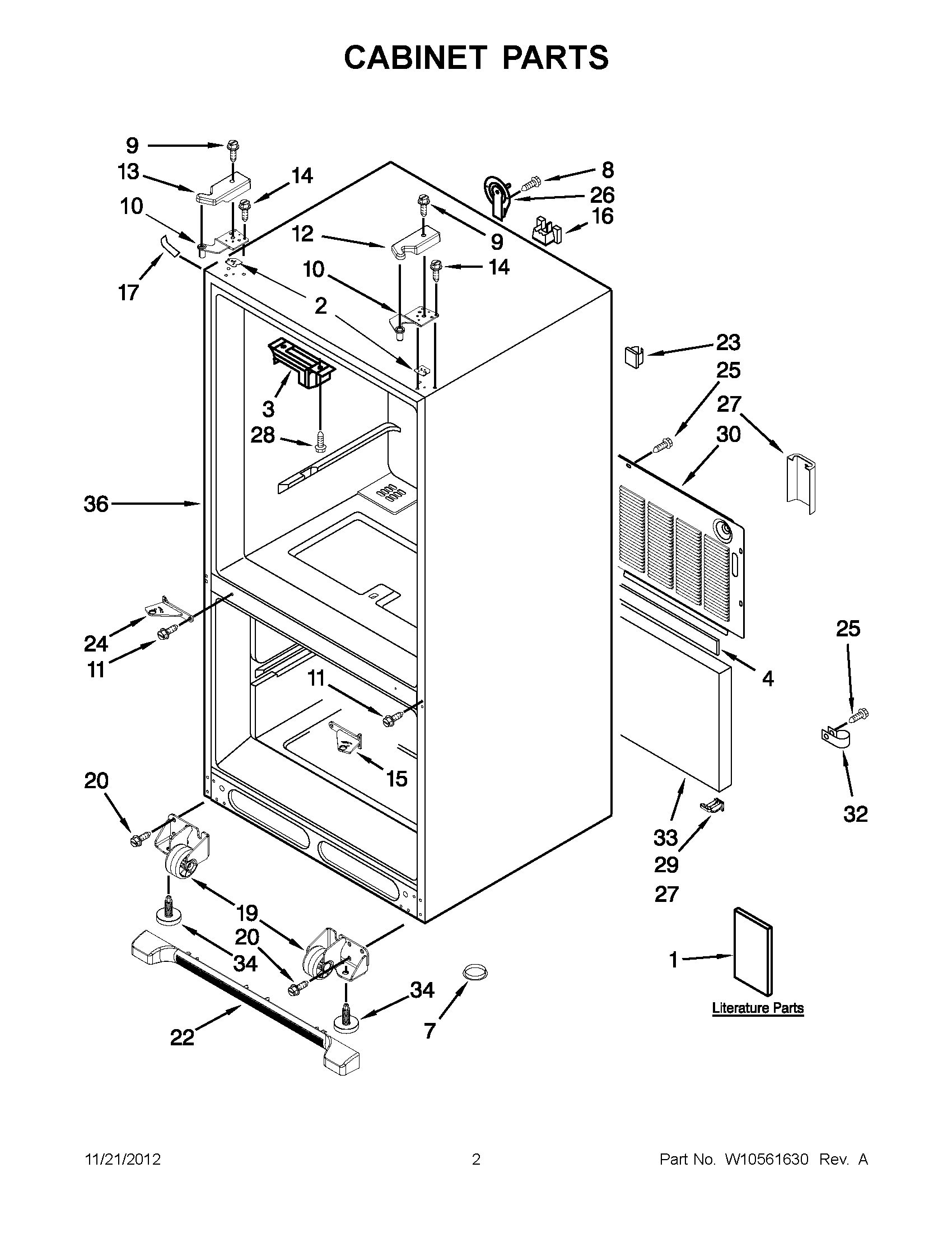

JFC2290VEP8 01 – CABINET PARTS

Products

Position	Product
1	MAY W10543539
1	MAY W10276070
1	MAY W10214832
2	MAY 12999502
2	MAY 12999501
3	MAY W10120087
4	MAY B5759655
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10	TOP HINGE (RIGHT HAND)
10	HINGE, TOP (LEFT HAND)
11	MAY W10339086
12	MAY W10120103
13	MAY W10120102
14	SCREW (6)
15	MAY W10135097
16	MAY 12777701
17	COVER, CORNER (GREY)
19	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	Screw (8)
22	GRILLE, TOE (GREY)
23	WPM0104106 Whirlpool Refrigerator Clip
24	MAY W10135096
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY W10528513
30	MAY W10211855
32	CLAMP, TUBE
33	Insulation, Sound
34	Brake, Foot
36	LINER (NOT A SERVICEABLE PART)
