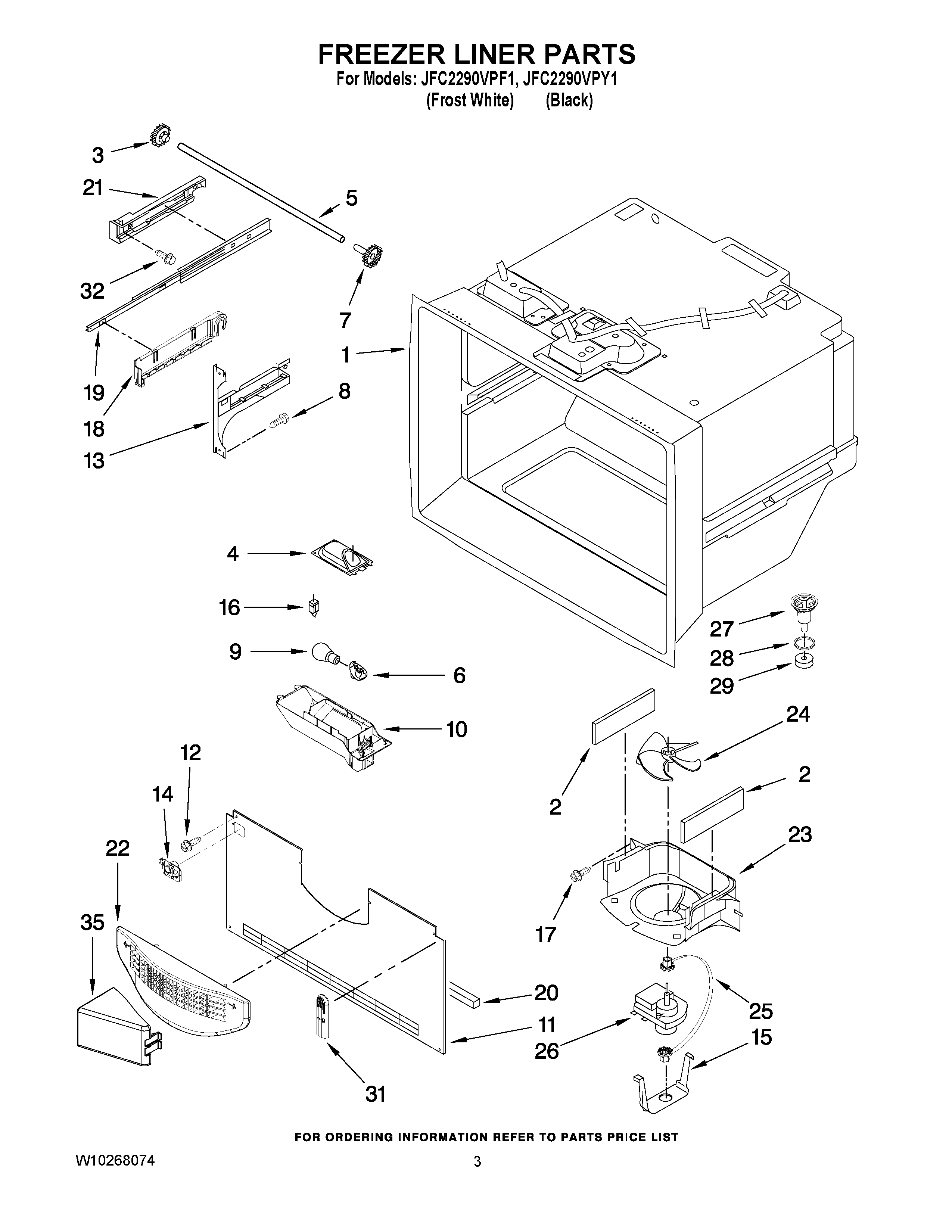

JFC2290VPF1 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY W10196195
2	Gasket, Bottom
4	MAY 12476401SP
5	SHAFT
6	MAY 12570701SP
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	Bulb, Light (2)
10	MODULE, FREEZER LIGHT
11	MAY 12226119
12	SCREW (10)
13	MAY W10119295
13	MAY W10119064
14	Guide, Fill Tube
15	CLIP, EVAP. MOTOR
16	MAY 12466105SP
17	MAY 12990504
18	CRADLE, BASKET (LEFT HAND)
18	CRADLE, BASKET (RIGHT HAND)
19	MAY W10165841
20	GASKET, BOTTOM
21	MAY 13042304
21	MAY 13042303
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
35	MAY W10157765
