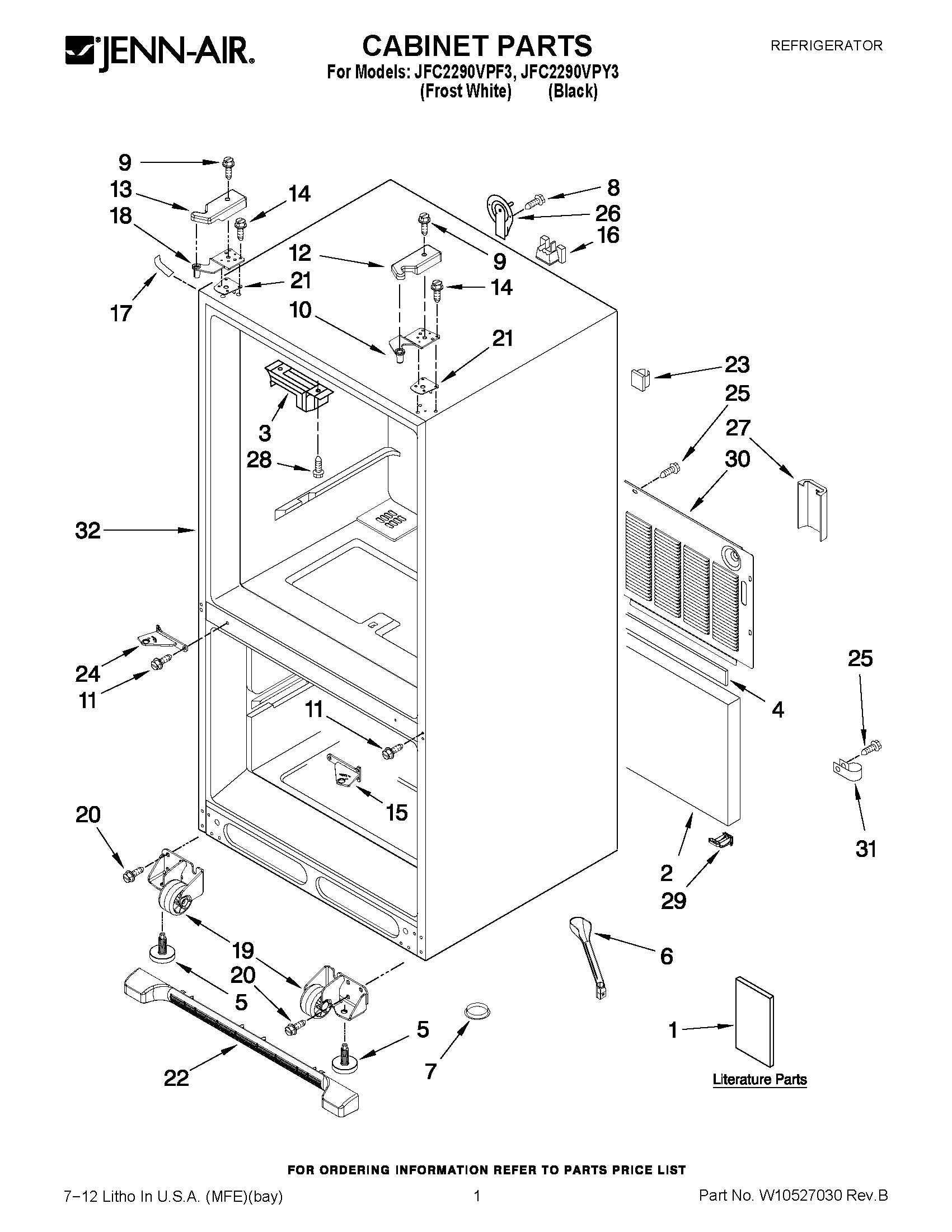

JFC2290VPF3 01 – CABINET PARTSadmin2025-04-26T09:01:24+00:00JFC2290VPF3 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10448051 |
| 1 | MAY W10214832 |
| 1 | MAY W10276070 |
| 2 | Insulation, Sound |
| 3 | MAY W10120087 |
| 4 | MAY B5759655 |
| 5 | Brake, Foot |
| 6 | MAY W10210988 |
| 7 | A3076901 Whirlpool Refrigerator Plug |
| 8 | MAY 12990504 |
| 9 | MAY 12992603 |
| 10 | TOP HINGE (RIGHT HAND) |
| 11 | MAY W10339086 |
| 12 | COVER, RIGHT HINGE (BLACK) |
| 12 | COVER, RIGHT HINGE (WHITE) |
| 13 | COVER, LEFT HINGE (BLACK) |
| 13 | COVER, LEFT HINGE (WHITE) |
| 14 | SCREW (6) |
| 15 | MAY W10210883 |
| 15 | HINGE, CENTER (RT) (WHITE) |
| 16 | MAY 12777701 |
| 17 | Cover, Corner (2) (White) |
| 17 | COVER, CORNER (BLACK) |
| 18 | HINGE, TOP (LEFT HAND) |
| 19 | ROLLER ASSY. (FRONT) (LEFT) |
| 19 | ROLLER ASSY. (FRONT) (RIGHT) |
| 20 | Screw (8) |
| 21 | MAY 12999501 |
| 21 | MAY 12999502 |
| 22 | MAY W10244561N |
| 22 | MAY W10244559N |
| 23 | WPM0104106 Whirlpool Refrigerator Clip |
| 24 | HINGE, CENTER (LT) (BLACK) |
| 24 | HINGE, CENTER (LT) (WHITE) |
| 25 | SCREW (10) |
| 26 | MAY 12726003 |
| 27 | GUARD-WATER VALVE |
| 28 | Screw (4) |
| 29 | MAY 12831101 |
| 30 | MAY W10211855 |
| 31 | CLAMP, TUBE |
| 32 | LINER (NOT A SERVICEABLE PART) |
