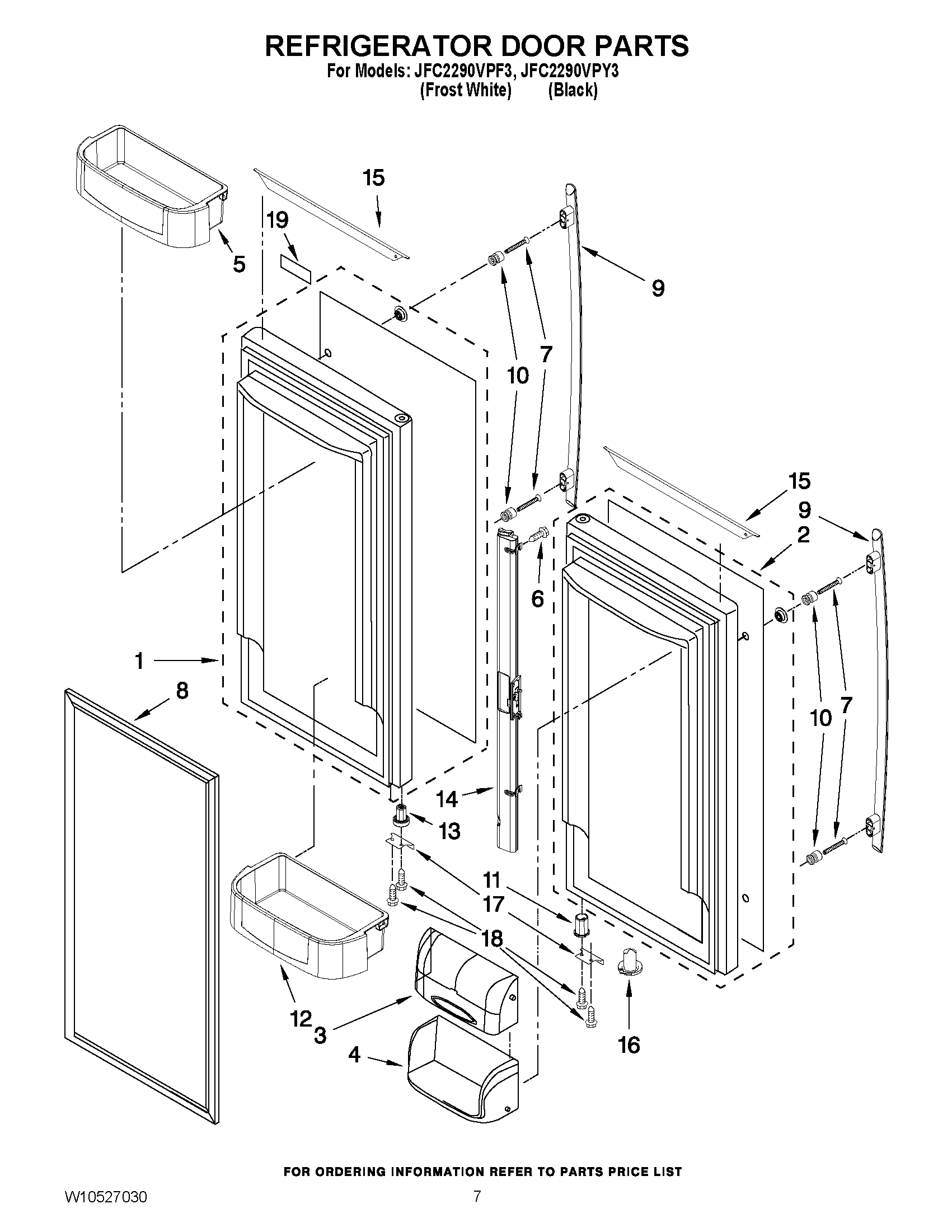

JFC2290VPF3 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 12894231W
1	MAY 12894231B
2	MAY 12894230B
2	MAY 12894230W
3	MAY 12804701SP
4	MAY 12369502SP
5	BUCKET, MEDIUM
6	MAY 12990204
7	MAY W10160454
8	GASKET, DOOR (2) (WHITE)
8	GASKET, DOOR (2) (BLACK)
9	DOOR HANDLE (BLACK)
9	MAY W10298202N
10	MAY 13001201
11	BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
11	BUSHING, DOOR (BOTTOM RIGHT)
12	BUCKET, GALLON
13	BUSHING, DOOR (BOTTOM LEFT) (BLACK)
13	BUSHING, DOOR (BOTTOM LEFT)
14	MAY W10163292
14	MULLION, DOOR (BLACK)
15	MAY W10259829
15	MAY W10261284
16	MAY 12028505W
16	MAY 12028505B
17	MAY W10153126
17	MAY W10163249
18	MAY 12990504
19	ASSEMBLY, BADGE (BLACK)
19	ASSEMBLY, BADGE (WHITE)
