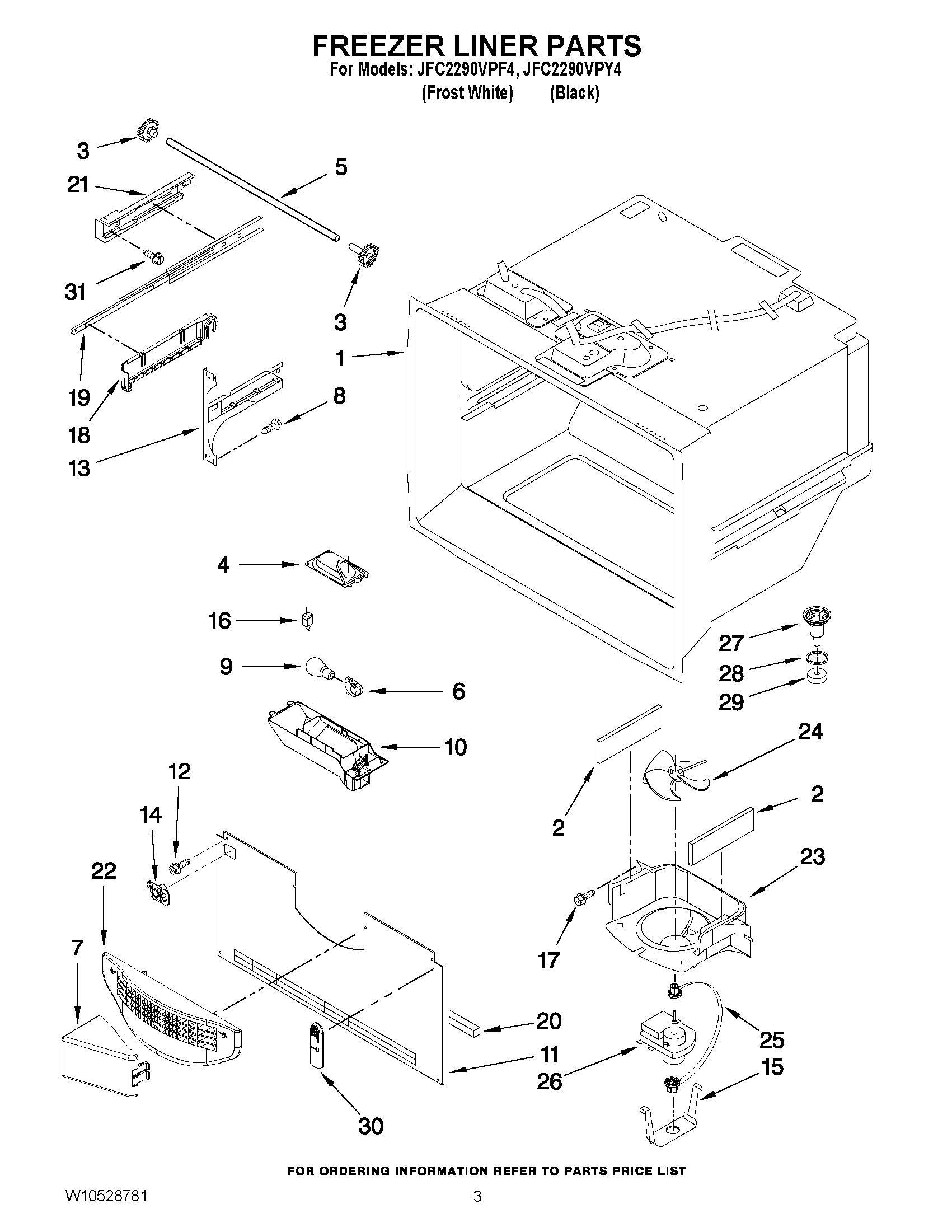

JFC2290VPF4 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY W10196195
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12476401V
5	SHAFT
6	Socket, Light
7	MAY W10157765
8	Screw (8)
9	BULB, LIGHT
10	MODULE, FREEZER LIGHT
11	MAY W10308420
12	SCREW (10)
13	MAY W10330991
13	MAY W10330993
14	Guide, Fill Tube
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12990504
18	CRADLE, BASKET (LEFT HAND)
18	CRADLE, BASKET (RIGHT HAND)
19	MAY W10488001N
20	GASKET, BOTTOM
21	ADAPTER, SLIDE (RIGHT HAND)
21	ADAPTER, SLIDE (LEFT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	MAY 12815301
31	Screw (6)
