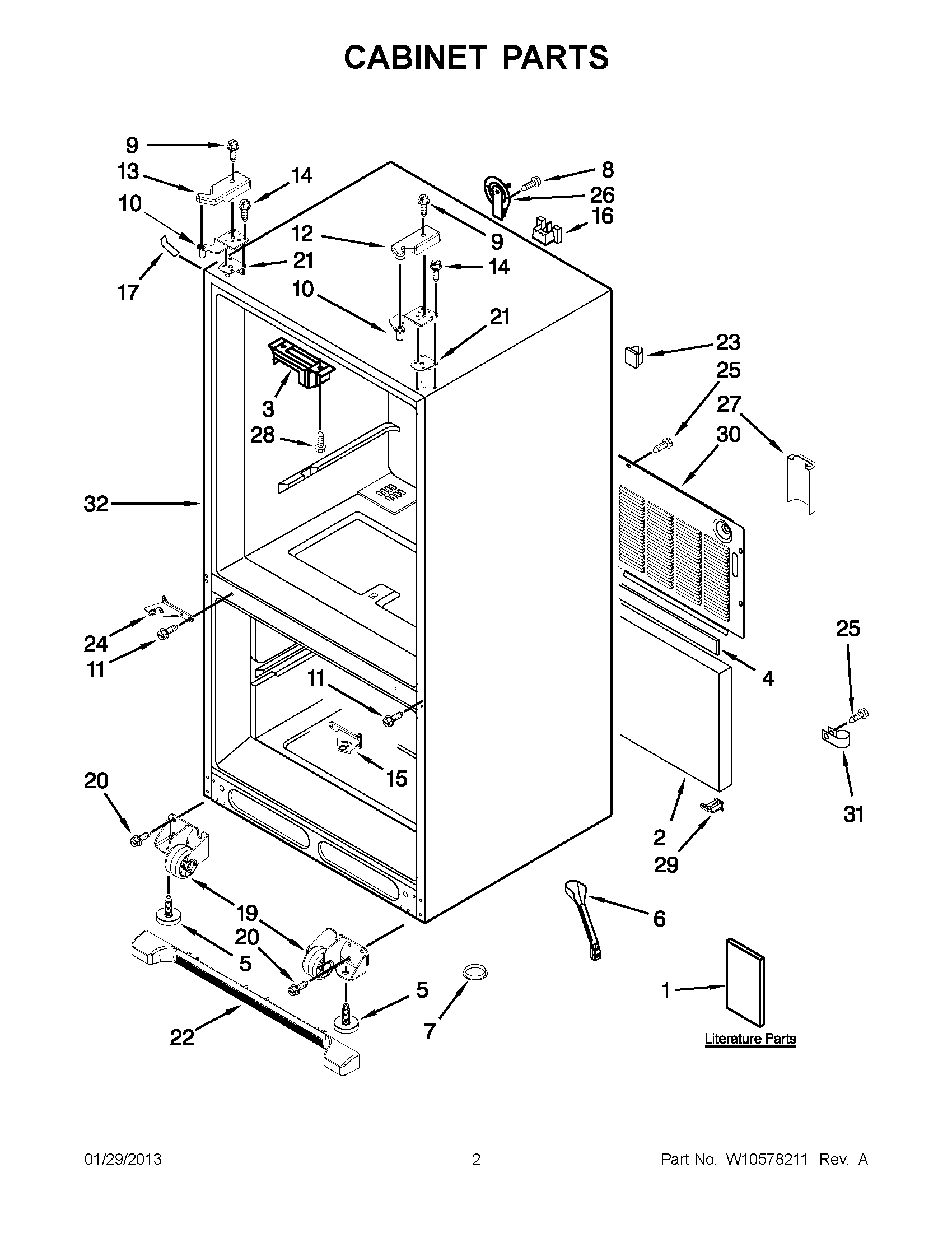

JFC2290VPF5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10543539
1	MAY W10276070
1	MAY W10214832
2	Insulation, Sound
3	MAY W10120087
4	MAY B5759655
5	Brake, Foot
6	TUBE-DRAIN
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10	TOP HINGE (RIGHT HAND)
10	HINGE, TOP (LEFT HAND)
11	MAY W10339086
12	COVER, RIGHT HINGE (BLACK)
12	COVER, RIGHT HINGE (WHITE)
13	COVER, LEFT HINGE (BLACK)
13	COVER, LEFT HINGE (WHITE)
14	SCREW (6)
15	MAY W10210883
15	HINGE, CENTER (RT) (WHITE)
16	MAY 12777701
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
19	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	MAY W10244559N
22	MAY W10244561N
23	WPM0104106 Whirlpool Refrigerator Clip
24	HINGE, CENTER (LT) (BLACK)
24	HINGE, CENTER (LT) (WHITE)
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY W10528513
30	MAY W10211855
31	CLAMP, TUBE
32	LINER (NOT A SERVICEABLE PART)
