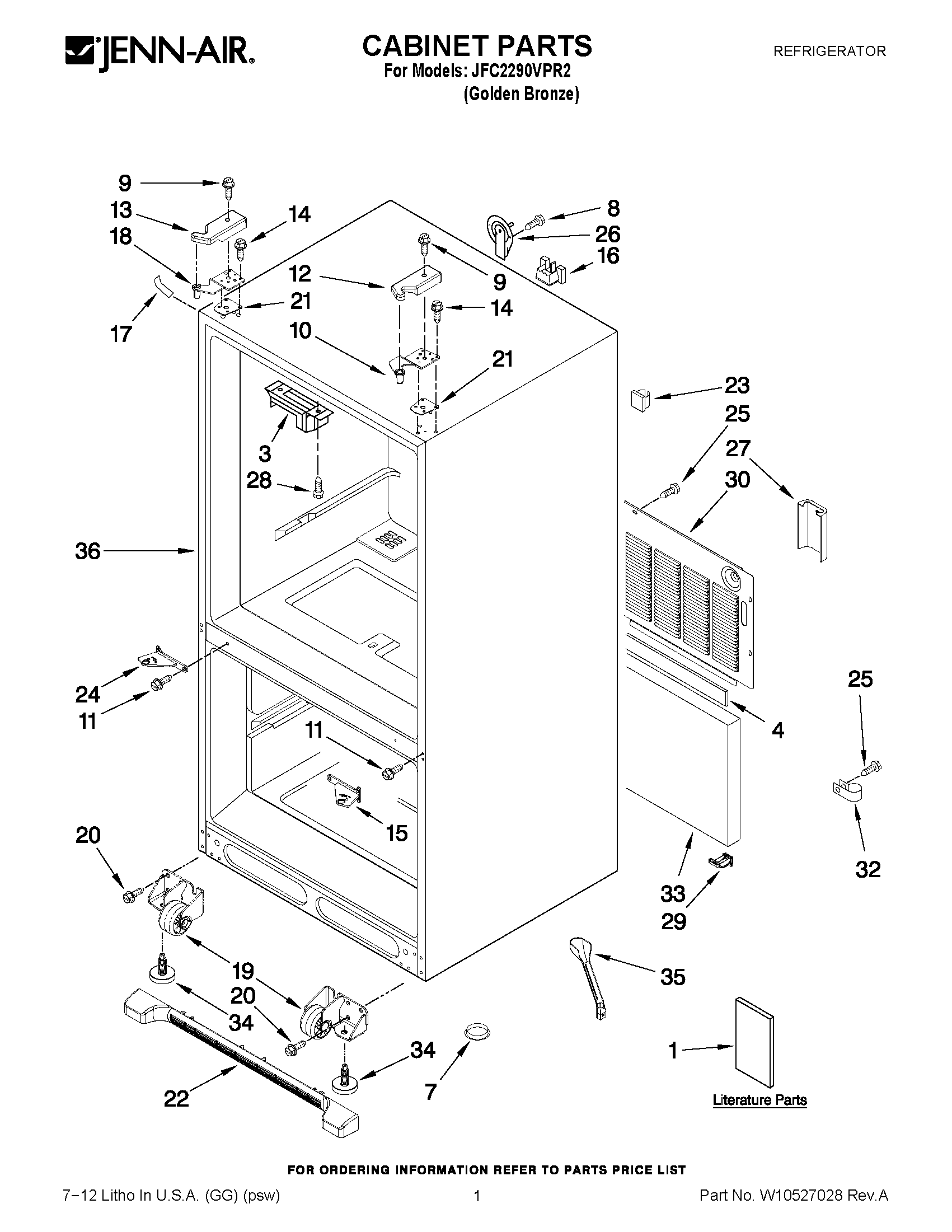

JFC2290VPR2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10448051
1	MAY W10276070
1	MAY W10214832
3	MAY W10120087
4	MAY B5759655
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10	TOP HINGE (RIGHT HAND)
11	MAY W10339086
12	COVER, RIGHT HINGE (BLACK)
13	COVER, LEFT HINGE (BLACK)
14	SCREW (6)
15	MAY W10210883
16	MAY 12777701
17	COVER, CORNER (BLACK)
18	HINGE, TOP (LEFT HAND)
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	MAY W10244561N
23	WPM0104106 Whirlpool Refrigerator Clip
24	HINGE, CENTER (LT) (BLACK)
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY 12831101
30	MAY W10211855
32	CLAMP, TUBE
33	Insulation, Sound
34	Brake, Foot
35	MAY W10210988
36	LINER (NOT A SERVICEABLE PART)
