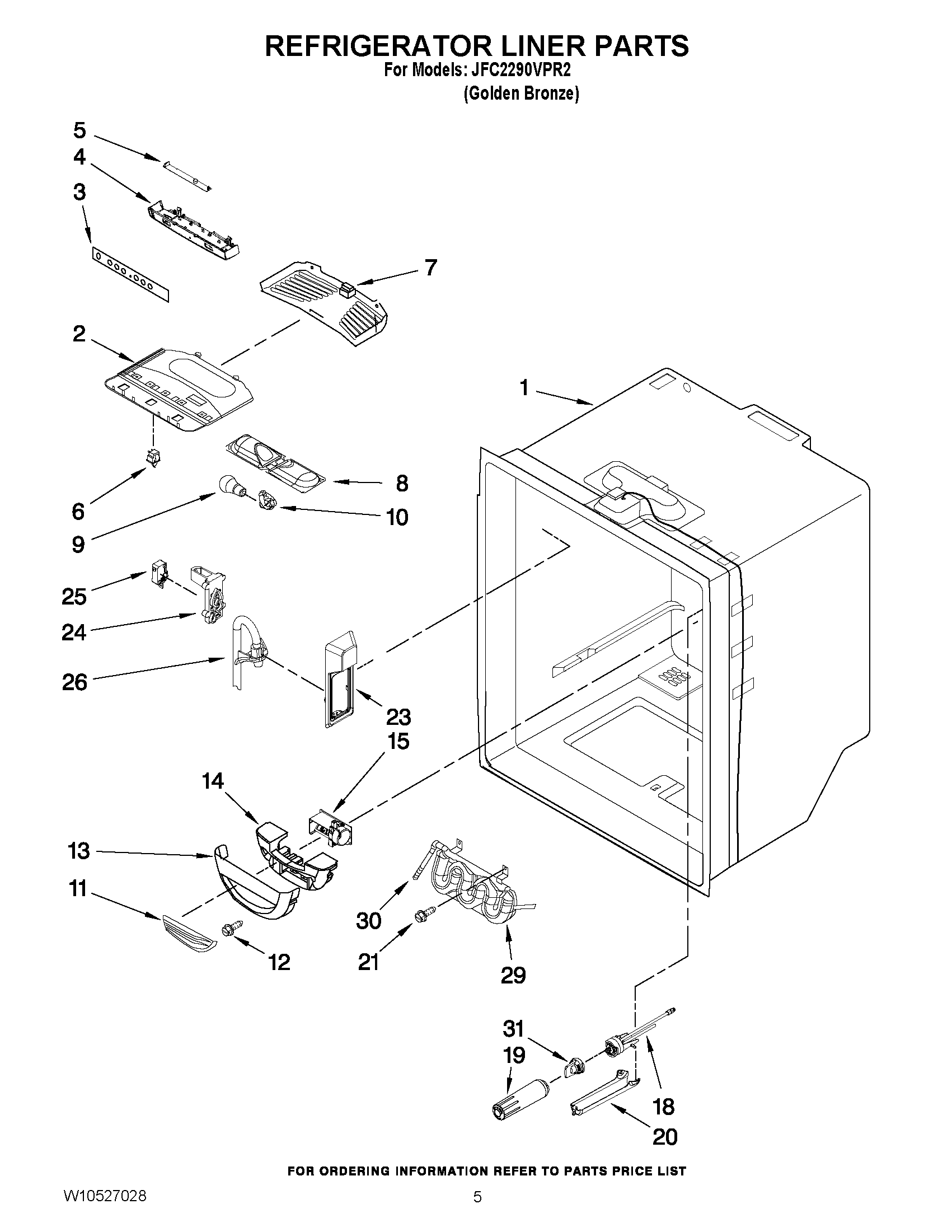

JFC2290VPR2 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	MAY W10391289
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10464766
3	MAY W10316413
4	MAY W10464767
5	MAY W10116216
6	W11291138 Whirlpool Refrigerator Door Switch
7	MAY 12806501N
8	MAY W10443023
9	BULB, LIGHT
10	Socket, Light
11	MAY 12806801
12	MAY 12990604
13	MAY 12806701
14	INSULATION
15	MAY W10207517
18	MAY 12590621
19	MAY UKF8001
20	WP12568001 Whirlpool Filter Cover
21	MAY 12990504
23	FACADE, DISPENSER
24	PLUNGER SWITCH
25	MAY 12575502
26	MAY W10117324
29	MAY 12706109
30	WP2300868 Whirlpool Refrigerator Fitting
31	MAY 12664501SP
