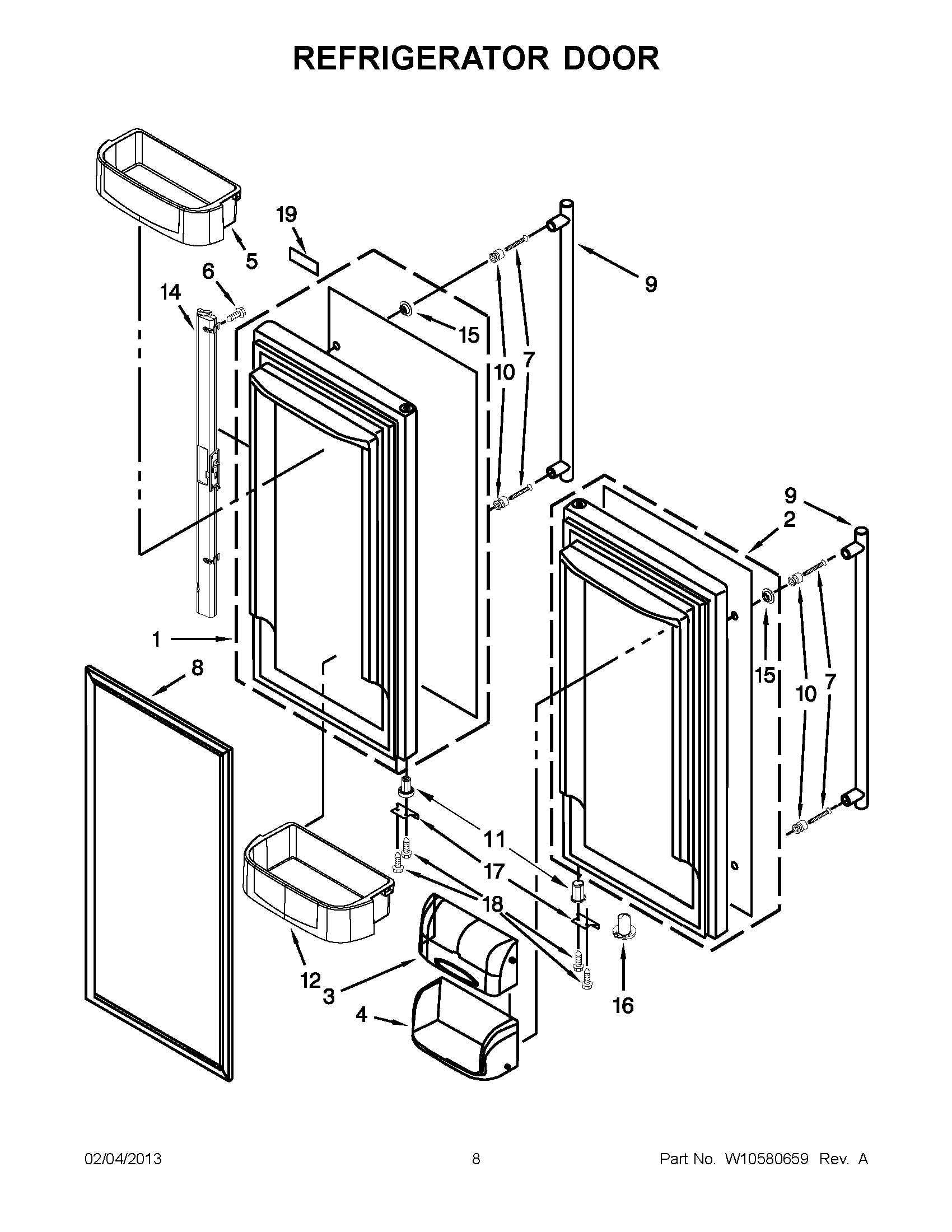

JFC2290VPR4 04 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY 12894247R
2MAY 12894233R
3MAY 12804701SP
4MAY 12369502SP
5BUCKET, MEDIUM
6MAY 12990204
7MAY W10160454
8GASKET, DOOR (2) (BLACK)
9MAY W10298245
10MAY 13001201
11BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
12BUCKET, GALLON
14MAY 12732508B
15SPACER, HANDLE (BLACK)
16MAY 12028505B
17MAY W10153126
18MAY 12990504
19ASSEMBLY, BADGE (OILED BRONZE)
