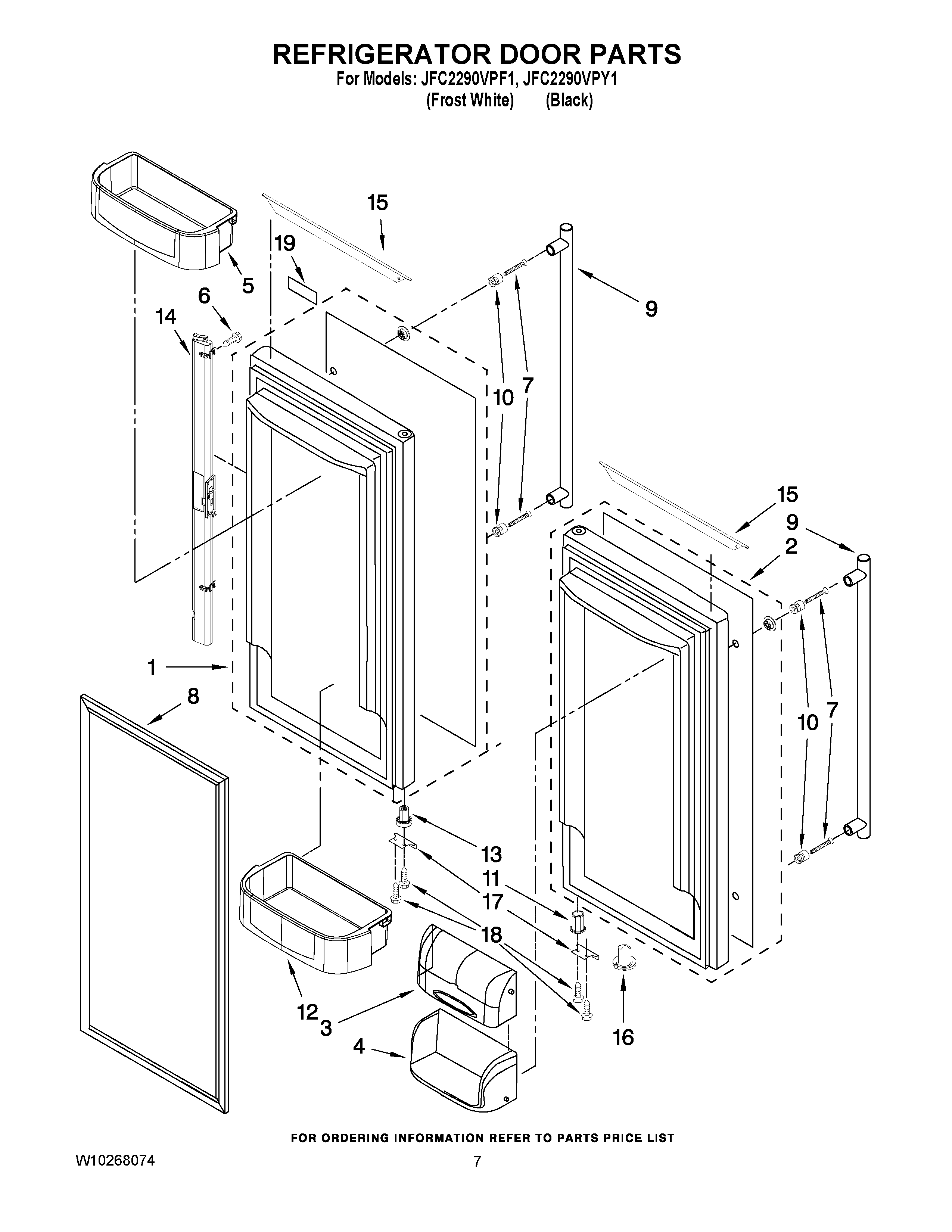

JFC2290VPY1 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 12894231WQ
1	MAY 12894231BQ
2	MAY 12894230BQ
2	MAY 12894230WQ
3	MAY 12804701SP
4	MAY 12369502SP
5	BUCKET, MEDIUM
6	MAY 12990204
7	Screw, Handle
8	GASKET, DOOR (2) (WHITE)
8	GASKET, DOOR (2) (BLACK)
9	MAY W10237392
9	MAY W10237391
10	MAY 13001201
11	BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
11	BUSHING, DOOR (BOTTOM RIGHT)
12	BUCKET, GALLON
13	BUSHING, DOOR (BOTTOM LEFT)
13	BUSHING, DOOR (BOTTOM LEFT) (BLACK)
14	MAY 12732508B
14	MAY 12732508W
15	MAY W10261284
15	MAY W10259829
16	MAY 12028505B
16	MAY 12028505W
17	MAY W10163249
17	MAY W10153126
18	MAY 12990504
19	MAY W10190708
19	MAY W10190709
