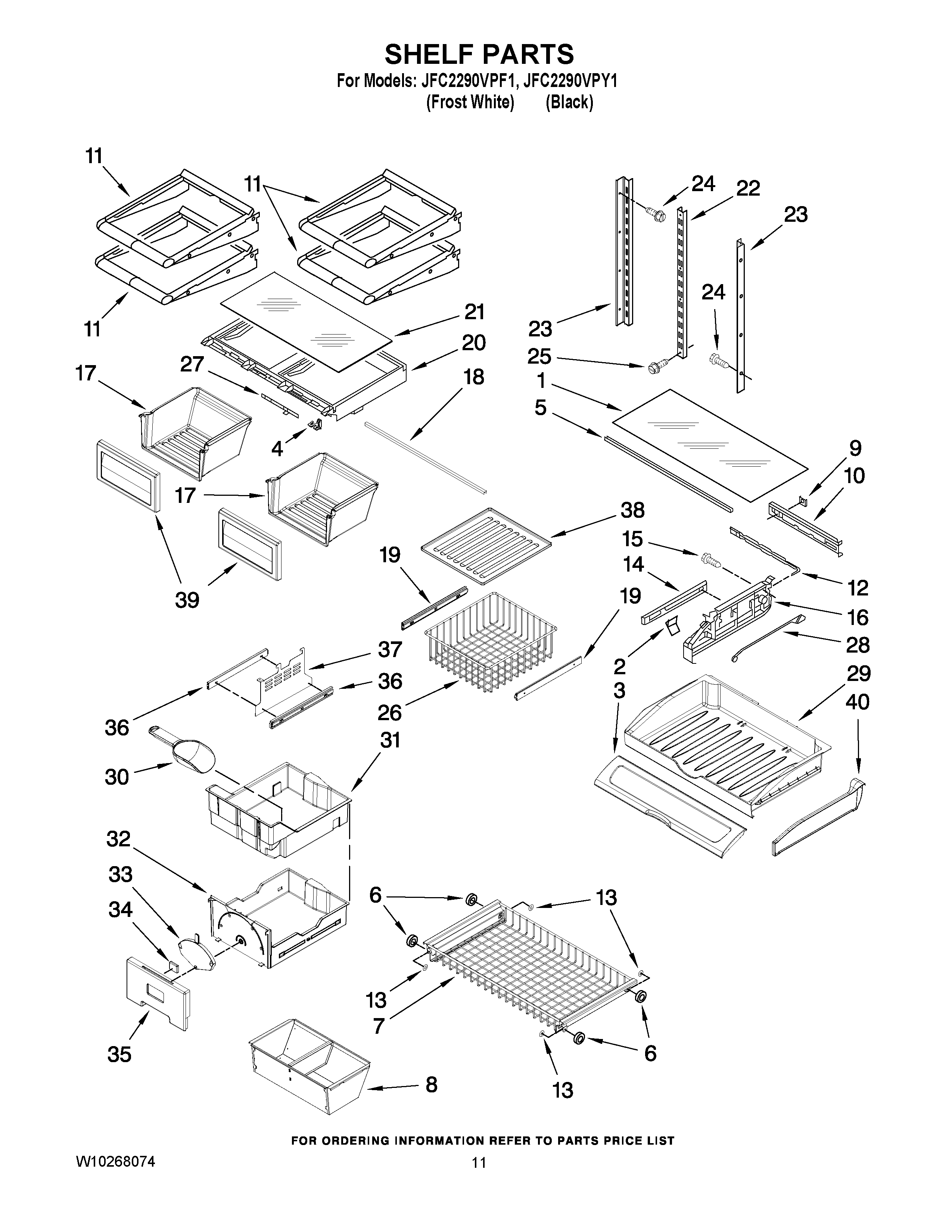

JFC2290VPY1 06 – SHELF PARTS
Written by
in
JFC2290VPY1 06 – SHELF PARTS
Products
Position
Product
1
MAY 12204815
2
MAY 12655204V
3
MAY 12656822
4
KNOB, HUMIDITY CONTROL
5
MAY 12227305WD
6
Roller, Basket
7
MAY W10119854
8
MAY W10144706
9
MAY 12656901
10
MAY 12656202
11
MAY W10156631
12
SLIDE, TEMPERATURE
13
NUT, HEX
14
GLIDE, DRAWER (LEFT HAND)
14
GLIDE, DRAWER (RIGHT HAND)
15
MAY 12990504
16
ENDCAP, PANTRY (RIGHT HAND)
16
ENDCAP, PANTRY (LEFT HAND)
17
MAY W10119219
18
MAY W10119258
19
MAY W10170836
20
MAY W10119215
21
MAY 12204827
22
MAY 12435807
23
MAY 12710606
24
MAY 12990513
25
MAY 12990515
26
MAY W10120003
27
MAY W10119217
28
ROD, TEMPERATURE CONTROL
29
MAY 12655703
30
MAY W10182881
31
MAY W10120005
32
MAY W10120008
33
MAY W10184030
34
MAY W10131252
35
MAY W10174720
36
MAY W10170835
37
MAY W10120014
38
MAY W10184358
39
MAY W10212414
40
DIVIDER, PANTRY DRAWER
←
