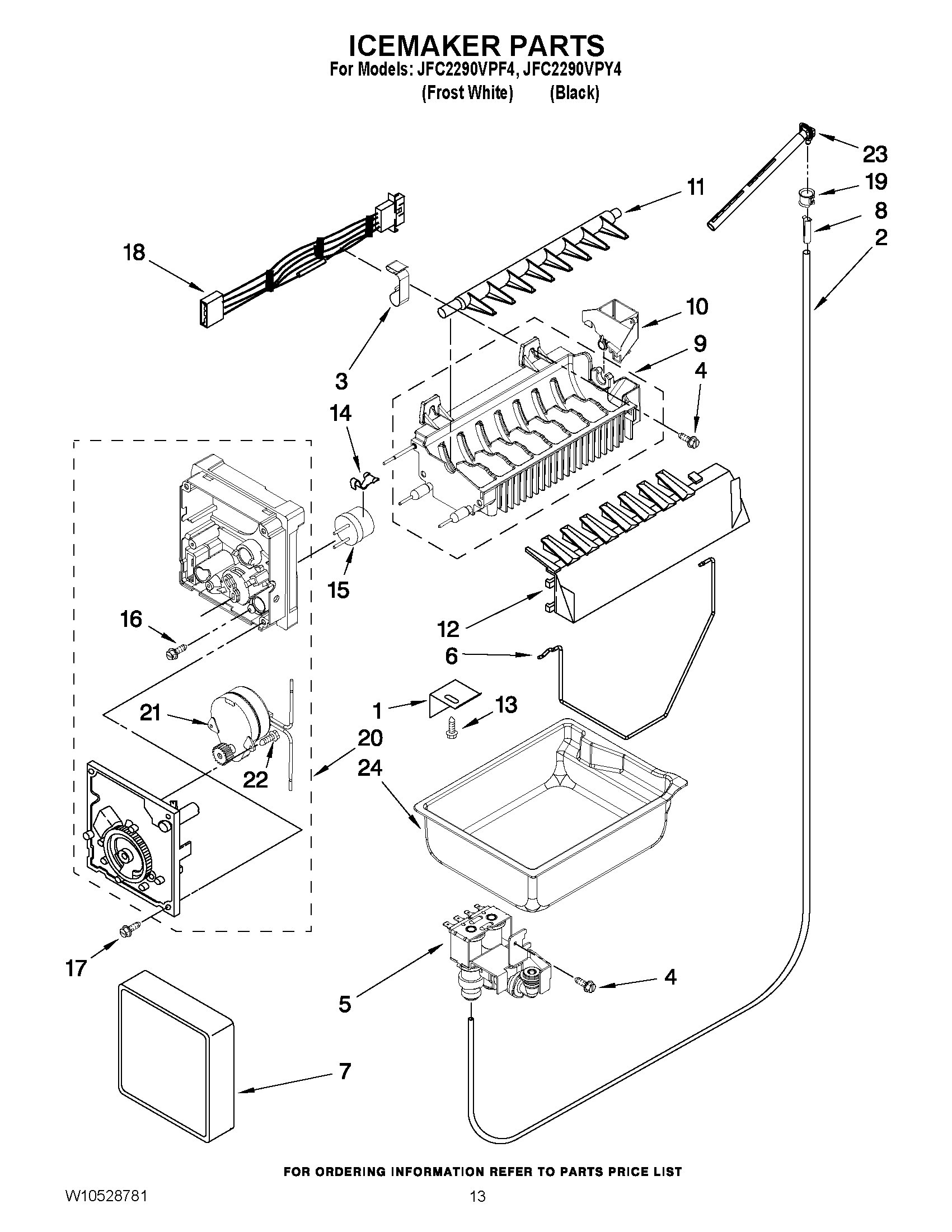

JFC2290VPY4 07 – ICEMAKER PARTSadmin2025-04-26T09:01:11+00:00JFC2290VPY4 07 – ICEMAKER PARTS ProductsPositionProduct1MAY 22560862MAY B57053333CLAMP, WIRE4SCREW (10)5VALVE, WATER INLET6ARM, SHUT OFF7MAY W103771748MAY A32231019ASSEMBLY, MOLD AND HEATER10MAY W1041007311MAY W1031891412ICE STRIPPER14Clip15MAY W1029033616MAY 853391717Screw (3)18MAY W1045898519Clip20ASSEMBLY, MODULE AND MOTOR21LINER (NOT A SERVICEABLE PART)22MAY 48913623MAY 1046320324MAY W10120005100ICEMAKER ASSEMBLY (COMPLETE)
