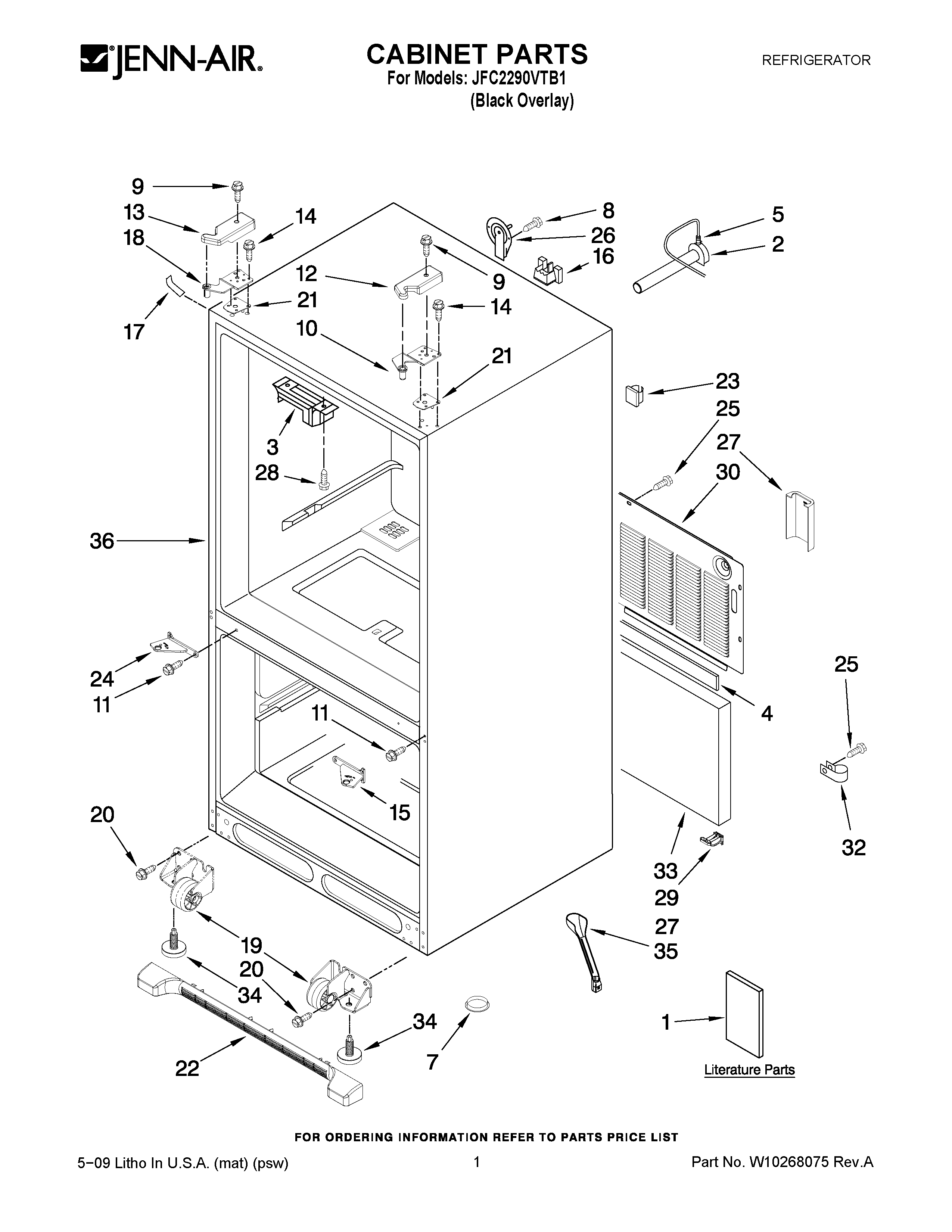

JFC2290VTB1 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	MAY W10238853
2	MAY 10463203SP
3	MAY W10120087
4	MAY B5759655
5	CLIP
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10	TOP HINGE (RIGHT HAND)
11	SCREW (6)
12	COVER, RIGHT HINGE (BLACK)
13	COVER, LEFT HINGE (BLACK)
14	SCREW (6)
15	MAY W10210883
16	MAY 12777701
17	COVER, CORNER (BLACK)
18	HINGE, TOP (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT SIDE)
19	ROLLER ASSEMBLY (LEFT SIDE)
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	WPM0104106 Whirlpool Refrigerator Clip
24	HINGE, CENTER (LT) (BLACK)
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY 12831101
30	MAY W10211855
32	W10833902 Whirlpool Refrigerator Clamp
33	Insulation, Sound
34	Brake, Foot
35	MAY W10210988
