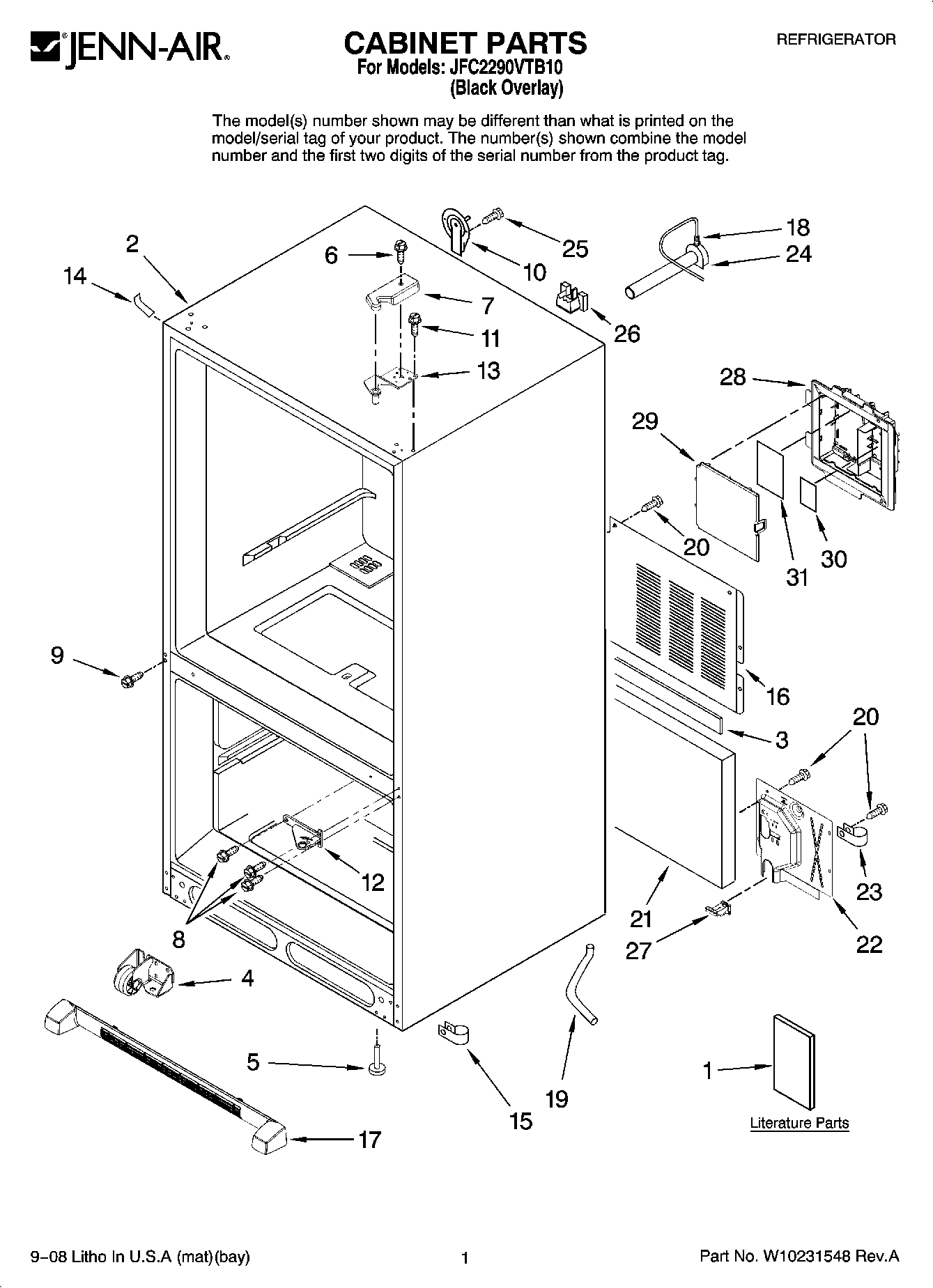

JFC2290VTB10 01 – CABINET PARTS

Products

PositionProduct
1MAY W10214832
1MAY 12827964
1Use & Care Guide
3Gasket
4ROLLER ASSEMBLY (LEFT SIDE)
4ROLLER ASSEMBLY (RIGHT SIDE)
5Brake, Foot
6WP8281196 Whirlpool Screw
7COVER, RIGHT HINGE (BLACK)
7COVER, LEFT HINGE (BLACK)
8WP67006380 Whirlpool Screw
9MAY 67006400
10COVER, WATER LINE
11WP489349 Whirlpool Refrigerator Screw
12HINGE, CENTER (LT) (BLACK)
12MAY W10210883
13TOP HINGE (RIGHT HAND)
13HINGE, TOP (LEFT HAND)
1467003485 Whirlpool Refrigerator Corner Cover (Black)
15MAY W10157973
16MAY 67006102
17Grille Assembly (Includes Clips) (Black)
18Clip
19MAY W10164397
20Screw (10)
2167003796 Whirlpool Refrigerator Fiber Acoustic
22MAY 12751509
23W10833902 Whirlpool Refrigerator Clamp
24MAY W10137519
25WP98165 Whirlpool Screw
26WP12777701 Whirlpool Refrigerator Filler Block
2712831101 Whirlpool Refrigerator Tube Clamp
28MAY W10119790
29MAY W10203258
30CONTROL, POWER SUPPLY ELECTRONIC
31CONTROL, ELECTRONIC
