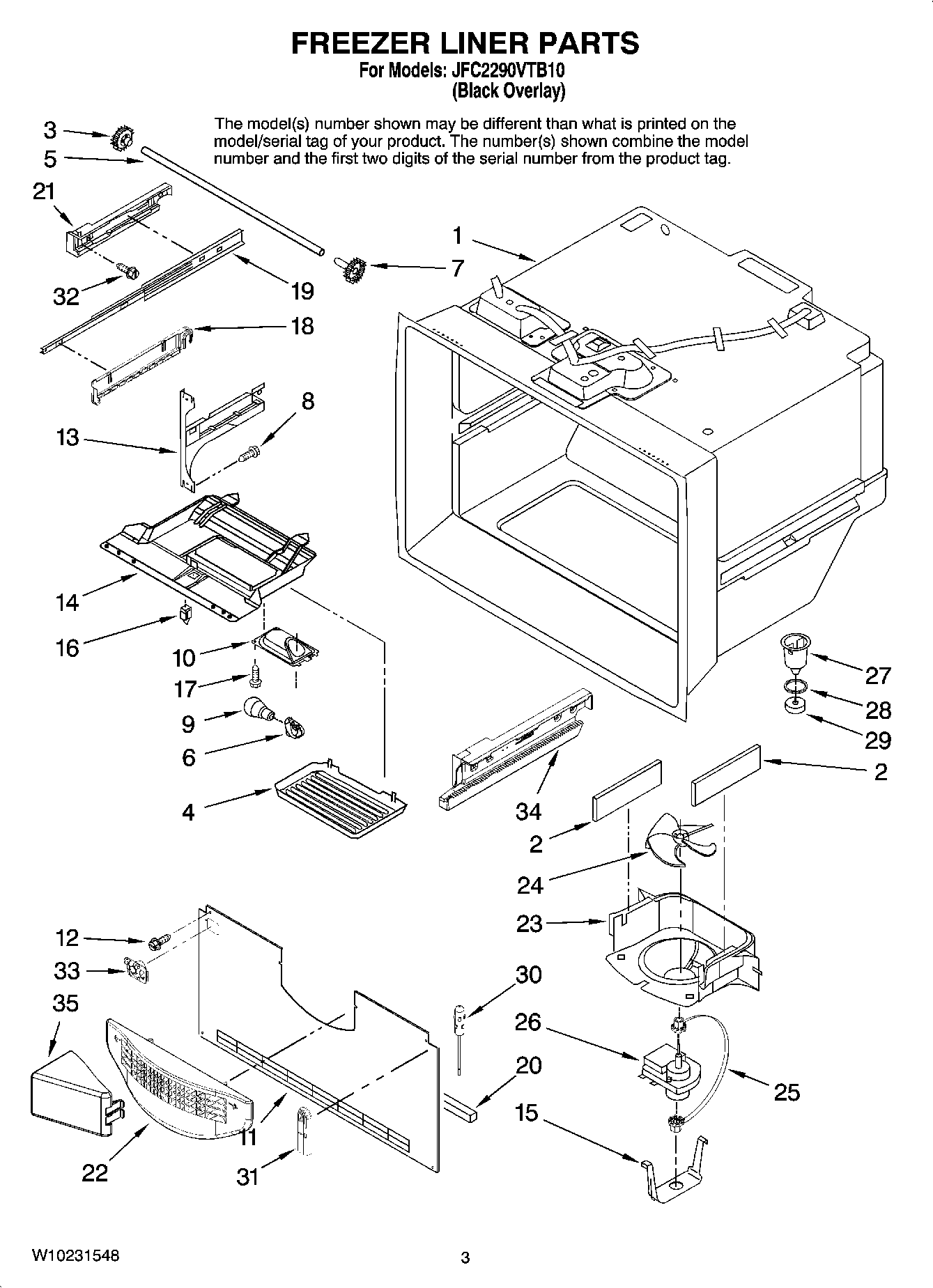

JFC2290VTB10 02 – FREEZER LINER PARTS

Products

PositionProduct
NIMAY W10196195
2W10856123 Whirlpool Refrigerator Gasket
4MAY 67003905
5W11028221 Whirlpool Refrigerator Shaft
6Socket, Light (2)
712002497 Whirlpool Refrigerator Drawer Gear Kit
8Screw (8)
9RANGE ONLY 40W 120V APPL BULB
10MAY 67001035
11MAY W10203139
12Screw (10)
13MAY W10119064
13MAY W10119295
14MODULE, FREEZER LIGHT
15MAY 10623002
16MAY 67005653
17MAY 67006662
18CRADLE, BASKET (LEFT HAND)
18CRADLE, BASKET (RIGHT HAND)
19MAY W10165841
20Gasket, Bottom
21ADAPTER (LEFT HAND)
21ADAPTER (RIGHT HAND)
22MAY W10175909
23SHROUD, EVAP FAN
24Blade, Fan (Evaporator)
25MAY W10150583
26Motor, Evaporator
27MAY D7753903
28MAY M0500703
29Gasket
30MAY W10203133
31WP67003924 Whirlpool Refrigerator Cover
32Screw (6)
33Guide, Fill Tube
34MAY W10203148
34MAY W10203149
35MAY W10157765
