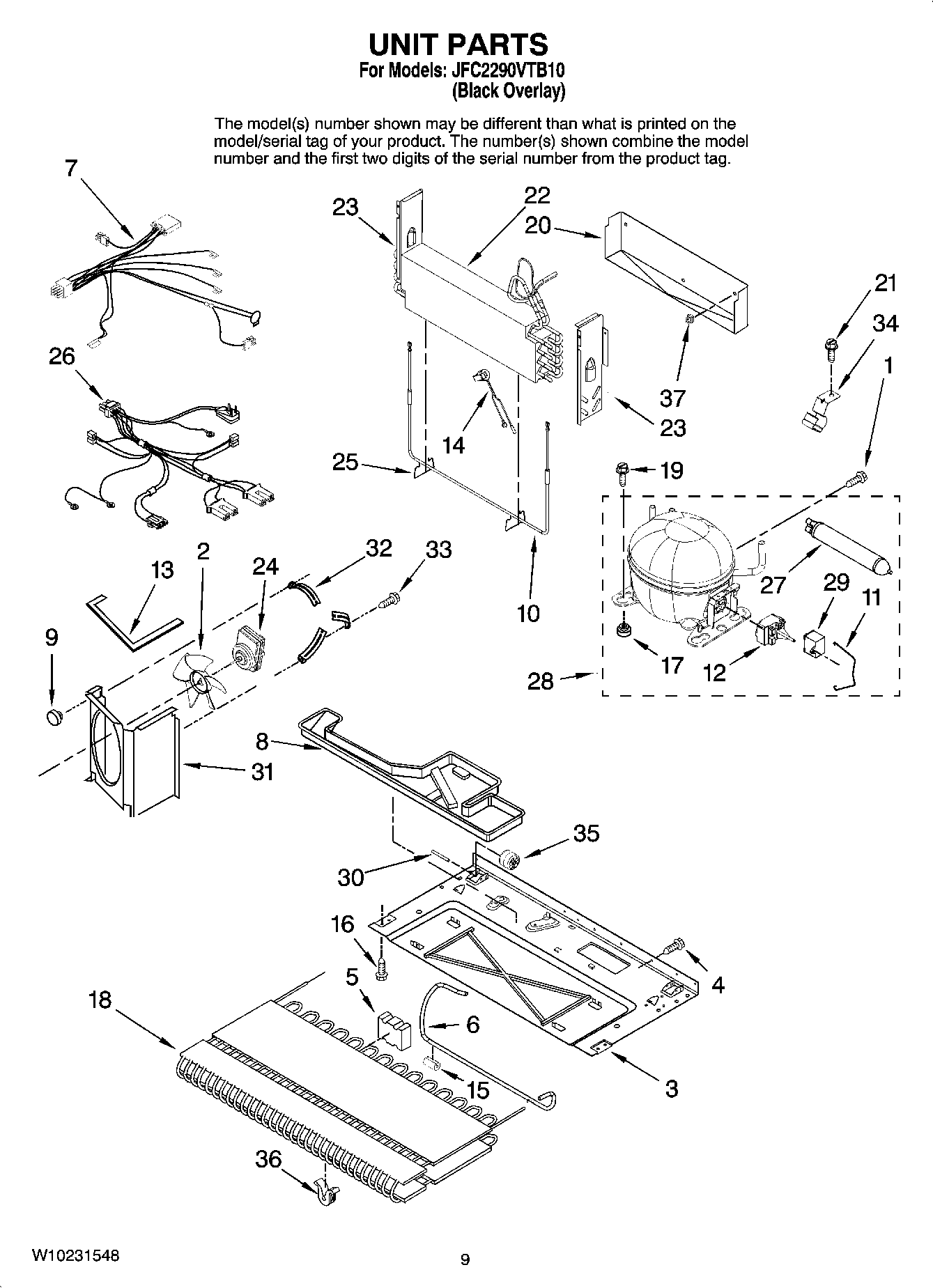

JFC2290VTB10 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (3/4“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
1	MAY 67006433
2	MAY W10156818
3	MAY 67005889
4	Screw (10)
5	MAY 67005491
6	MAY W10134293
7	MAY W10196196
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
11	MAY 2255199
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
13	Gasket, Bottom
14	Thermostat
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	Screw (4)
17	MAY W10169124
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 67006432
20	MAY 67002490
21	SCREW
22	MAY W10203111
23	MAY W10203108
23	MAY W10203109
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	MAY W10137210
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	Capacitator (Production)
30	67006434 Whirlpool Axle Pin
31	Shroud, Condenser
32	MAY 67004953
33	WP67004954 Whirlpool Refrigerator Screw
34	MAY 10547003
35	WP67005149 Whirlpool Roller
36	GROMMET, COND (4)
37	CLIP, EVAP. MOTOR
