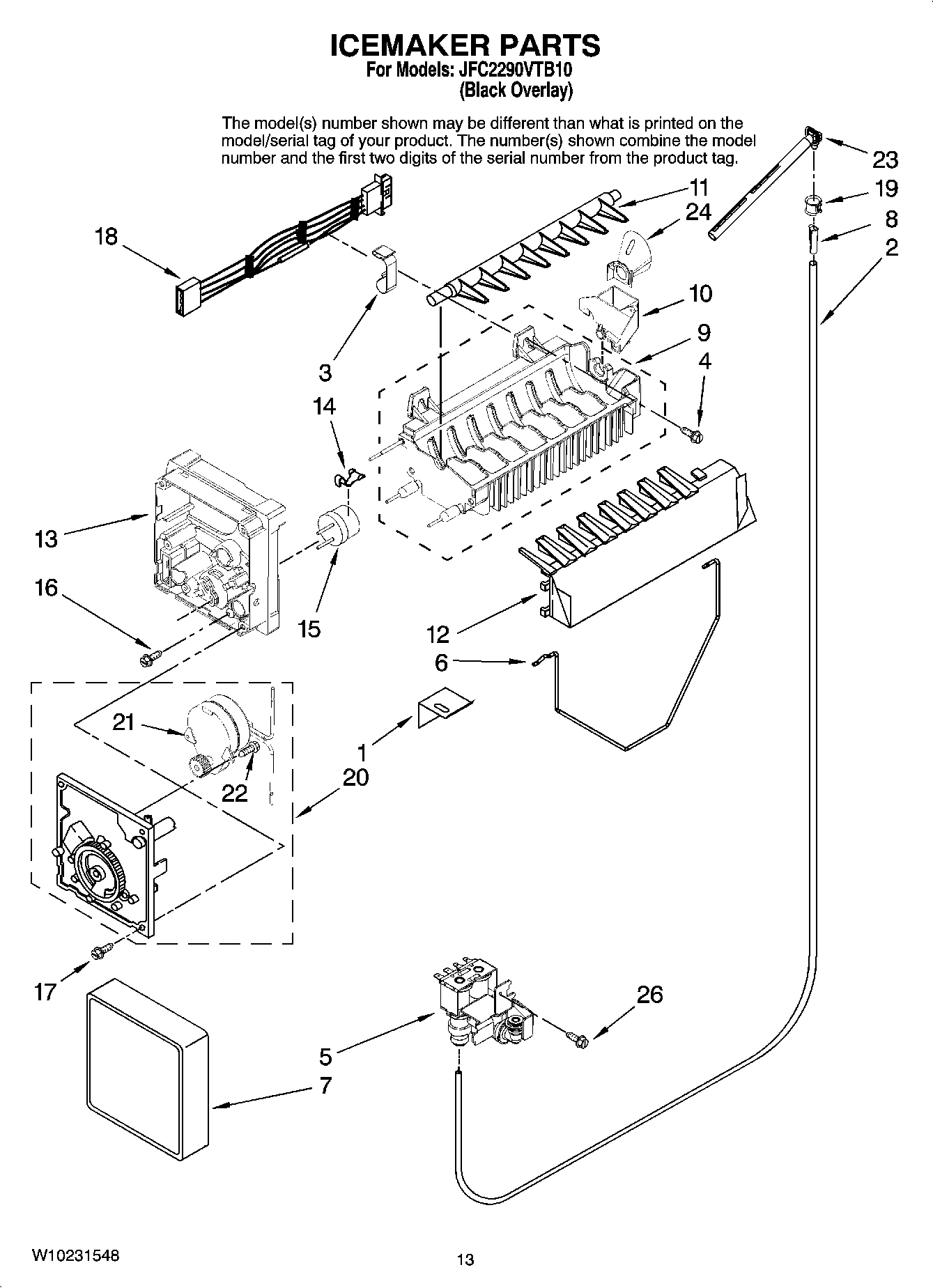

JFC2290VTB10 07 – ICEMAKER PARTS

Products

Position	Product
1	MAY W10157923
2	Tubing, Plastic
3	MAY 67003932
4	MAY 489276
5	WP67006531 Whirlpool Water Inlet Valve
6	ARM-SHUT
7	MAY W10153710
8	MAY A3223101
9	MAY W10122527
10	Cup, Fill
11	MAY 627843
12	MAY 2182124
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	Screw (3)
18	HARNESS, ICEMAKER
19	Clip
20	Module Assembly (Includes Items 21& 22)
21	MAY 626684
22	MAY 489136
23	MAY W10137519
24	W11181718 Whirlpool Refrigerator Water Tube
26	MAY 67006662
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
