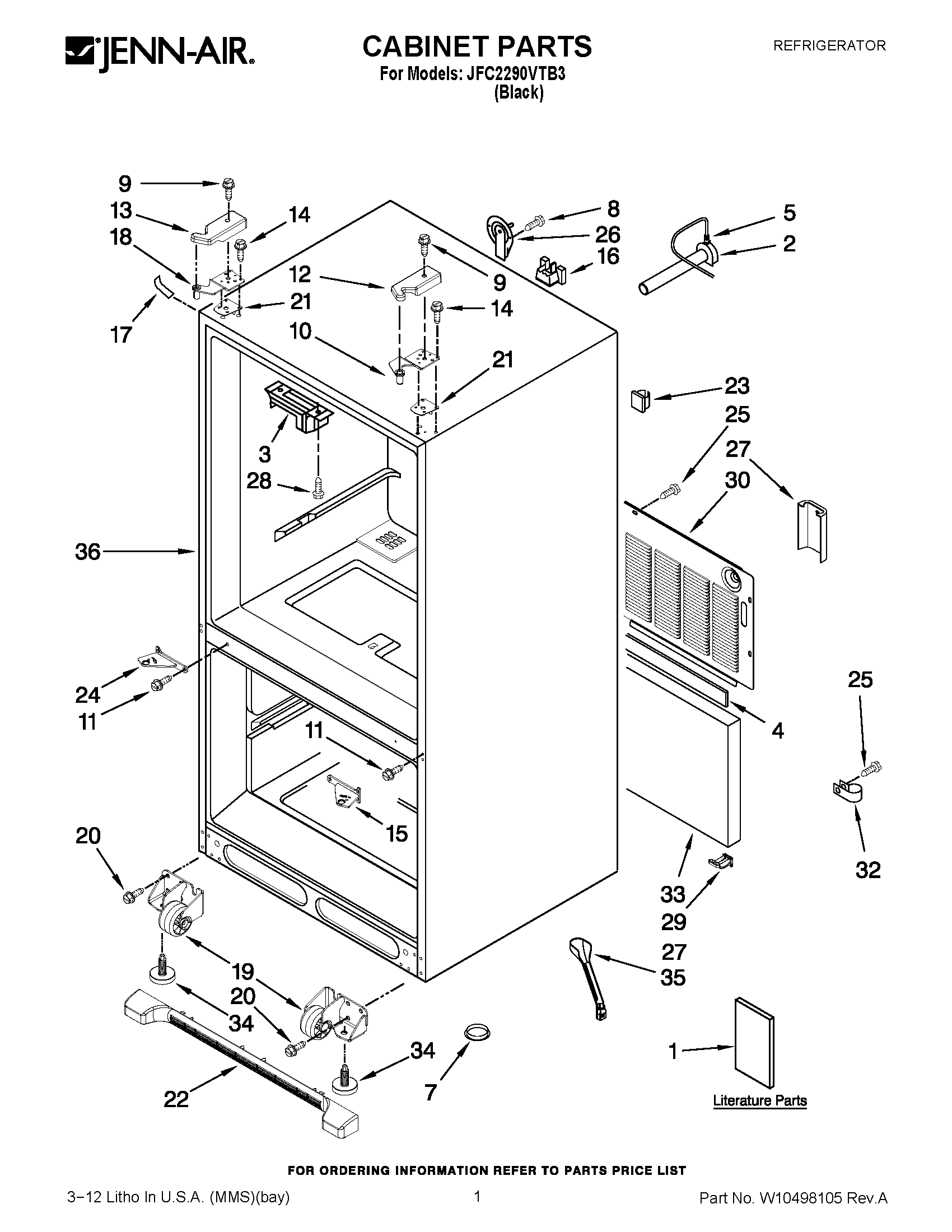

JFC2290VTB3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10448051
1MAY W10214832
1MAY W10276070
2MAY 10463203SP
3MAY W10120087
4MAY B5759655
5CLIP
7A3076901 Whirlpool Refrigerator Plug
8MAY 12990504
9MAY 12992603
10TOP HINGE (RIGHT HAND)
11MAY W10339086
12COVER, RIGHT HINGE (BLACK)
13COVER, LEFT HINGE (BLACK)
14SCREW (6)
15MAY W10210883
16MAY 12777701
17COVER, CORNER (BLACK)
18HINGE, TOP (LEFT HAND)
19ROLLER ASSY. (FRONT) (LEFT)
19ROLLER ASSY. (FRONT) (RIGHT)
20Screw (8)
21MAY 12999501
21MAY 12999502
22MAY W10244561N
23WPM0104106 Whirlpool Refrigerator Clip
24HINGE, CENTER (LT) (BLACK)
25SCREW (10)
26MAY 12726003
27GUARD-WATER VALVE
28Screw (4)
29MAY 12831101
30MAY W10211855
32W10833902 Whirlpool Refrigerator Clamp
33Insulation, Sound
34Brake, Foot
35MAY W10210988
36LINER (NOT A SERVICEABLE PART)
