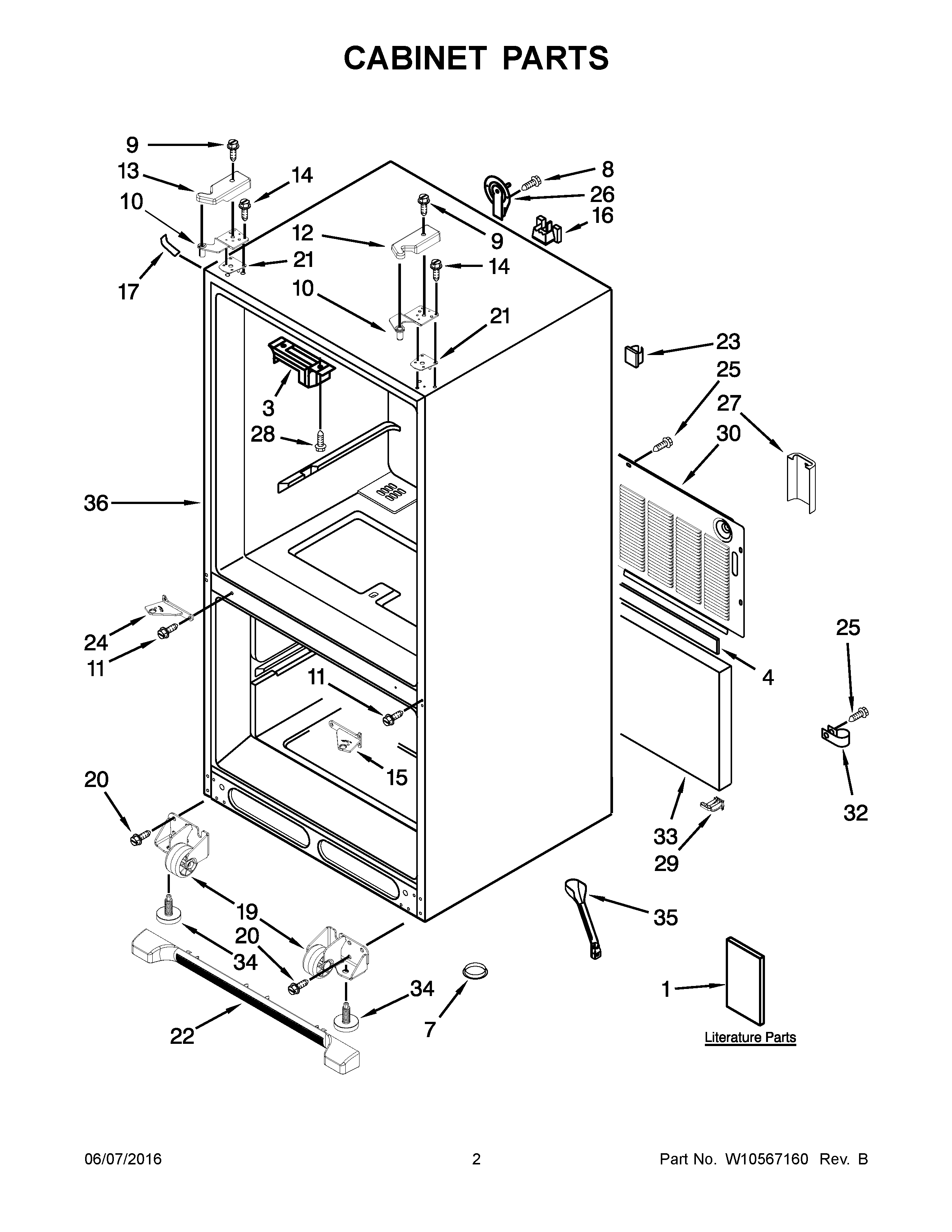

JFC2290VTB5 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10276070
1B	MAY W10729262
1	MAY W10543539
3	MAY W10120087
4	MAY B5759655
7	A3076901 Whirlpool Refrigerator Plug
8	MAY 12990504
9	MAY 12992603
10A	HINGE, TOP (LEFT HAND)
10	TOP HINGE (RIGHT HAND)
11	MAY W10673840
12	COVER, RIGHT HINGE (BLACK)
13	COVER, LEFT HINGE (BLACK)
14	SCREW (6)
15	MAY W10210883
16	MAY W10658542
17	COVER, CORNER (BLACK)
19A	ROLLER ASSEMBLY (LEFT HAND)
19	ROLLER ASSEMBLY (RIGHT HAND)
20	MAY W10709365
21A	MAY 12999502
21	MAY 12999501
22	GRILLE, TOE (BLACK)
23	WPM0104106 Whirlpool Refrigerator Clip
24	HINGE, CENTER (LT) (BLACK)
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	Screw (4)
29	MAY W10528513
30	MAY W10211855
32	CLAMP, TUBE
33	Insulation, Sound
34	Brake, Foot
35	TUBE-DRAIN
36	LINER (NOT A SERVICEABLE PART)
