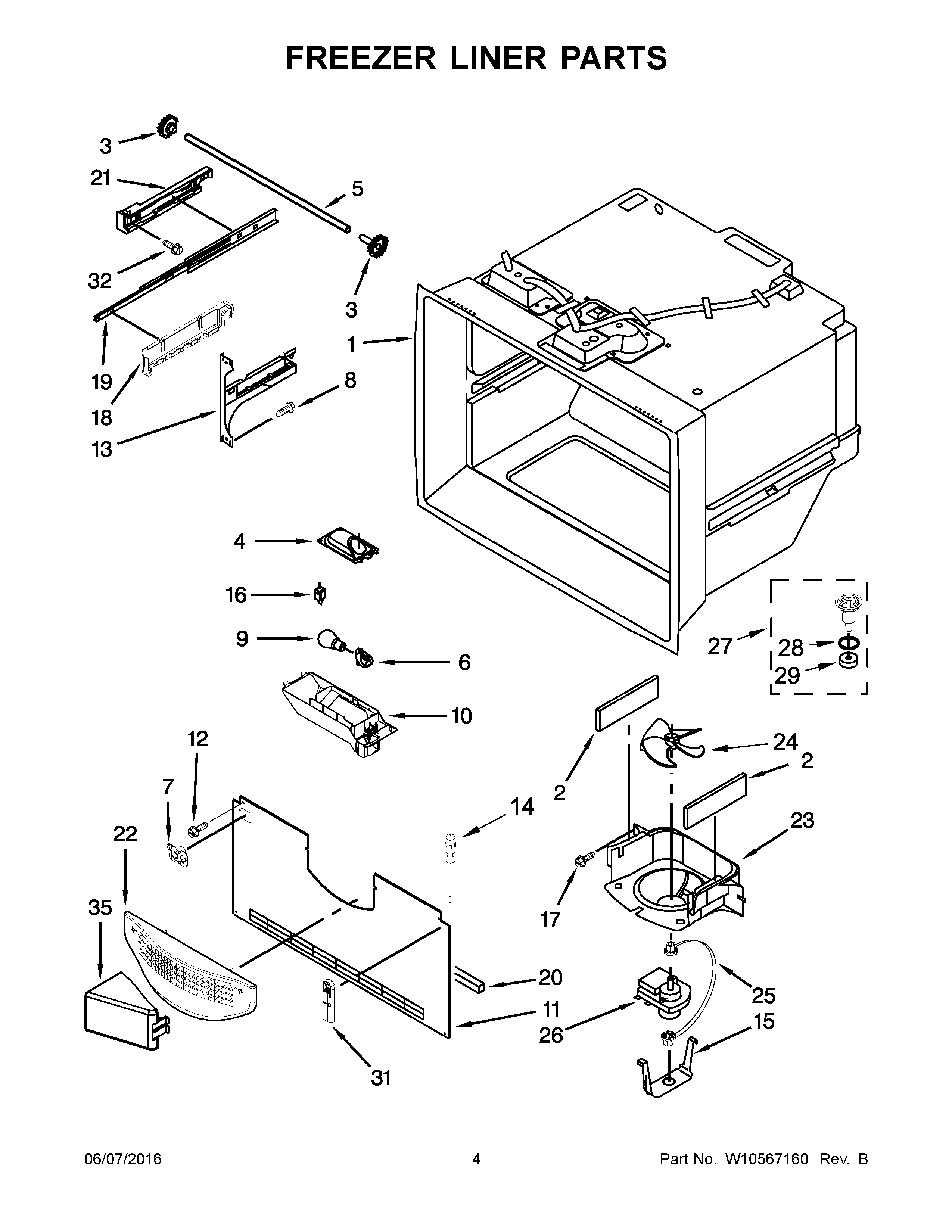

JFC2290VTB5 03 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY W10196195
NI	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12476401V
5	MAY W10802332
6	Socket, Light
7	Guide, Fill Tube
8	Screw (8)
9	BULB, LIGHT
10	MODULE, FREEZER LIGHT
11	MAY W10308420
12	SCREW (10)
13A	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MAY 12791419SP
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12990504
18A	CRADLE, BASKET (RIGHT HAND)
18	CRADLE, BASKET (LEFT HAND)
19	MAY 13055901N
20	GASKET, BOTTOM
21A	ADAPTER, SIDE (RIGHT HAND)
21	ADAPTER, SIDE (LEFT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY W10662407
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
35	MAY W10157765
