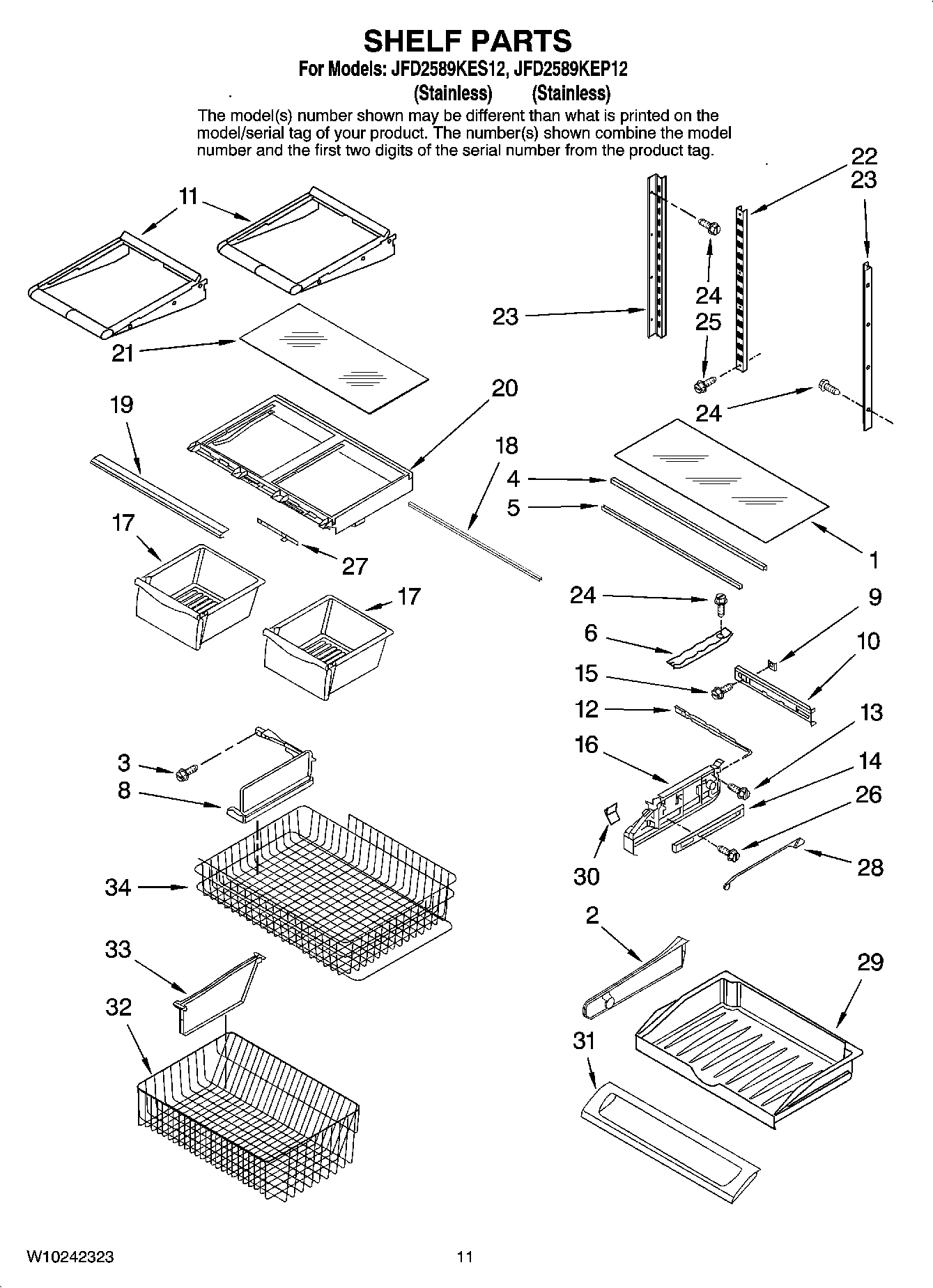

JFD2589KEP12 06 – SHELF PARTS

Products

Position	Product
1	MAY 67002761
2	WP67002759 Whirlpool Refrigerator Divider
3	MAY 67006608
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
8	Divider, Upper Basket
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	MAY 67005625
11	Shelf, Glide (4)
12	MAY 67003793
13	Screw (2)
14	Glide, Drawer(2)
16	Endcap, Pantry (Right)
16	W10874836 Whirlpool Endcap Assembly Left Hand and Right
17	WP67004515 Whirlpool Crisper Drawer
18	WP12642303WD Whirlpool Refrigerator Drawer Support
19	Trim, Crisper
20	WP67003854 Whirlpool Shelf Frame
21	WP67006704 Whirlpool Glass Crisper Cover
22	67001073 Whirlpool Refrigerator Center Ladder
23	67002489 Whirlpool Refrigerator Ladder L/R Side
24	MAY 67006400
25	W10709795 Whirlpool Refrigerator Screw
26	WP98165 Whirlpool Screw
27	MAY 67005864
28	WP67003795 Whirlpool Refrigerator Temperature Control Bar
29	WP67003531 Whirlpool Drawer Assembly
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32	WPW10503184 Whirlpool Refrigerator Freezer Basket
33	Divider, Lower Basket
34	67004987 Whirlpool Refrigerator Upper Basket
