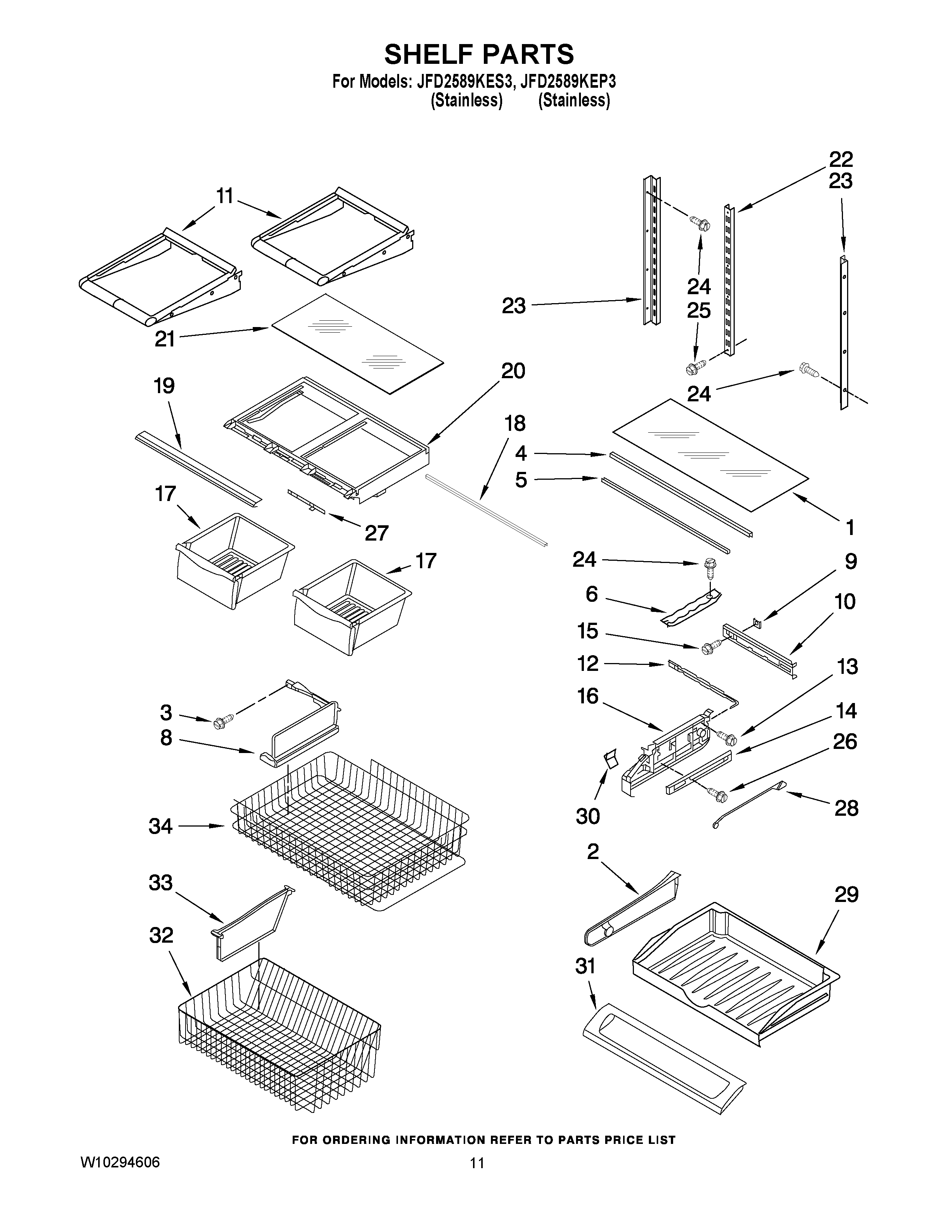

JFD2589KEP3 06 – SHELF PARTSadmin2025-04-26T09:04:03+00:00JFD2589KEP3 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | GLASS, PANTRY |
| 2 | DIVIDER, PANTRY DRAWER |
| 3 | MAY 12990601 |
| 4 | MAY 12655902SP |
| 5 | MAY 12227305WD |
| 6 | TRACK, PANTRY |
| 8 | Divider, Upper Basket |
| 9 | MAY 12656901 |
| 10 | MAY 12656202 |
| 11 | SHELF, GLIDE (4) |
| 12 | SLIDE, TEMPERATURE |
| 13 | SCREW (2) |
| 14 | MAY 13058101V |
| 16 | ENDCAP, PANTRY (LEFT) |
| 16 | MAY 12656023 |
| 17 | MAY 12804601SP |
| 18 | Brace, Crisper (2) |
| 19 | MAY W10231487 |
| 20 | FRAME, CRISPER (2) |
| 21 | MAY 12204824 |
| 22 | MAY W10273463 |
| 23 | MAY W10251971 |
| 24 | MAY 12990513 |
| 25 | MAY 12990515 |
| 26 | MAY 12990504 |
| 27 | MAY 12530805SP |
| 28 | ROD, TEMPERATURE CONTROL |
| 29 | MAY 12731302 |
| 30 | MAY 12655204V |
| 31 | DOOR, PANTRY DRAWER |
| 32 | MAY 13016003 |
| 33 | DIVIDER, BASKET LOWER |
| 34 | MAY 12896403 |
