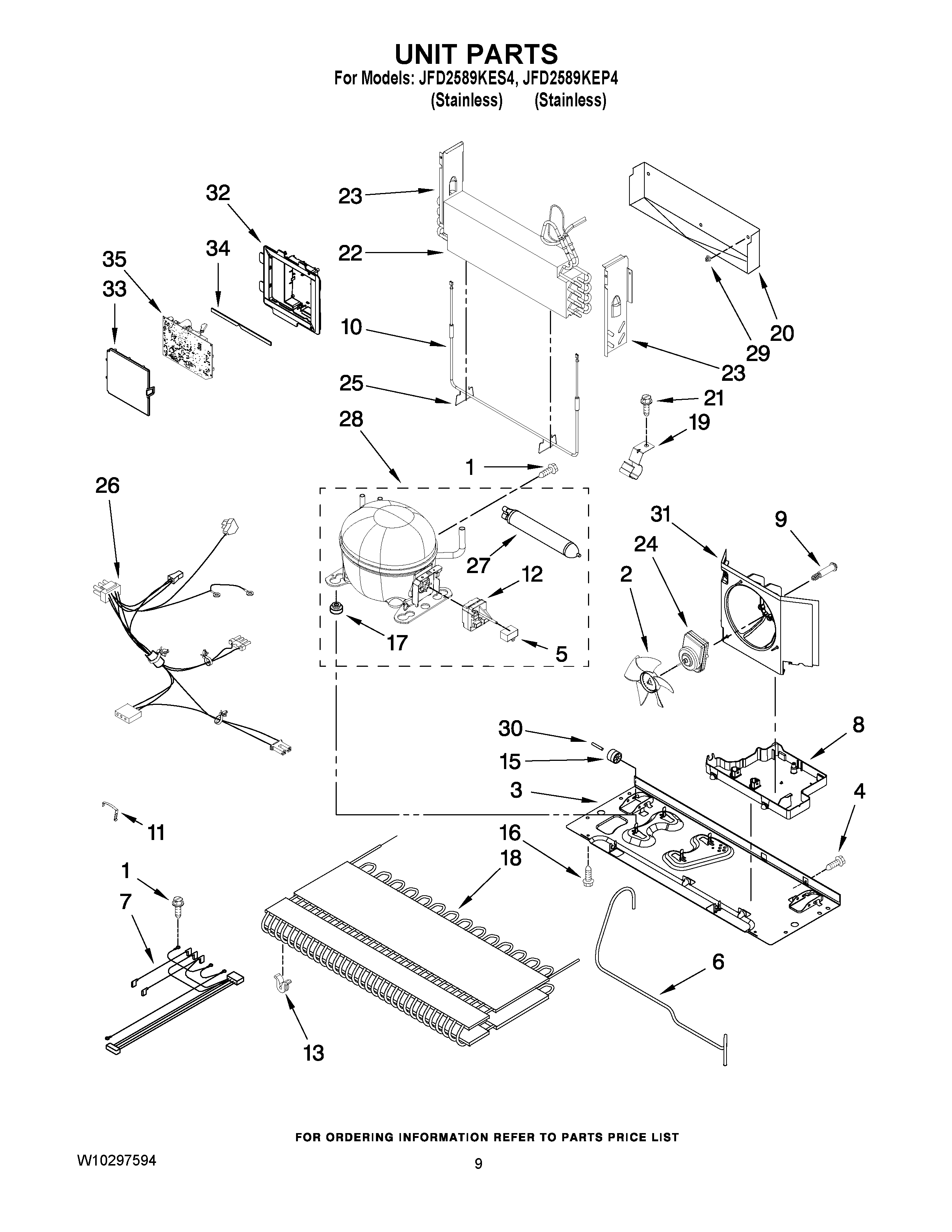

JFD2589KEP4 05 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10233569
7	MAY W10280418
8	MAY W10296785
9	MAY W10216919
10	EVAPORATOR HEATER
11	MAY W10174384
12	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
13	GROMMET, COND (4)
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135026
19	MAY 10547003
20	MAY 12225403WD
21	MAY 12990701
22	MAY 12726403
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY 12825101
25	W11673433 Whirlpool Clip
26	MAY W10234025
27	Drier
28	MAY W10164016
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	MAY W10257665
33	LID, HV BOX
34	GASKET-HV BOX
35	BOARD, CONTROL
