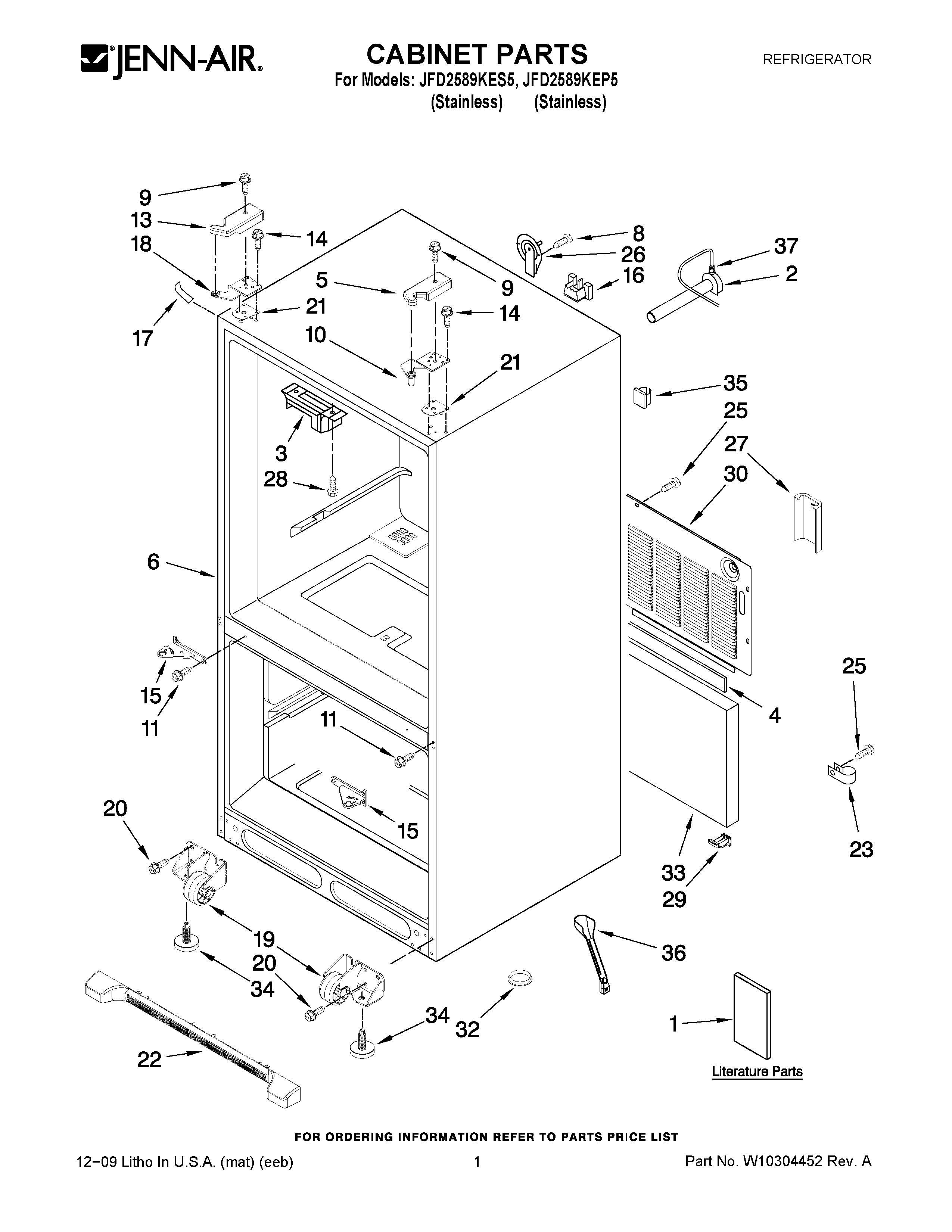

JFD2589KEP5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10215644
1	MAY W10279334
1	Owners Manual
2	MAY 10463203SP
3	Block, Pivot
4	MAY B5759655
5	MAY 12684202B
6	LINER (NOT A SERVICEABLE PART)
8	MAY 12990504
9	MAY 12992602
10	Hinge, Top
11	SCREW (6)
13	MAY 12684201B
14	SCREW (6)
15	HINGE, CENTER (BLACK, LEFT)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12777701
17	COVER, CORNER (BLACK)
18	Hinge, Top Left
19	ROLLER ASSY. (FRONT) (RIGHT)
19	ROLLER ASSY. (FRONT) (LEFT)
20	Screw (8)
21	MAY 12579702
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
23	W10833902 Whirlpool Refrigerator Clamp
25	SCREW (10)
26	MAY 12726003
27	GUARD-WATER VALVE
28	SCREW (2)
29	MAY 12831101
30	MAY W10211855
32	A3076901 Whirlpool Refrigerator Plug
33	Insulation, Sound
34	Foot Brake (2)
35	WPM0104106 Whirlpool Refrigerator Clip
36	MAY W10210988
37	CLIP
