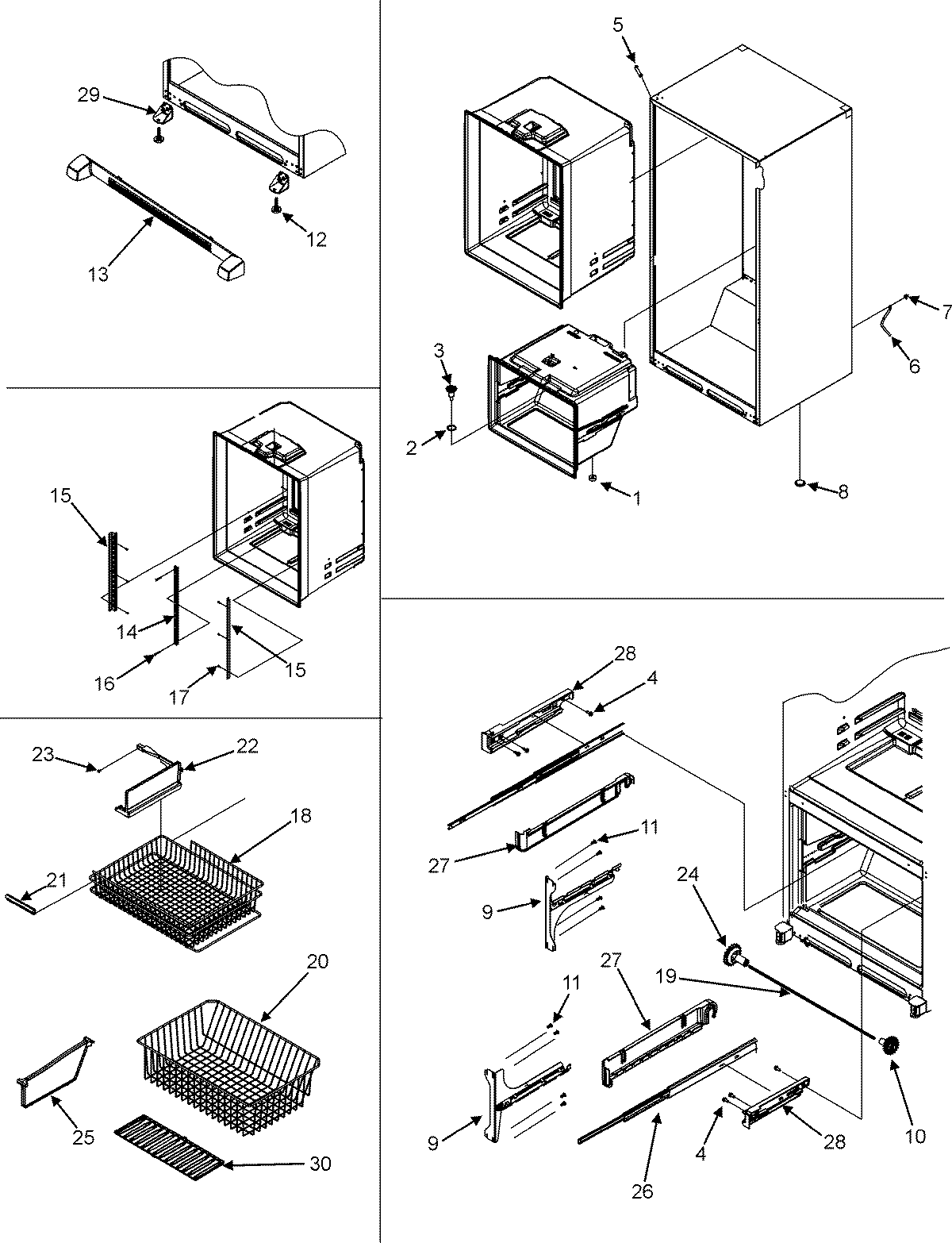

JFD2589KES 09 – INTERIOR CABINET/TOE GRILLE/FRZ SHELVES

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4Screw (6)
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9BRACKET, DRAWER SLIDE (LT)
9BRACKET, DRAWER SLIDE (RT)
10GEAR (RT)
11Screw (8)
12W11177593 Whirlpool Leveling Feet
13WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
1567002489 Whirlpool Refrigerator Ladder L/R Side
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
1867004987 Whirlpool Refrigerator Upper Basket
19W11028221 Whirlpool Refrigerator Shaft
20WPW10503184 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67006608
24GEAR (LT)
25Divider, Lower Basket
26W11658402 Whirlpool Drawer Slide Rail
27WPW10280608 Whirlpool Refrigerator Bracket
27WPW10280613 Whirlpool Refrigerator Bracket
28ADAPTER, SIDE (LT)
28ADAPTER, SIDE (RT)
2912906303WD Whirlpool Refrigerator Bracket
29MAY 67006491
30WP67006104 Whirlpool Refrigerator Tray
