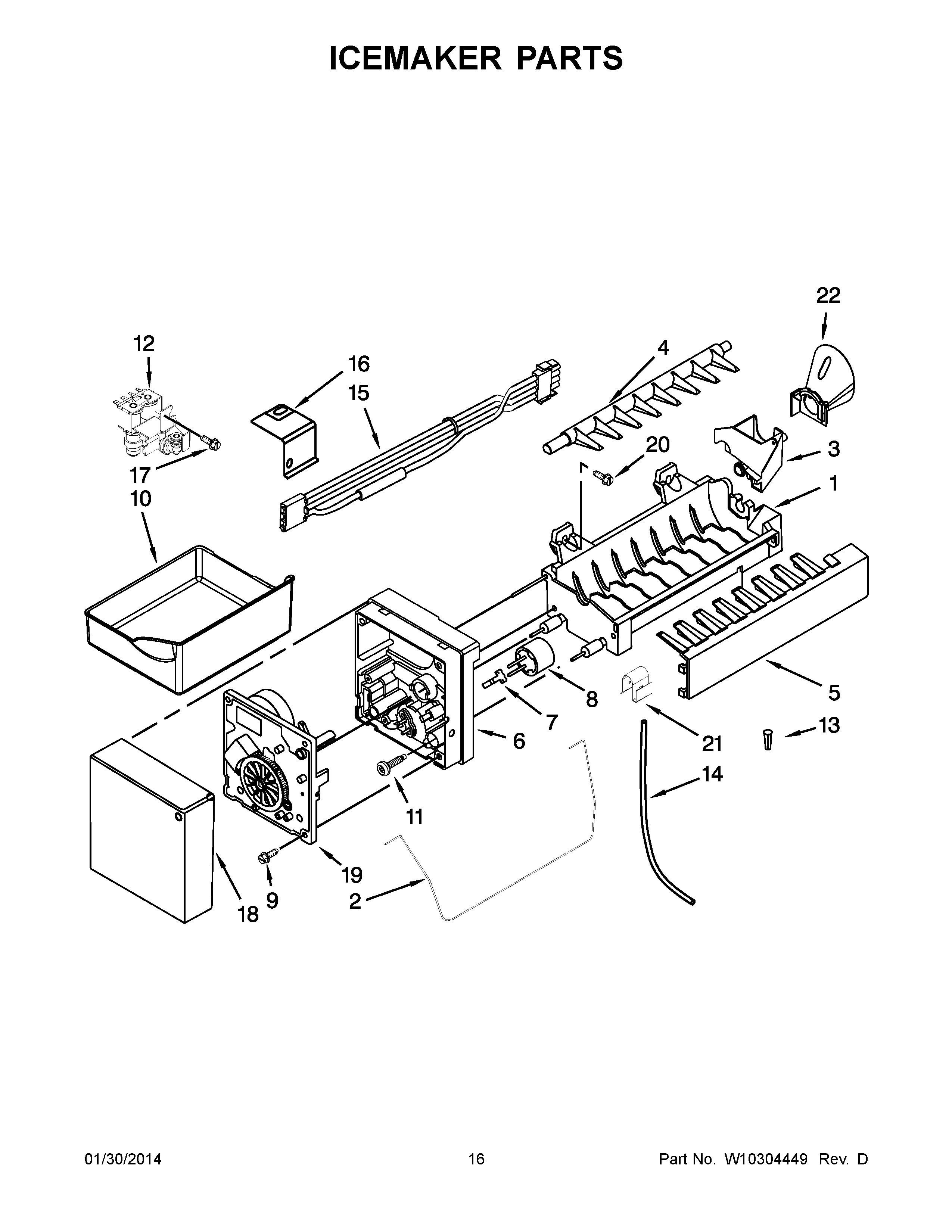

JFD2589KES2 09 – ICEMAKER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	W11033771 Whirlpool Refrigerator Coupling
1	MAY W10122527
2	ARM-SHUT
3	Cup, Fill
4	MAY 627843
5	MAY 2182124
6	MAY 2194712
7	MAY 2315522
8	Thermostat (Also Order 542369 Cement Alumilastic)
9	Screw (3)
10	WP67001255 Whirlpool Ice Bucket
11	MAY 8533917
12	WP67006531 Whirlpool Water Inlet Valve
13	MAY A3223101
14	Tubing, Plastic
15	HARNESS, ICEMAKER
16	MAY 2256086
17	MAY 67006662
18	WPW10289690 Whirlpool Ice Maker Cover
19	Module Assembly (Includes Items 21& 22)
20	MAY 489276
21	Clip
22	MAY 67005603
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
